Power supply control lamp - three-phase LK-713K LK-713K
local index:
API007FIFQ
Catalog No:
LK-713K
EAN code:
5908312596011
Price:
8,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

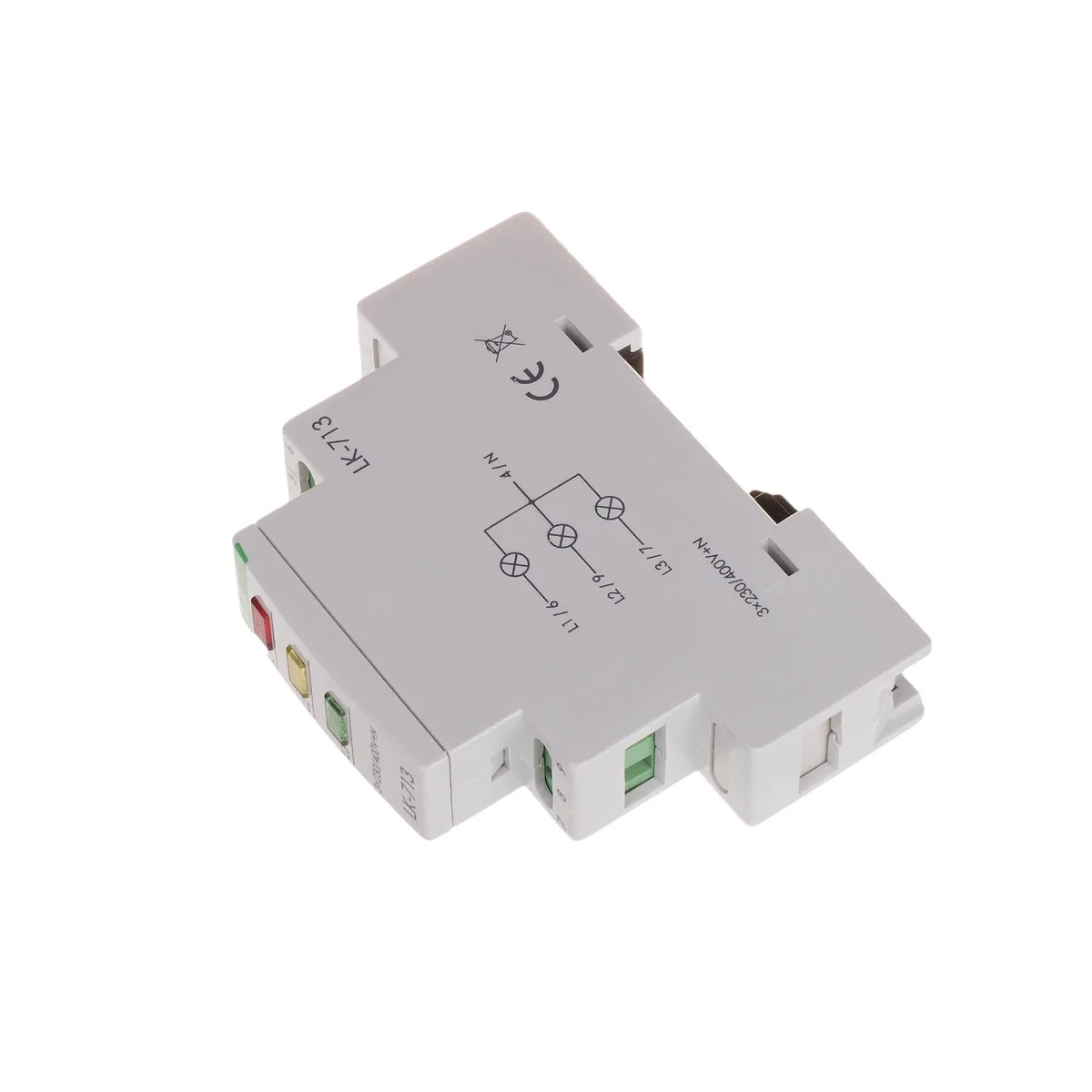

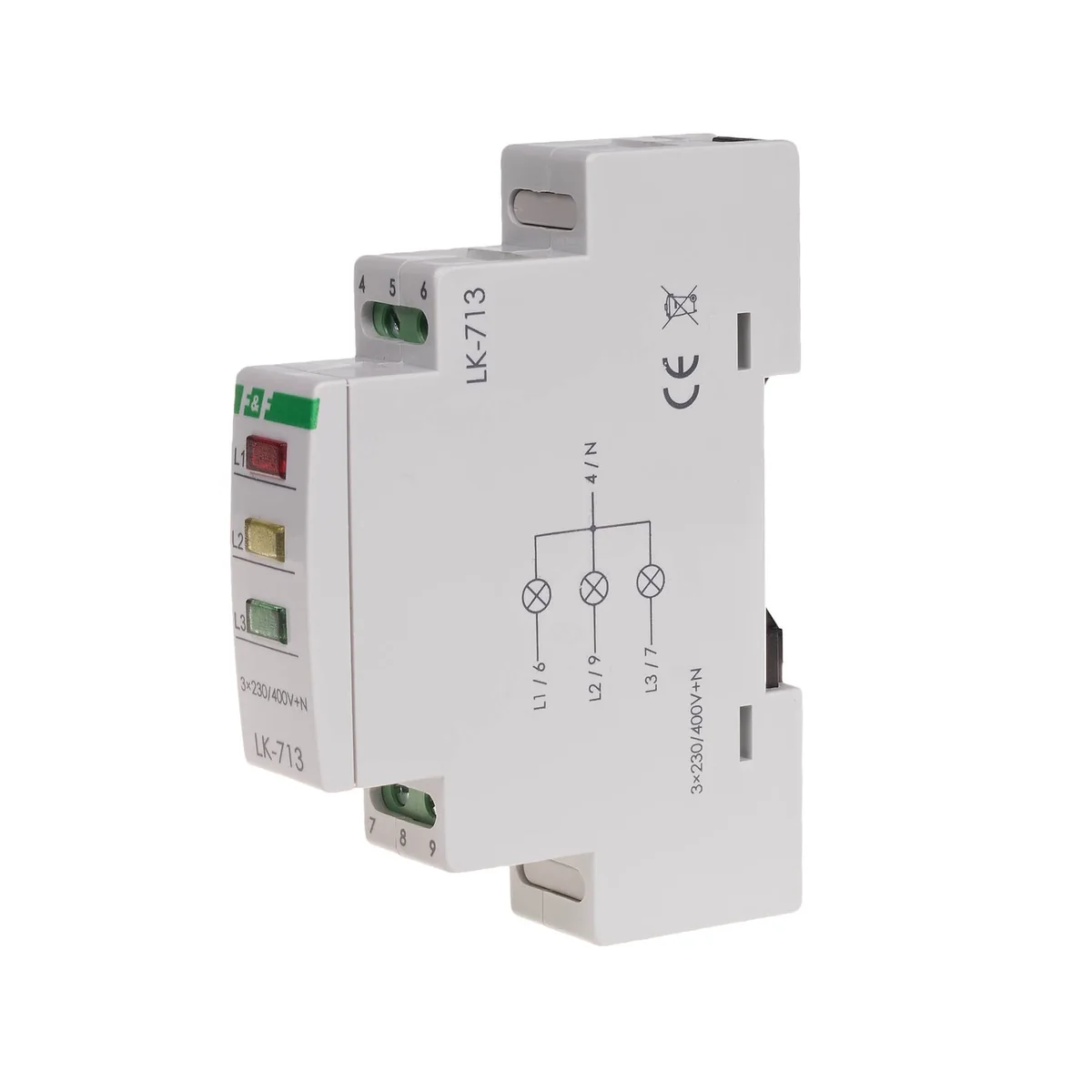

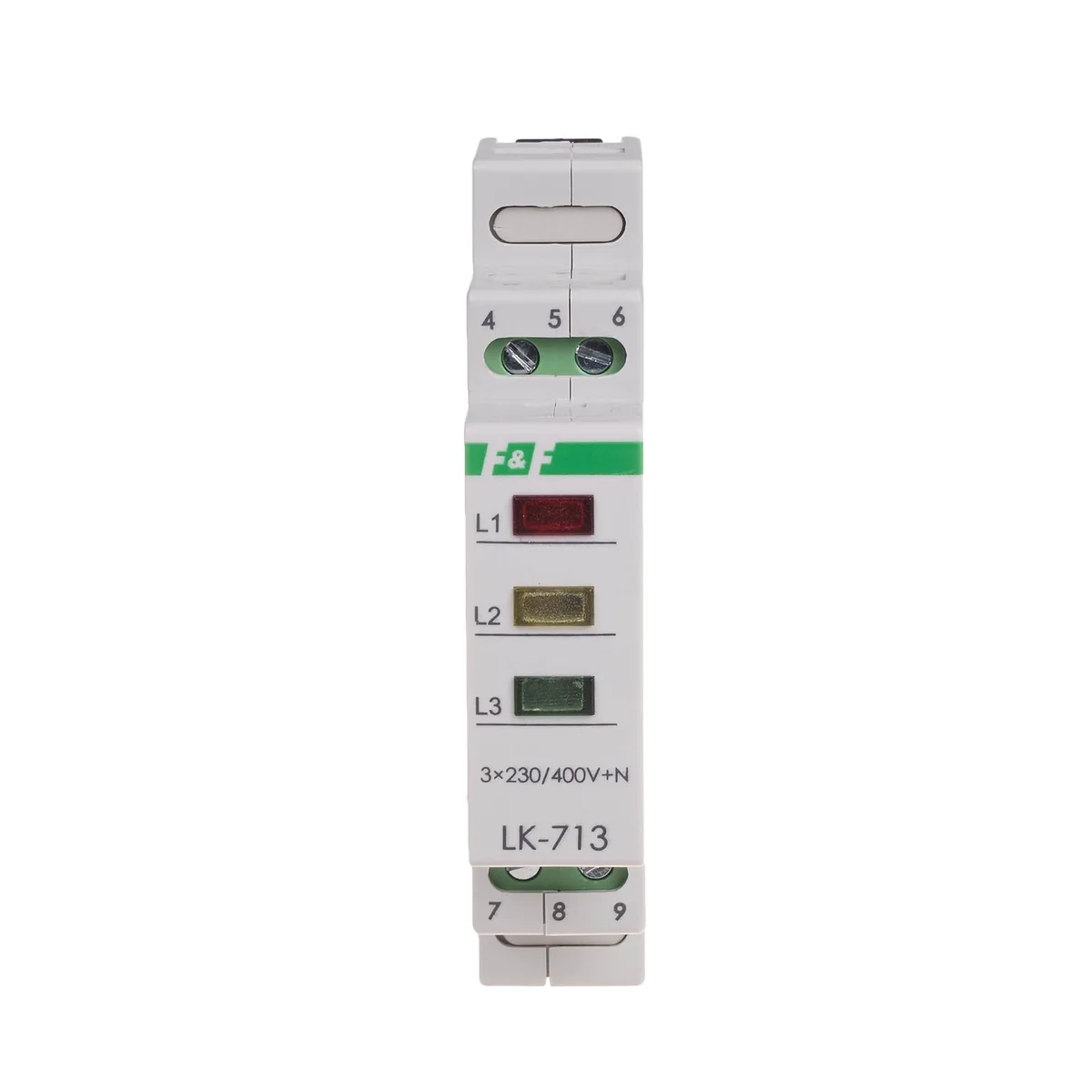

The LK-713 signaling lamp is used for optical signaling of the presence of voltage in individual phases of a three-phase network. The presence of voltage in a phase is indicated by the lighting of the appropriate LED connected to the circuit of this phase.
Technical data
-
Power [W]1.1
-
Rated voltage [V]230
-
Power indication3×LED
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
PKWIU27.40.24.0
-
InstallationOn the TH-35 rail
-
connectionScrew 2.5mm
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
Other technical data
-
Colour calotteOther
-
Lamp socketOther
-
Rated voltage230 V
-
Built-in depth65 mm
-
Lamp typeLED
-
Max. lamp power1.1 W
-
Voltage typeAC
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka | Karton |
| Quantity | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,043 | - |
| Width (m) | 0,019 | - |
| Length (m) | 0,095 | - |
| Depth (m) | 0,070 | - |
