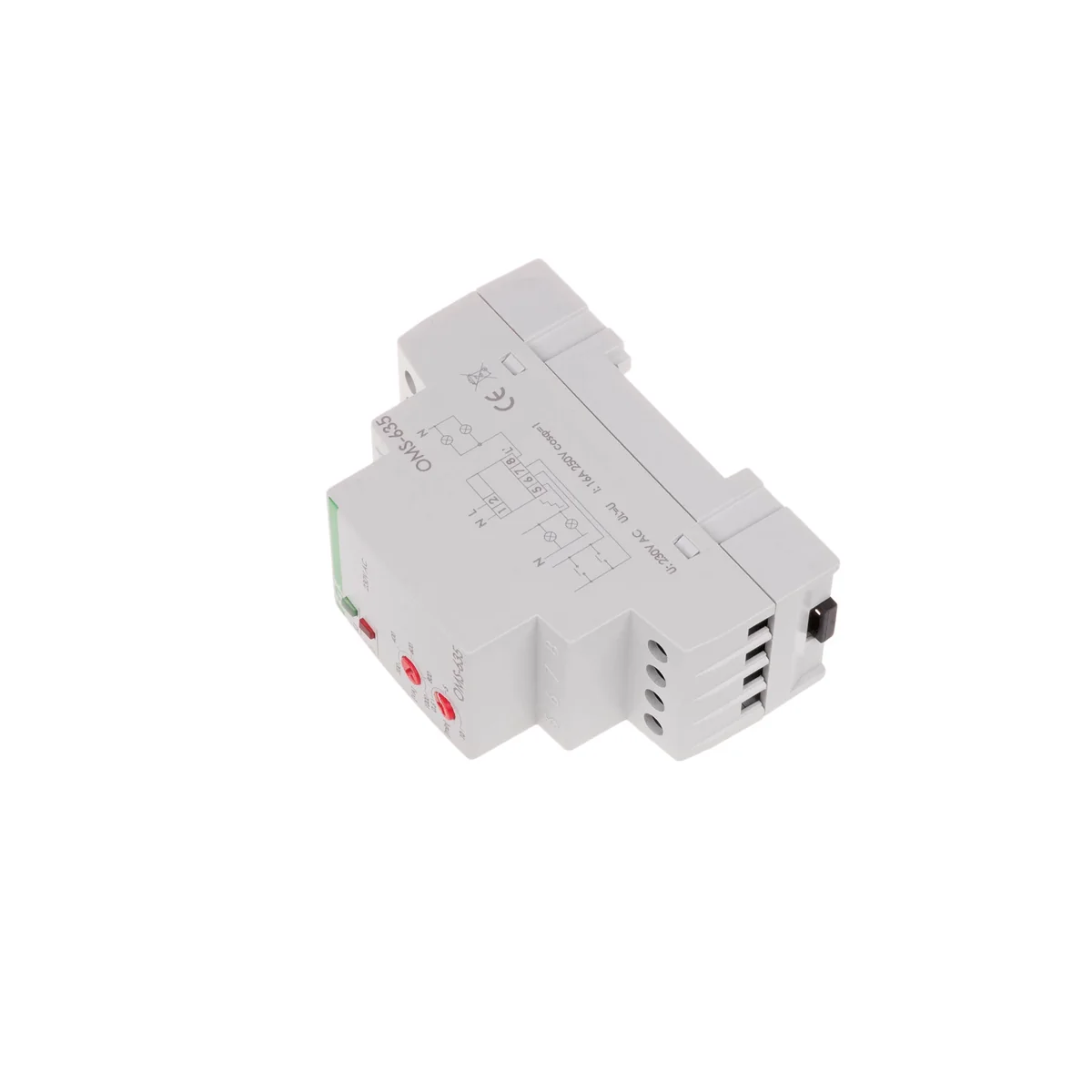

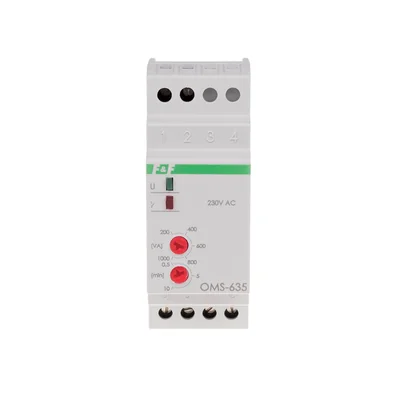

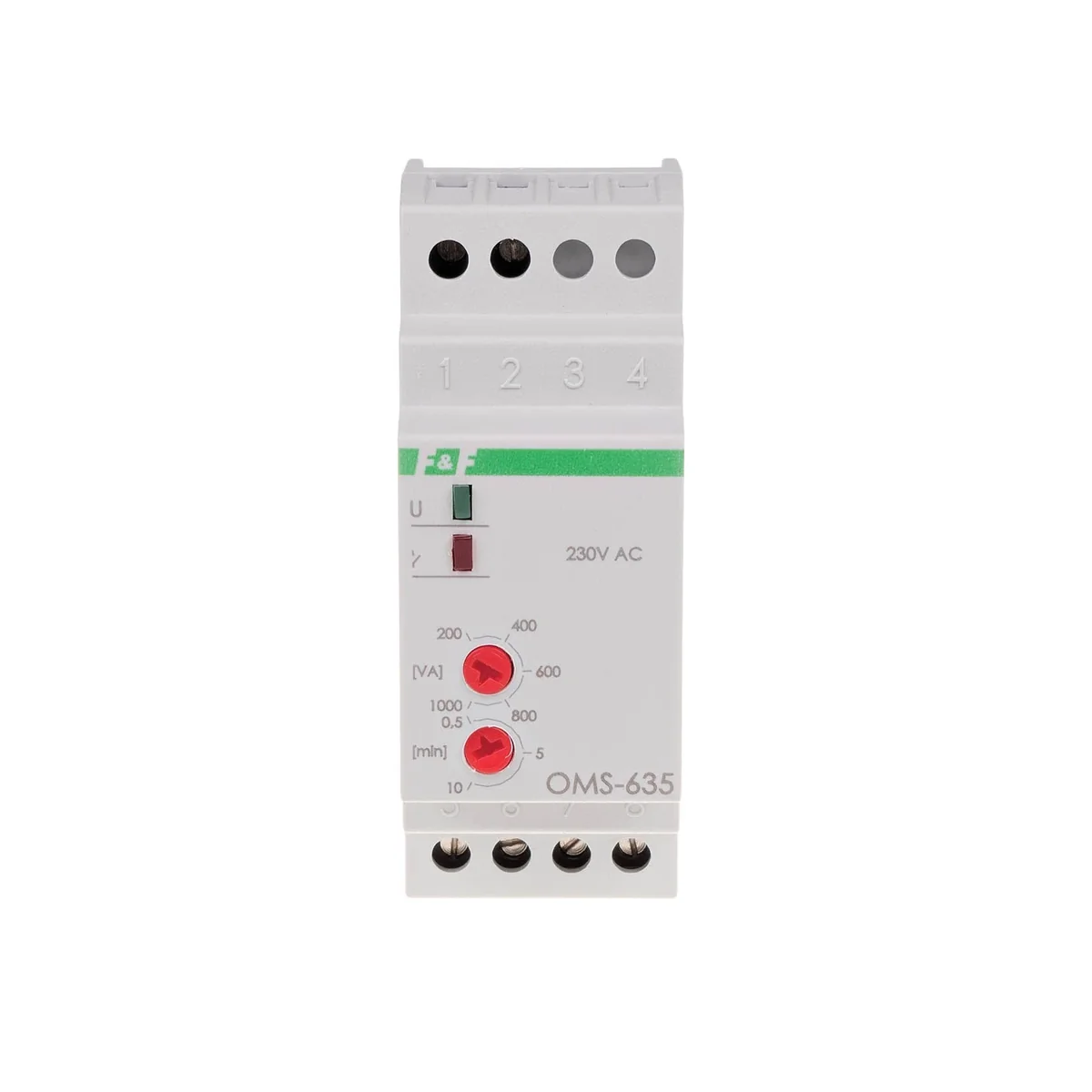

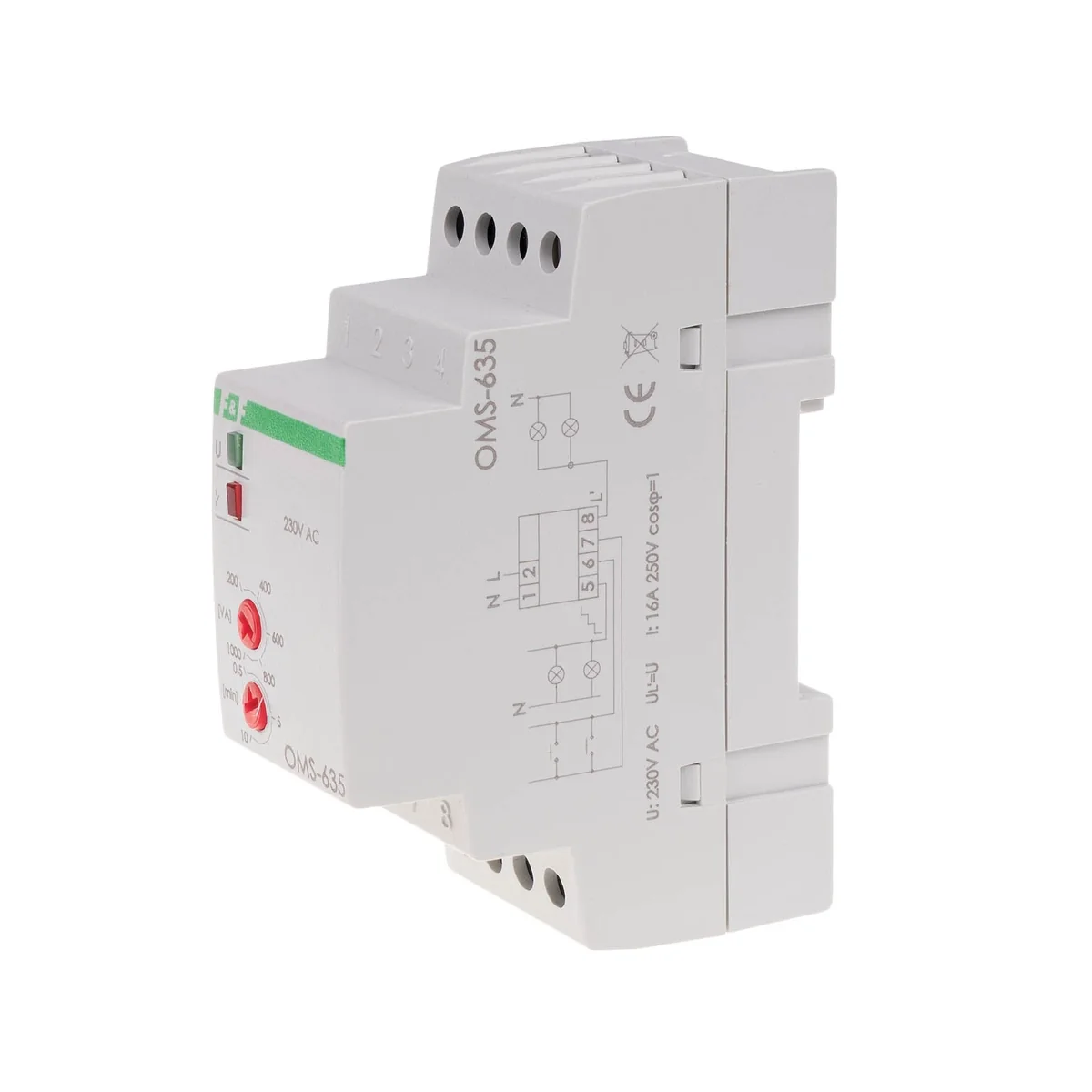

Power limiter + OMS-635 stair car OMS-635

local index:
APN105FIFQ
Catalog No:
OMS-635
EAN code:
5908312592099
Manufacturer: F&F
Power return time - factory setting [s]: thirty
Hysteresis [%]: 2
Power [W]: 0.8
Price:
32,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose
The OMS-635 power consumption limiter is used to keep the lighting of corridors, staircases or other objects on for a certain period of time, after which the lighting will be turned off automatically along with the installation. If the set value of the power consumed by the receivers in this circuit is exceeded, the power supply will be automatically disconnected. Operation
The limiter activated with a momentary (bell) switch maintains the lighting for the time set by the potentiometer. After the set time has elapsed, the limiter will turn off the lighting automatically. After turning off the lighting, we can turn it on again. The power limiter allows you to power the circuit when the total power of the receivers in the controlled circuit is lower than the one set on the limiter scale. Exceeding the set threshold of power consumption in the controlled circuit causes disconnection of power to this circuit. Power will resume automatically after 30 seconds. If the value of the consumed power is still greater than the set value, the power supply to the circuit will be disconnected again. Note!
The power limiter should not be used in systems with electronic ignition (energy-saving fluorescent lamps), switching power supplies and other devices generating higher harmonics from 3rd and up< /p>

Lighting time - adjustable 0.5-10min



Technical data

  • Power return time - factory setting [s]
    thirty
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • load current [A]
    <16
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • PKWIU
    27.12.24.0
  • Hysteresis [%]
    2
  • Installation
    On the TH-35 rail
  • Tripping delay
    1-2 sec
  • Actuation threshold - adjustable [W]
    200-1000
  • Working temperature [°C]
    From -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.15

Other technical data

  • Nominal measuring voltage
    230 V
  • Nominal operating current
    16 A
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Krótkozwłoczny
    No
  • Frequency measuring voltage
    50 Hz
  • Number of phases
    1
  • Voltage type
    AC

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,123
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
