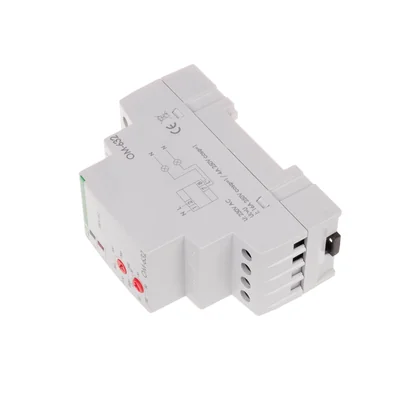

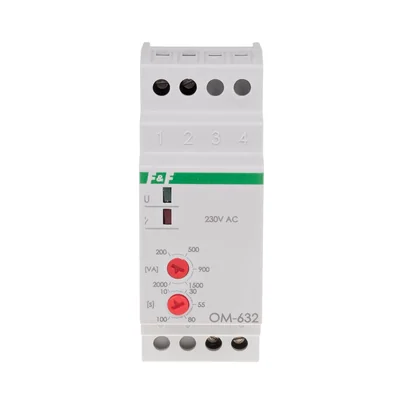

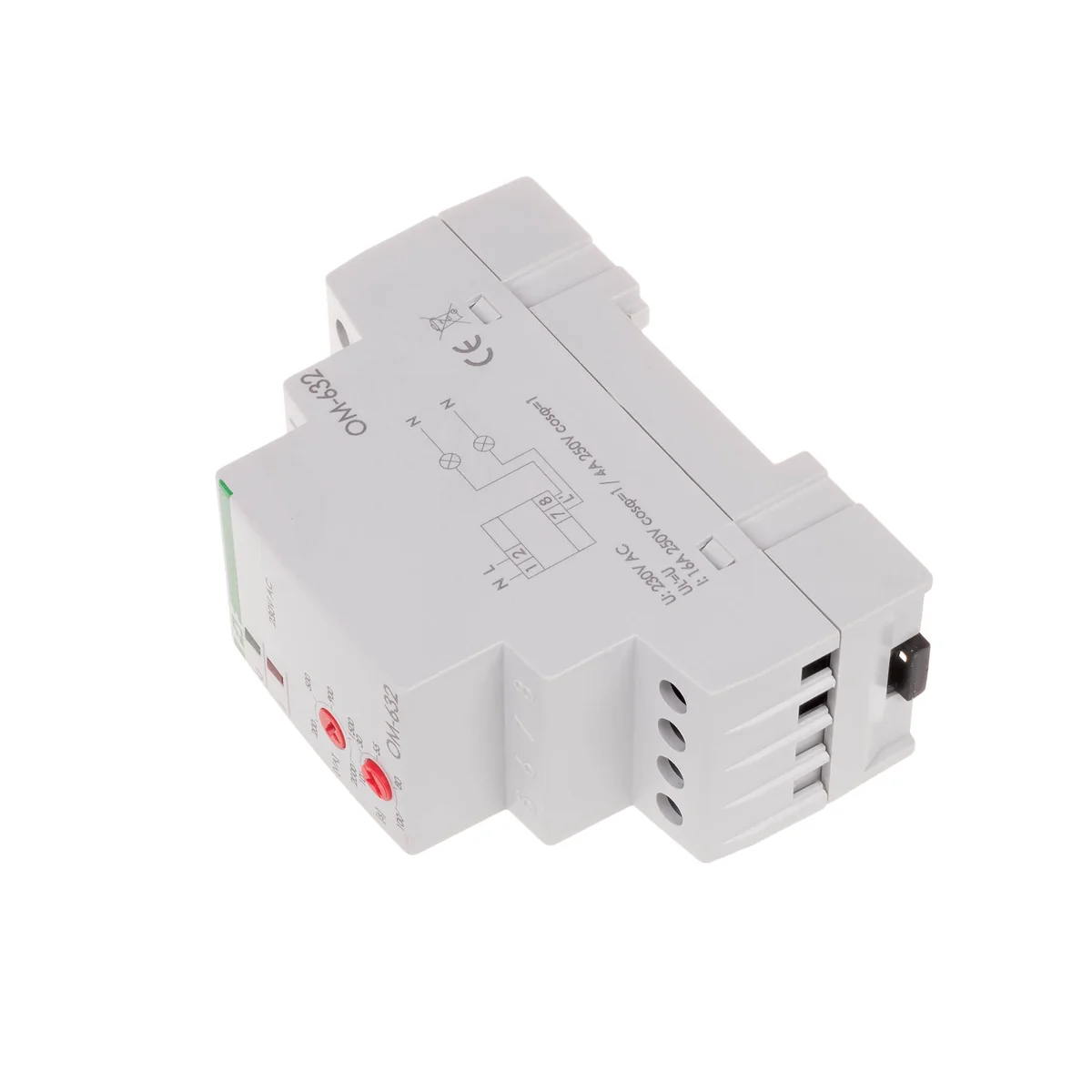

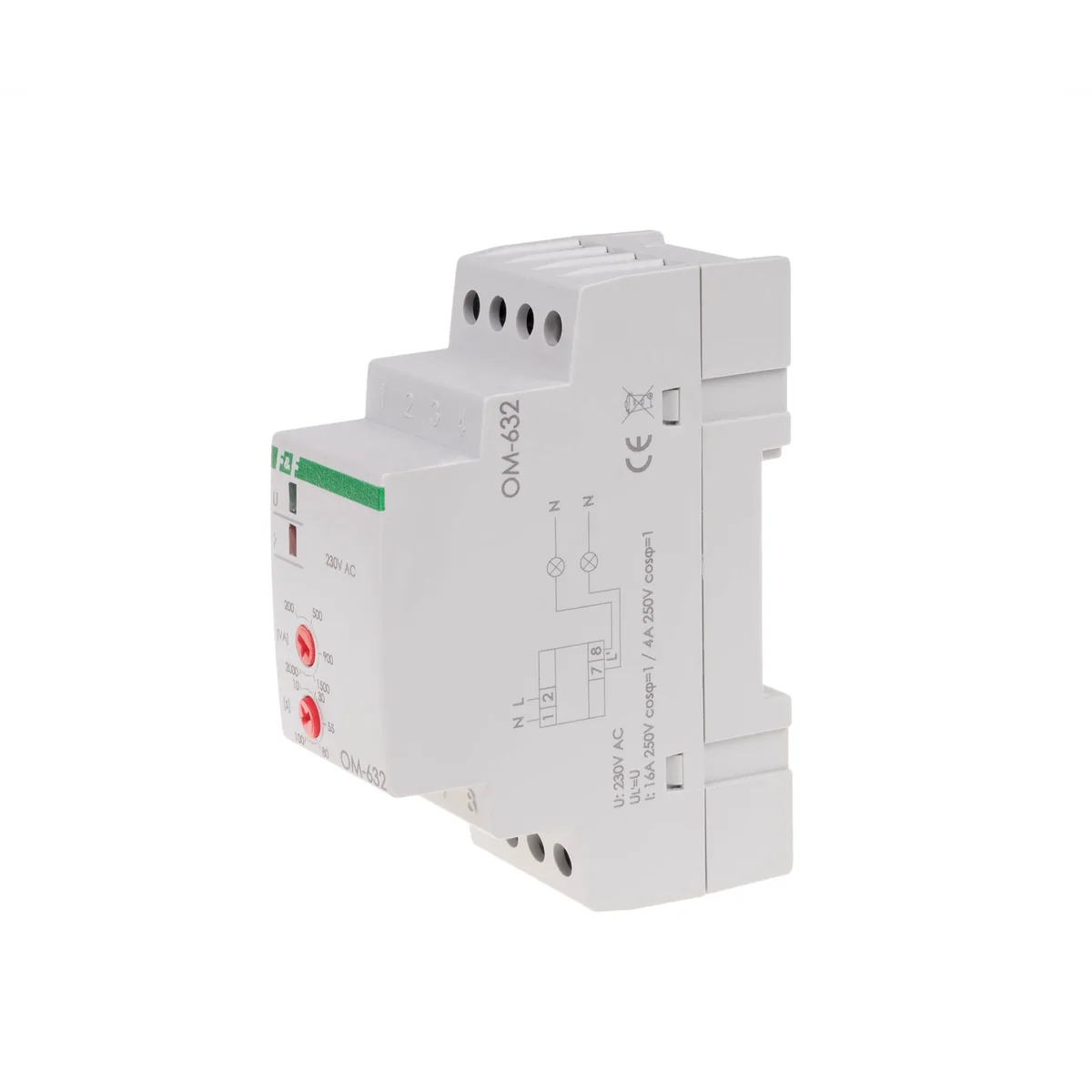

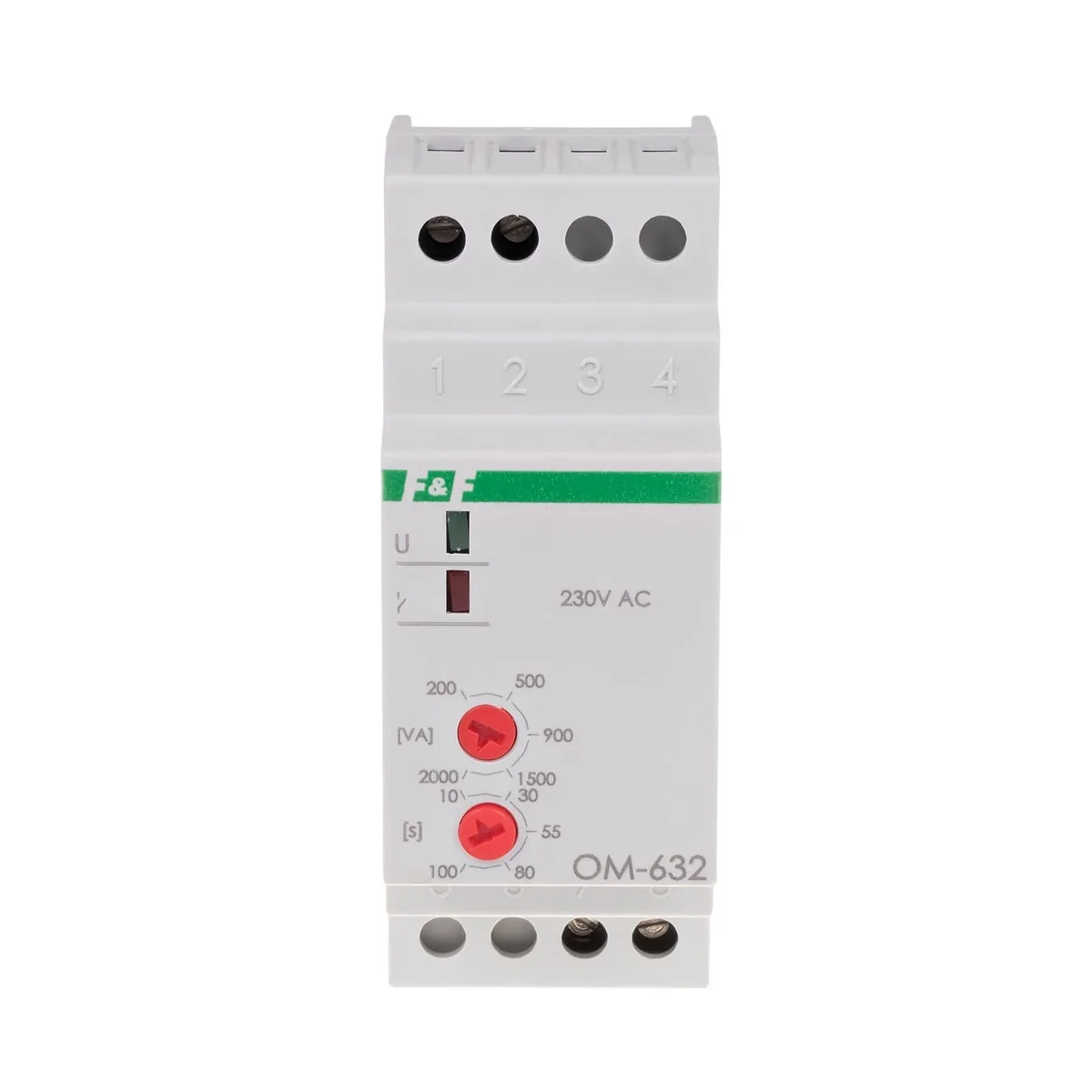

Power limiter for cooperation with OM-632 current converters OM-632

local index:
APN106FIFQ
Catalog No:
OM-632
EAN code:
5908312591719
Manufacturer: F&F
Power recovery time [s]: 10-100
Hysteresis [%]: 2
Power [W]: 0.8
Price:
30,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 16 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The power consumption limiter is used to automatically disconnect the power supply to the electrical installation circuit when the set value of power consumed by the receivers in this circuit is exceeded. Note!
Operation< br />The power limiter allows you to supply the circuit when the total power of the receivers in the controlled circuit is lower than the one set on the limiter scale. Exceeding the set power consumption threshold in the controlled circuit disconnects the power supply to this circuit. Power will resume automatically after the set time. If the value of the consumed power is still greater than the set value, the power supply to the circuit will be disconnected again. The limiter has a system that delays its operation (1÷2sec), which prevents the power from being turned off in the event of temporary exceeding of the set power.

Technical data

  • Power recovery time [s]
    10-100
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • load current [A]
    <16
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • PKWIU
    27.12.24.0
  • Hysteresis [%]
    2
  • Installation
    On the TH-35 rail
  • Tripping delay
    1-2 sec
  • Actuation threshold - adjustable [W]
    200-2000
  • Working temperature [°C]
    From -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.26

Other technical data

  • Nominal measuring voltage
    230 V
  • Nominal operating current
    16 A
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Krótkozwłoczny
    No
  • Frequency measuring voltage
    50 Hz
  • Number of phases
    1
  • Voltage type
    AC

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,109
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
