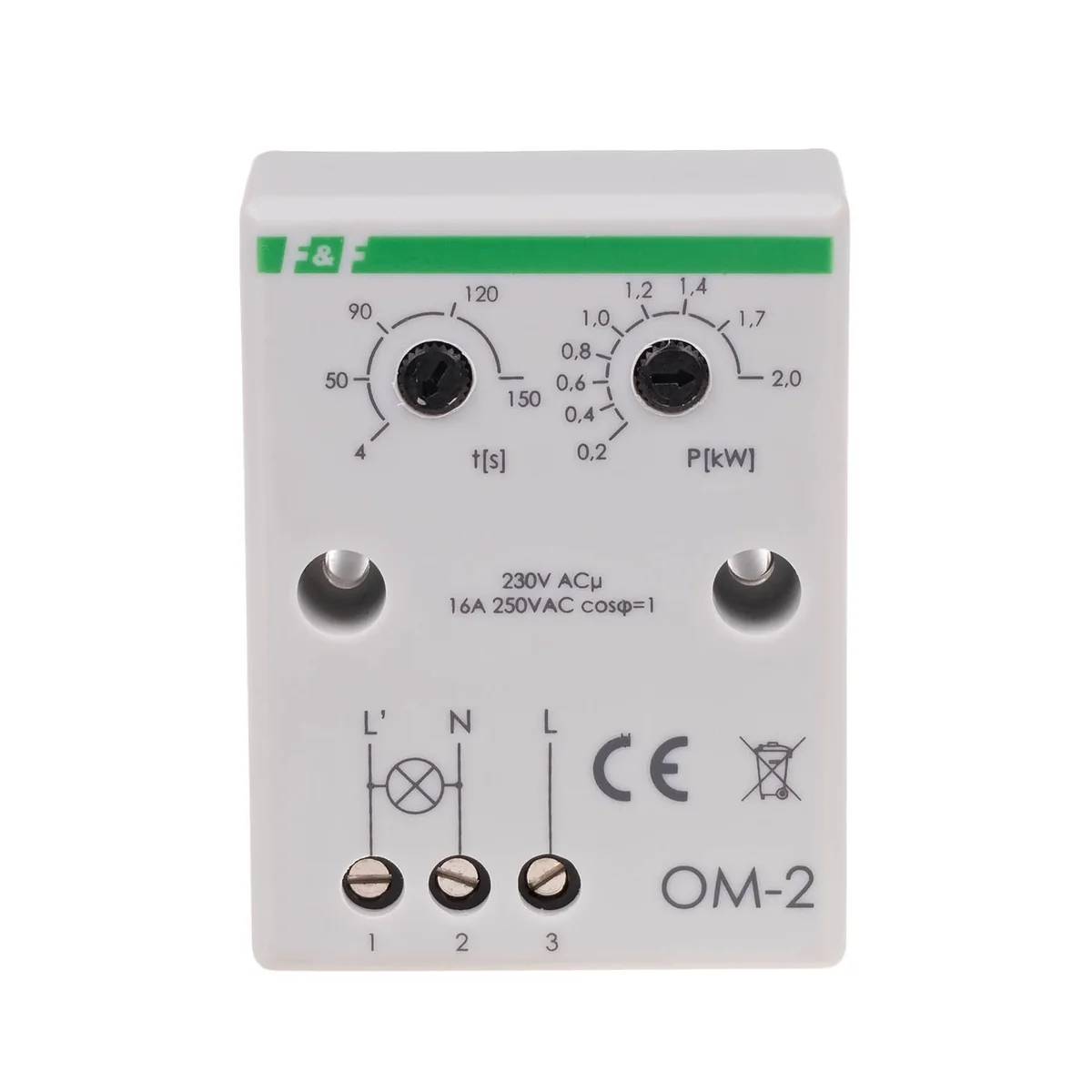

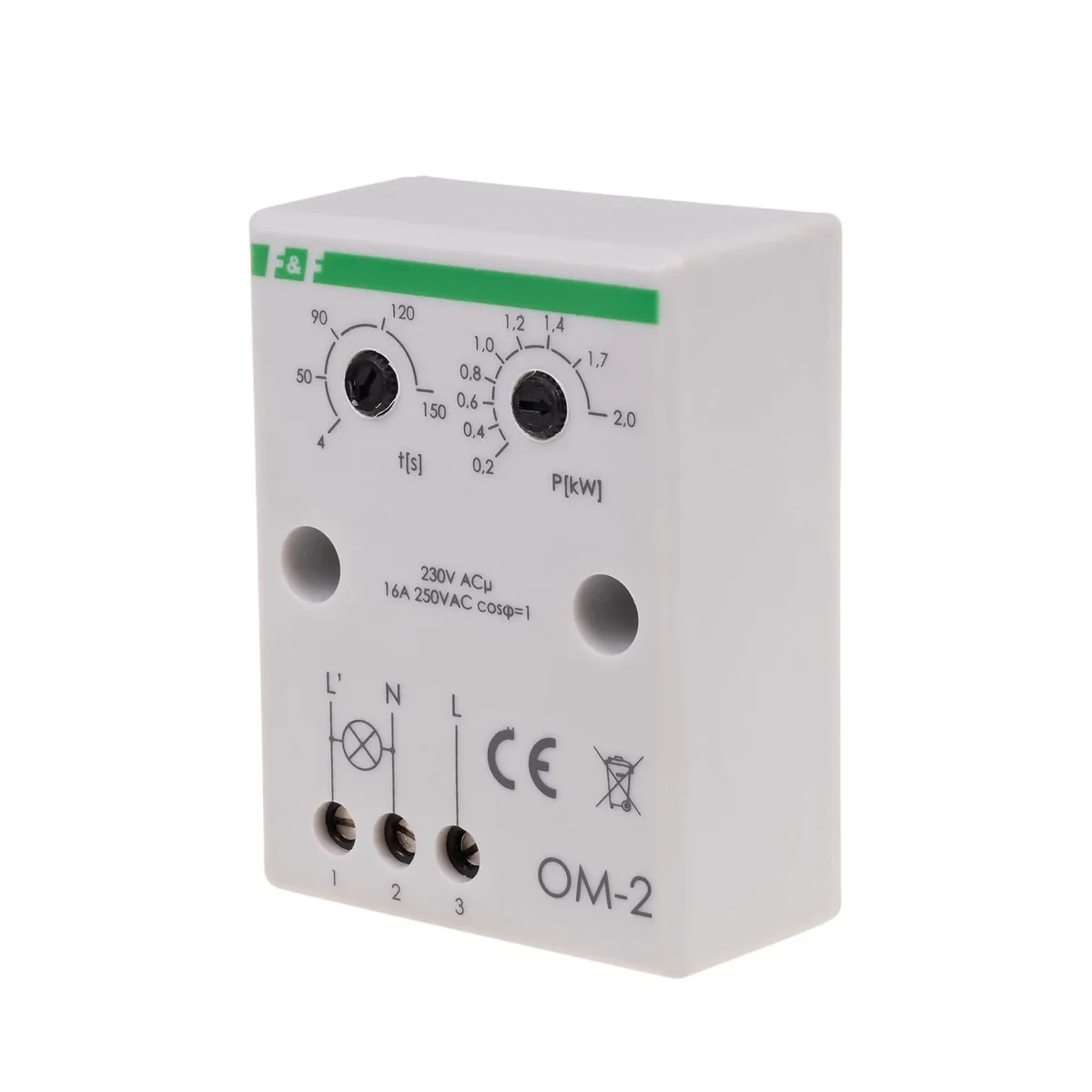

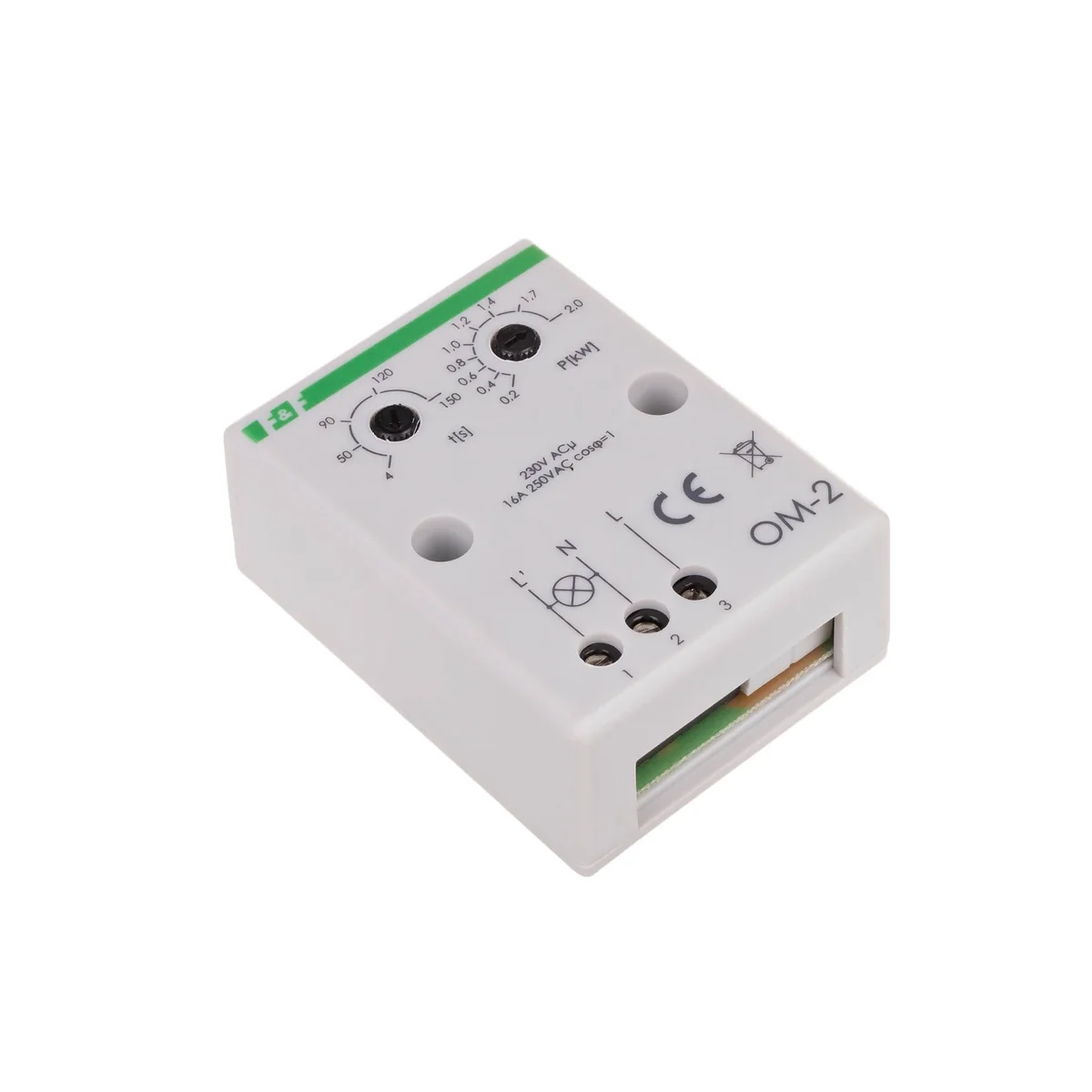

Power limiter - adjustable return time OM-2 OM-2

local index:
APN114FIFQ
Catalog No:
OM-2
EAN code:
5908312592181
Manufacturer: F&F
Power recovery time [s]: 4-150sec
Depth [mm]: 26
Hysteresis: 0.02
Price:
25,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The power consumption limiter is used to automatically disconnect the power supply to the electrical installation circuit in the event of exceeding the set value of power consumed by the receivers in this circuit. Operation
The power limiter allows you to supply the circuit when the total power of the receivers in the controlled circuit is lower than the one set on the limiter scale. Exceeding the set threshold of power consumption in the controlled circuit disconnects the power supply to this circuit. Power will resume automatically after the set time. If the value of the consumed power is still greater than the set value, the power supply to the circuit will be disconnected again. The limiter has a system that delays its operation (1, 5÷2sec), which prevents the power supply from being turned off in the event of temporary exceeding of the set power.

Attention!
The power limiter should not be used in systems with electronic ignition (energy-saving fluorescent lamps), switched-mode power supplies and other devices generating harmonics higher than 3rd.

Technical data

  • Power recovery time [s]
    4-150sec
  • Hysteresis
    0.02
  • Rated voltage [V]
    230
  • load current [A]
    <16
  • connection
    2.5mm screw terminals
  • Width [mm]
    67
  • Height [mm]
    50
  • Package width [mm]
    67
  • PKWIU
    27.12.24.0
  • Depth [mm]
    26
  • Power [W]
    0.8
  • Tripping delay [s]
    1.5-2
  • Actuation threshold - adjustable
    200-2000W
  • Mounting method
    For screws
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    50
  • Package weight [kg]
    0.1

Other technical data

  • Nominal measuring voltage
    230 V
  • Nominal operating current
    16 A
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Krótkozwłoczny
    No
  • Frequency measuring voltage
    50 Hz
  • Number of phases
    1
  • Voltage type
    AC

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,079
Width (m) 0,031
Length (m) 0,095
Depth (m) 0,070
