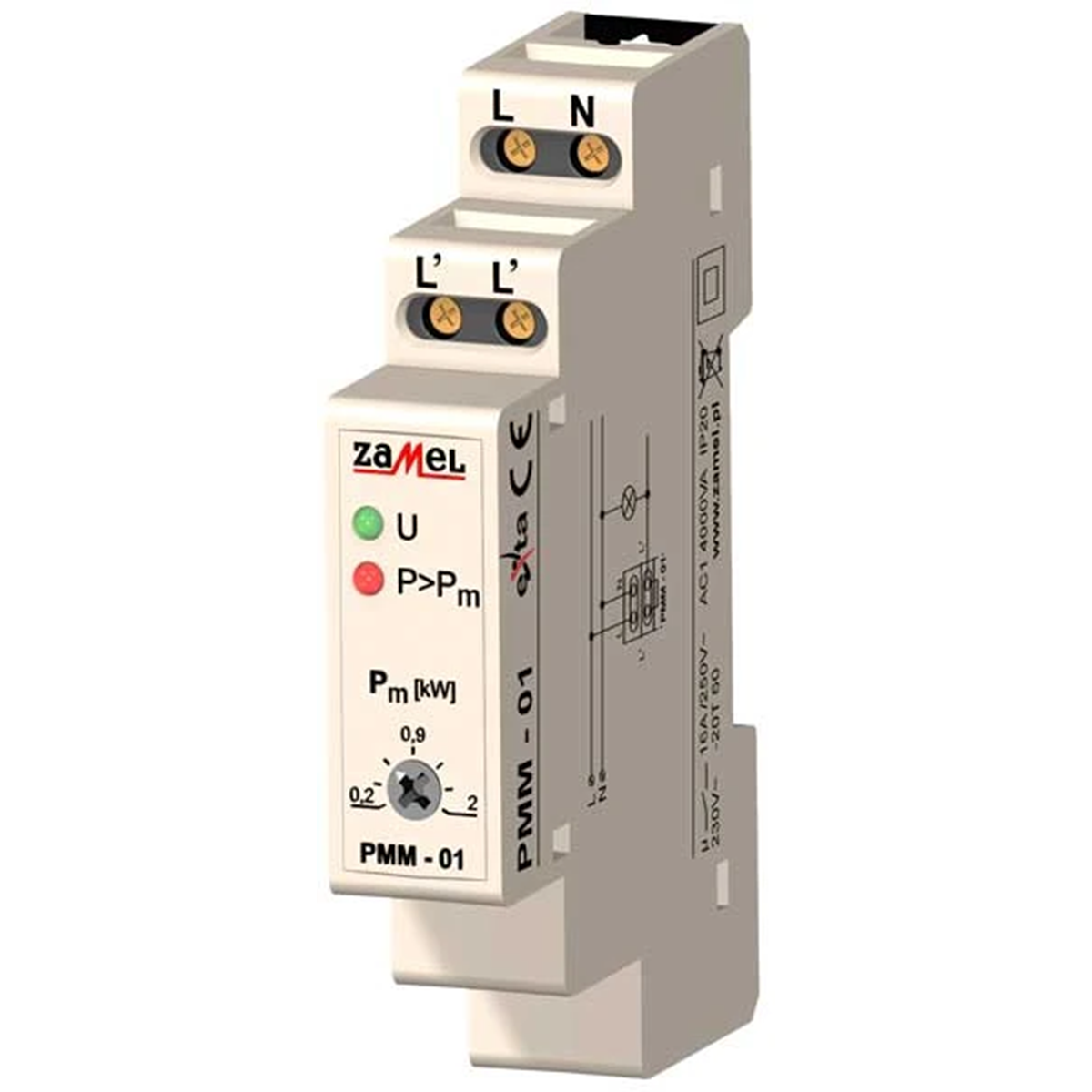

Power limiter 230V AC 0, 2-2kW TYPE: PMM-01 EXT10000102

local index:
APN001ZAME
Catalog No:
EXT10000102
EAN code:
5903669024880
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
29,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PMM01 power limiter is used to automatically switch off the power supply in the supervised circuit when the set value of power consumed by the receivers is exceeded. The power value can be smoothly adjusted in the range from 0.2 to 2 kW using a potentiometer. Successive power measurement cycles are carried out every 40 s in the case of switching off the receivers.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Level of security
    IP20
  • Width [mm]
    17.5
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Contact
    1NO
  • Type
    limiters
  • PKWIU
    27.12.40.0
