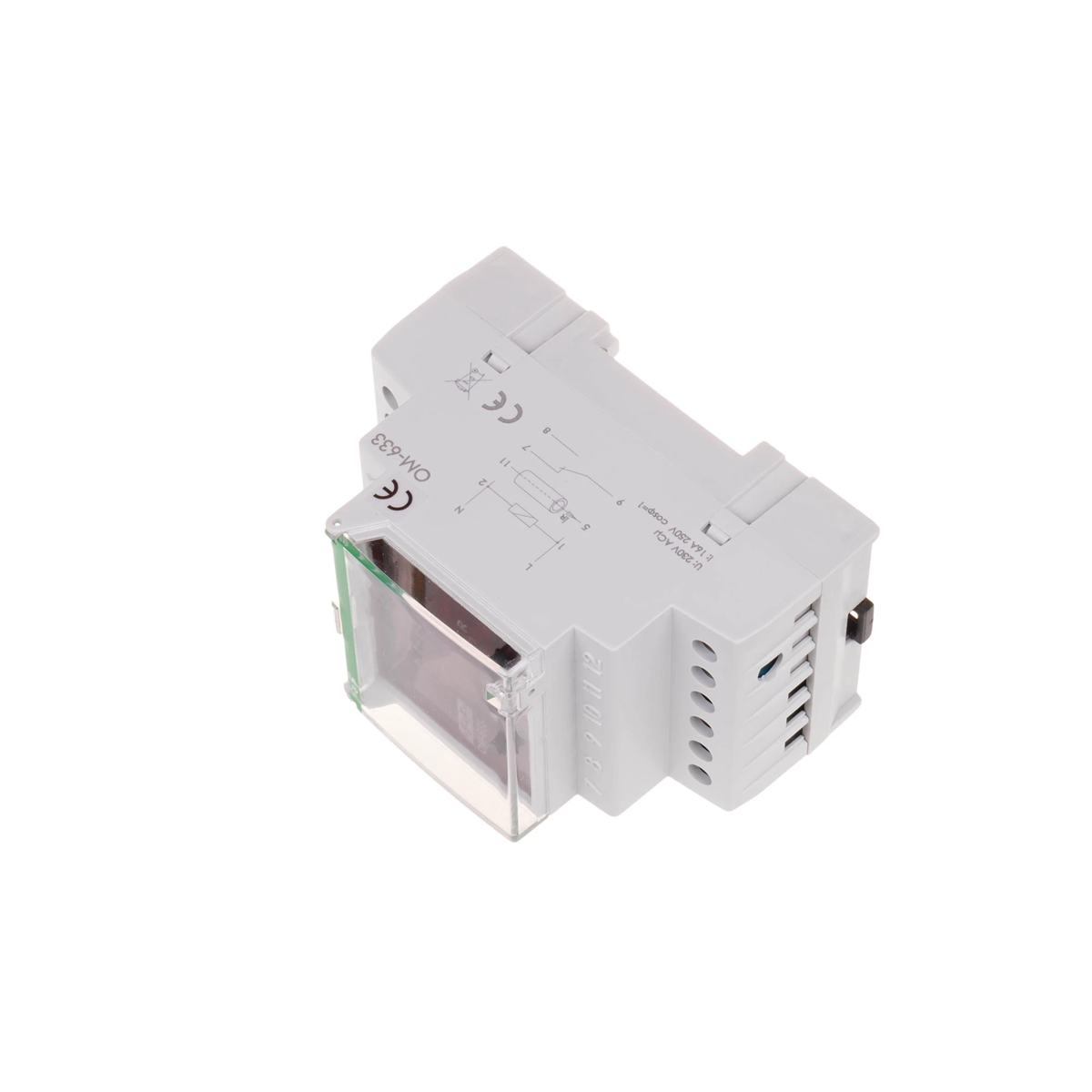

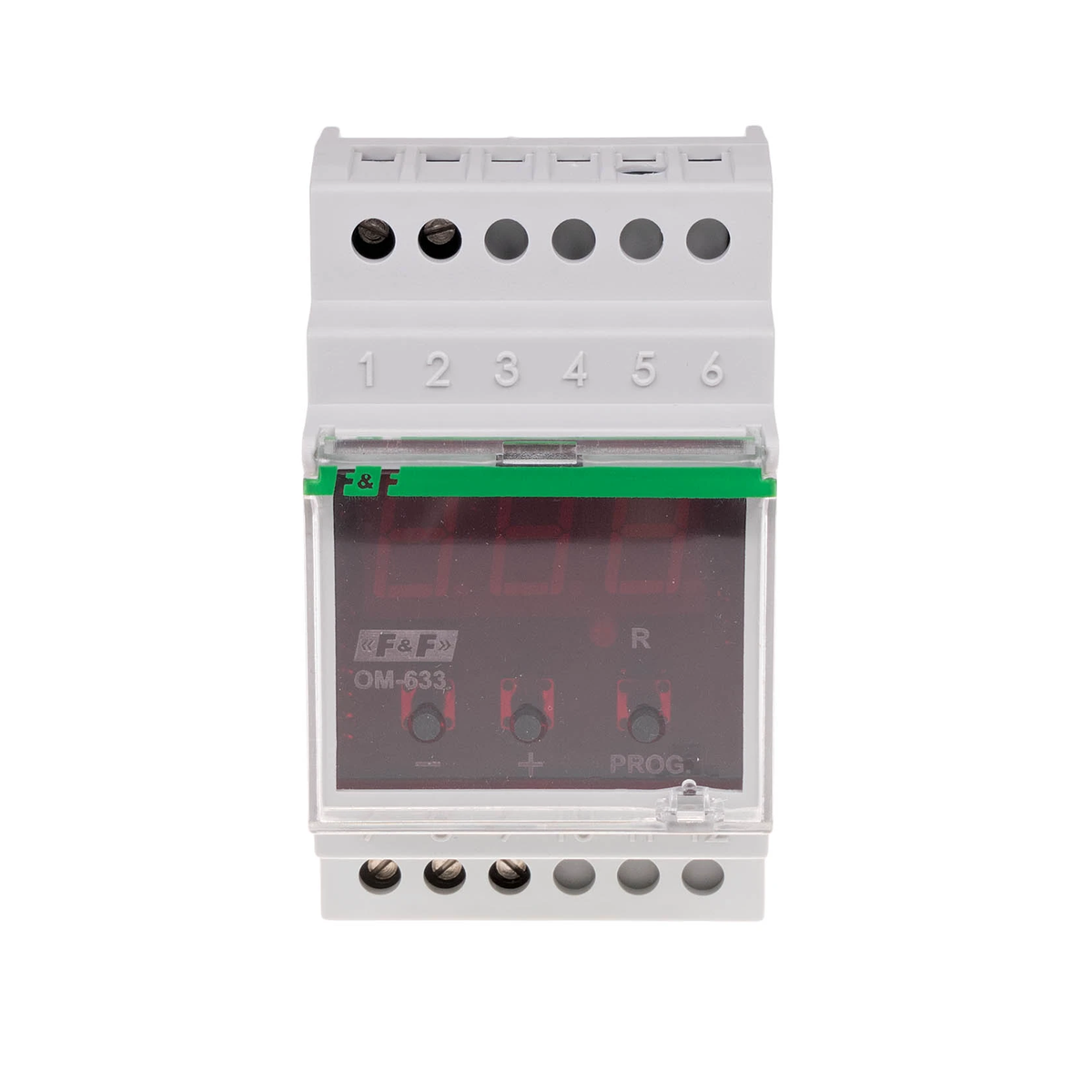

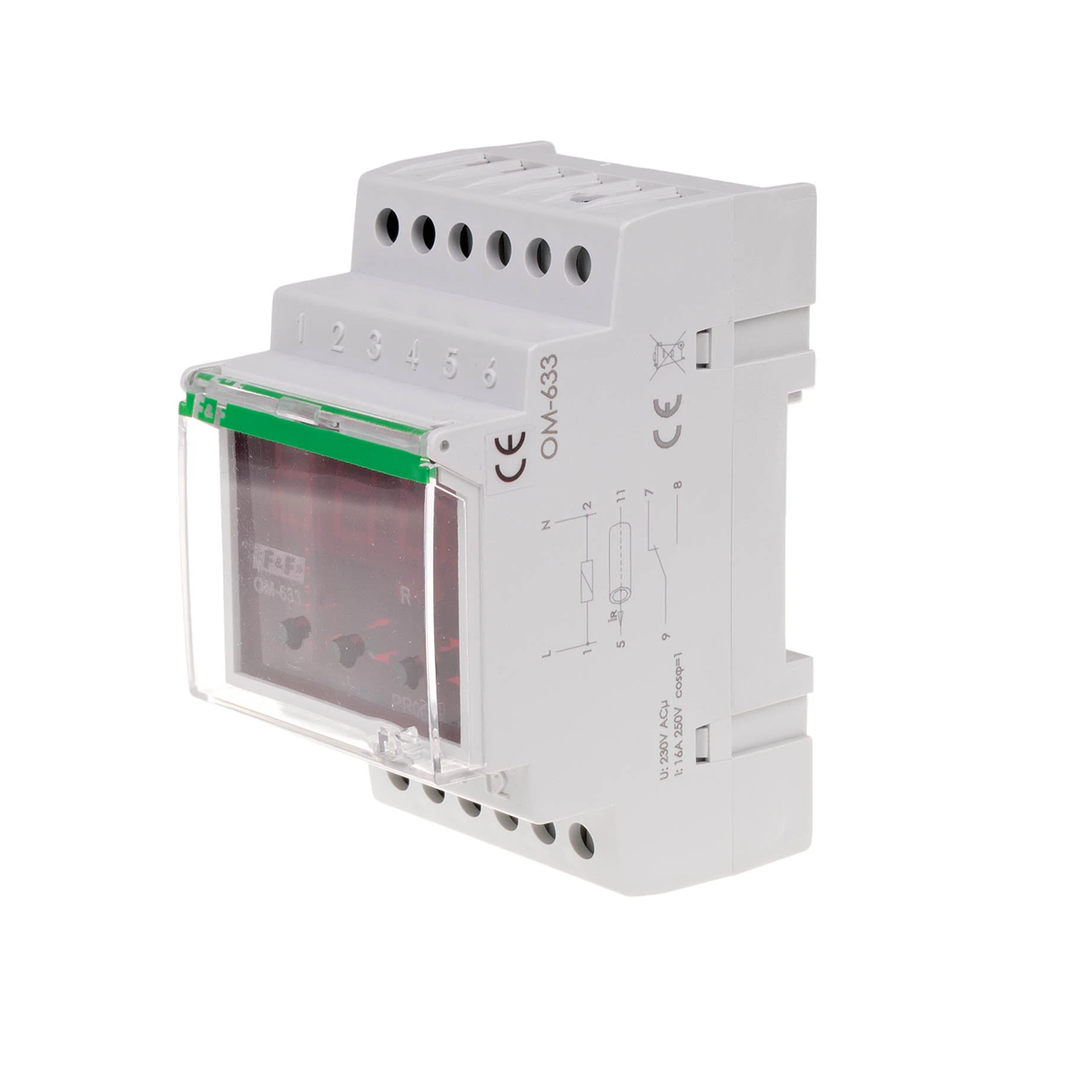

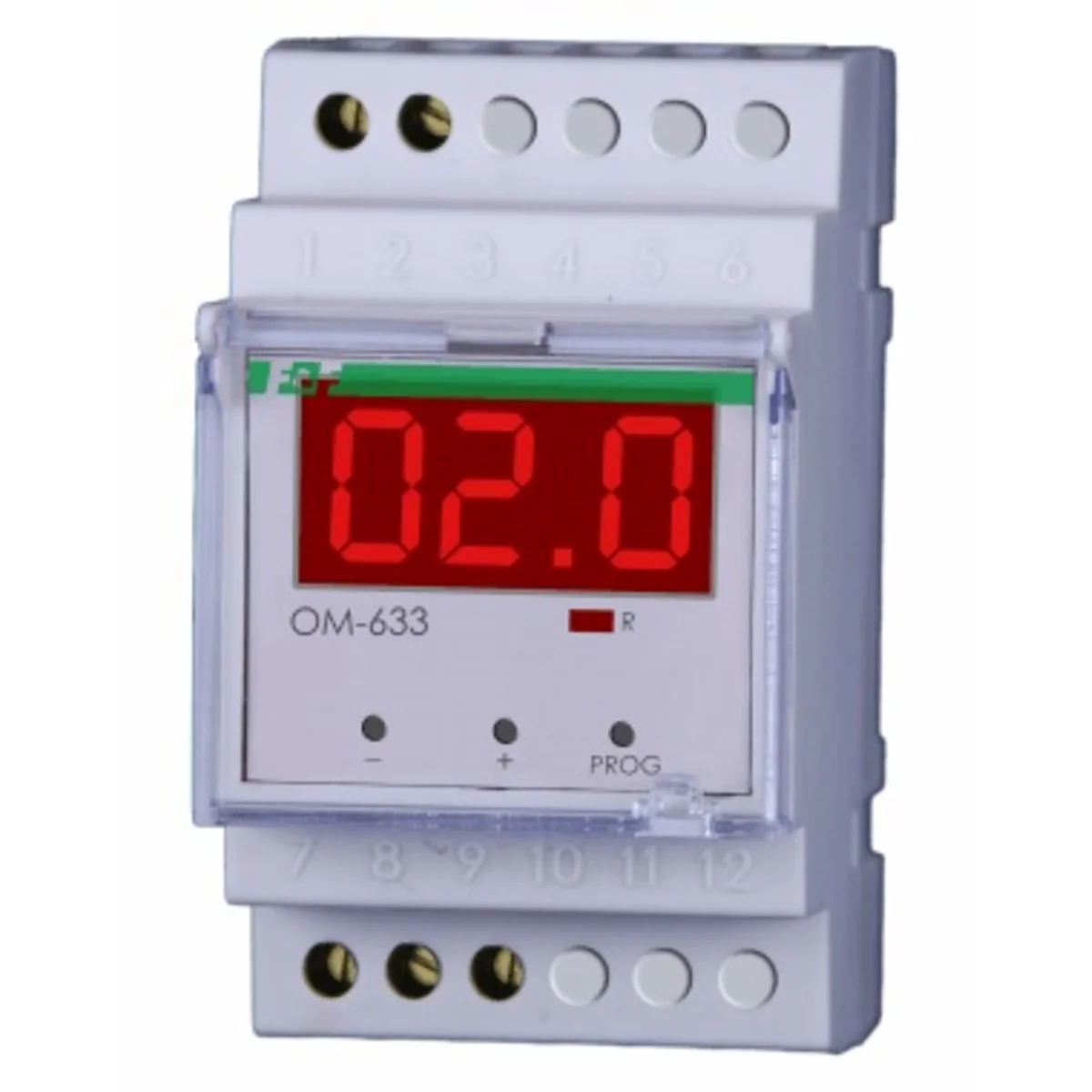

Power consumption limiter with voltage relay function OM-633
local index:
API122FIFQ
Catalog No:
OM-633
EAN code:
5908312597247
Price:
70,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The OM-633 power consumption limiter is used to automatically disconnect the power supply to the electrical installation circuit when the set value of power consumed by the receivers in this circuit is exceeded, and to control the supply voltage of this receiver and protect it against the effects of voltage increase or decrease beyond the set values.
| Activation time for Px8/16kW [s] | 0.1 | Activation time - adjustable [s] | 1-180 |
| Return time adjustable [s] | 4-360 |
Technical data
-
Number of contacts0NO 0NC
-
Rated current [A]16
-
Dimensions3 modules (52.5mm)
-
Package height [mm]150
-
Package weight [kg]0.3
-
Power [W]6
-
Working temperature [°C]-25-50
-
Power [V]230
-
Package width [mm]60
-
PKWIU27.12.24.0
Other technical data
-
Nominal measuring voltage230 V
-
Nominal operating current16 A
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
KrótkozwłocznyNo
-
Frequency measuring voltage50 Hz
-
Number of phases1
-
Voltage typeAC
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,152 |
| Width (m) | 0,041 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
