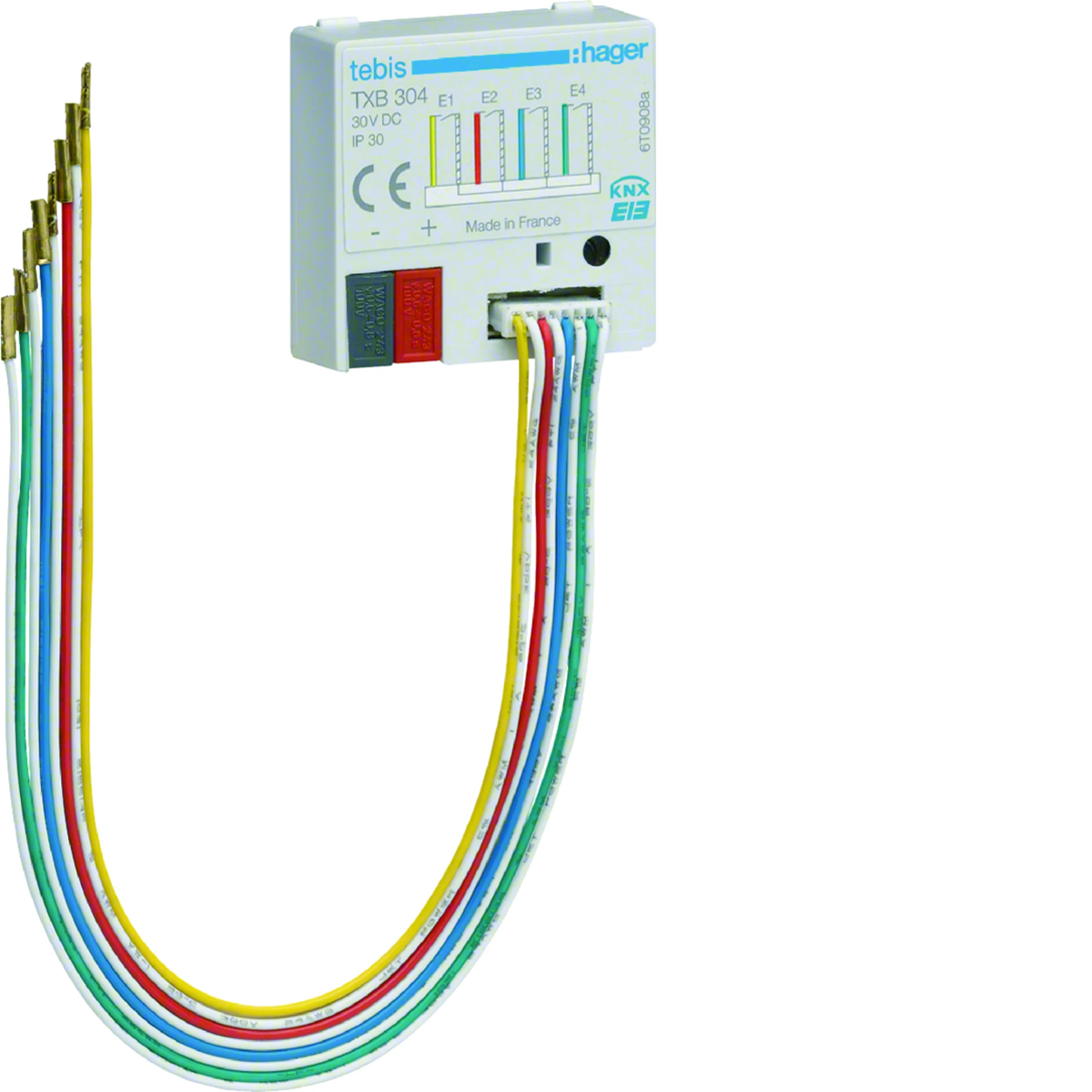

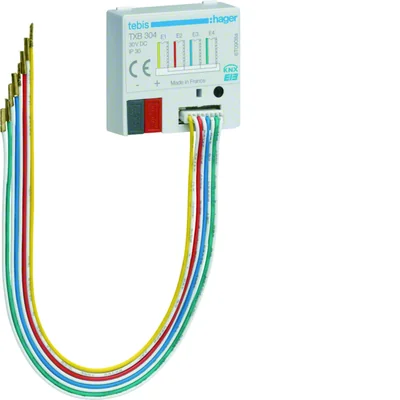

Potential-free push-button input. 4-fold flush-mounted TXB304

Name: Potential-free push-button input. 4-fold flush-mounted
Brand: HAGER
SKU: AIK018HAGE
Price: 162.48 PLN

local index:

AIK018HAGE

Catalog No:

TXB304

EAN code:

3250616049413

Potential-free push-button input. 4-fold flush-mounted

Click on the photo to enlarge

Manufacturer: HAGER

Length [mm]: 38

Number of input circuits: 4

Maximum cable length [m]: 5

See full description

Price:

162,48 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Input devices generate signals to the tebis TX system. Control information is used to control output devices. Push-button inputs TXB302, TXB304, TX308 Suitable for installation in flush-mounted deep ∅ 60 mm (mounting behind switch/push-button mechanism). Functions: - ON/OFF control, dimming, up/down (with alarm function) - priority functions - time functions - scene functions

Technical data

Length [mm]

38
Maximum cable length [m]

5
Level of security

IP30
Working temperature [°C]

from 0 to +45
PKWIU

26.30.23.0

Number of input circuits

4
Input voltage [V]

5
Width [mm]

35
Height [mm]

12

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
Width in number of modular spacings

0
Bus module detachable

No
With LED indication

No
Input voltage

5 ... 5 V
External signal voltage necessary

No
Min. depth of built-in installation box

40 mm

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Mounting method

Flush-mounted
With bus connection

Yes
LED controlling

No
Number of inputs

4
Type of voltage (input voltage)

DC
Degree of protection (IP)

IP30

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,016	0,035	4,460	130,040
Width (m)	0,029	0,080	0,305	0,800
Length (m)	0,082	0,025	0,225	1,050
Depth (m)	0,096	0,095	0,360	1,200
