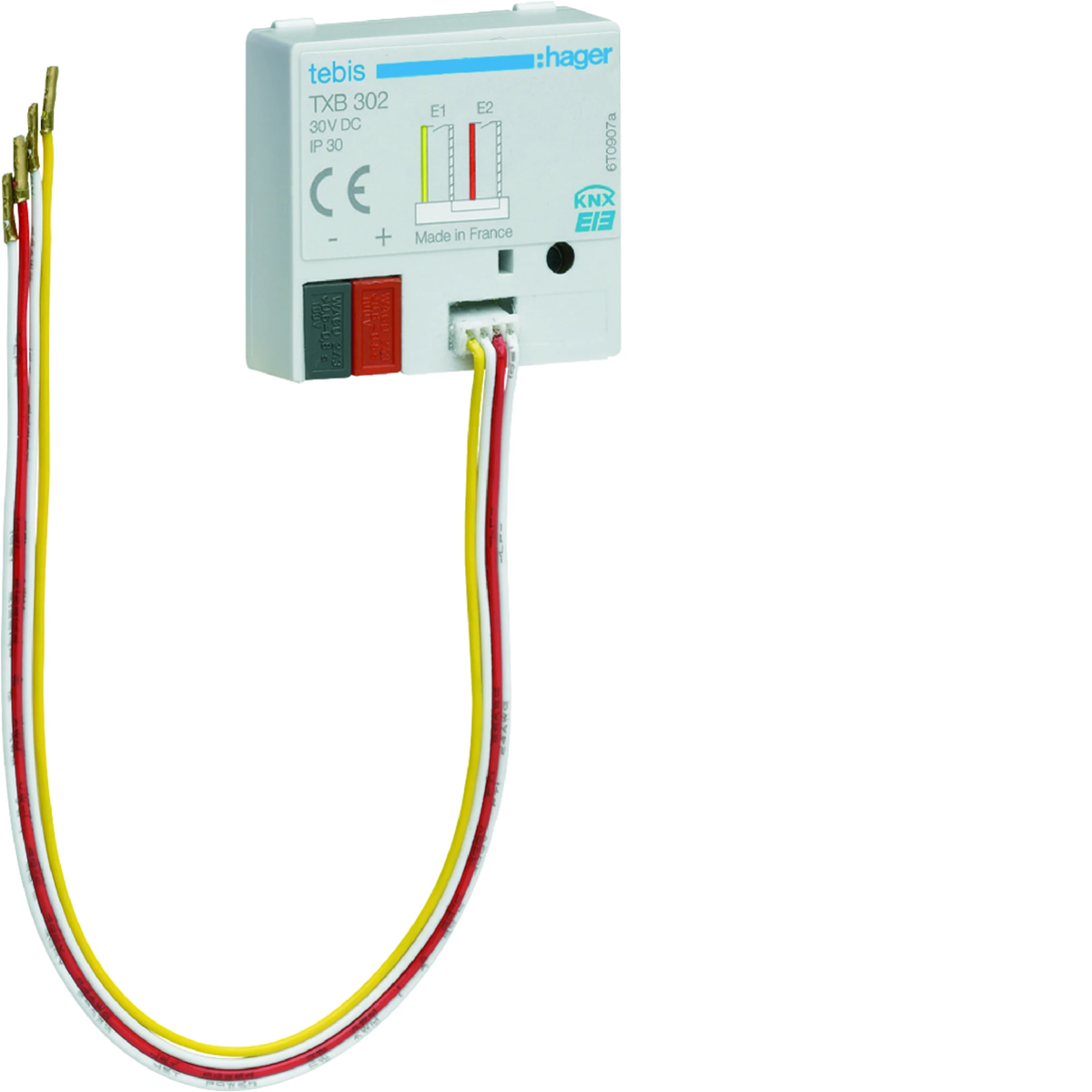

Potential-free push-button input. 2-fold flush-mounted TXB302

local index:
AIK017HAGE
Catalog No:
TXB302
EAN code:
3250616049420
Manufacturer: HAGER
Depth [mm]: 12
Number of input circuits: 2
Maximum cable length [m]: 5
Price:
84,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Input devices generate signals to the tebis TX system. Control information is used to control output devices. Push-button inputs TXB302, TXB304, TX308 Suitable for installation in flush-mounted deep ∅ 60 mm (mounting behind switch/push-button mechanism). Functions: - ON/OFF control, dimming, up/down (with alarm function) - priority functions - time functions - scene functions

Technical data

  • Depth [mm]
    12
  • Maximum cable length [m]
    5
  • Level of security
    IP30
  • Height [mm]
    38
  • Number of input circuits
    2
  • Input voltage [V]
    5
  • Width [mm]
    35
  • PKWIU
    26.30.23.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    0
  • Bus module detachable
    No
  • With LED indication
    No
  • Input voltage
    5 ... 5 V
  • External signal voltage necessary
    No
  • Min. depth of built-in installation box
    40 mm
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    Yes
  • LED controlling
    No
  • Number of inputs
    2
  • Type of voltage (input voltage)
    DC
  • Degree of protection (IP)
    IP30

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,012 0,034 4,052 122,248
Width (m) 0,038 0,080 0,315 0,800
Length (m) 0,035 0,025 0,215 1,050
Depth (m) 0,012 0,095 0,360 1,200
