Plastic inductive sensor 1NO+1NC 12-48V DC screw terminals XS8C4A4PCP20

Name: Plastic inductive sensor 1NO+1NC 12-48V DC screw terminals
Brand: SCHNEIDER ELECTRIC
SKU: API367SCHN
Price: 670.76 PLN
Availability: BackOrder

Índice local:

API367SCHN

Número de catálogo:

XS8C4A4PCP20

Código EAN:

3389119058315

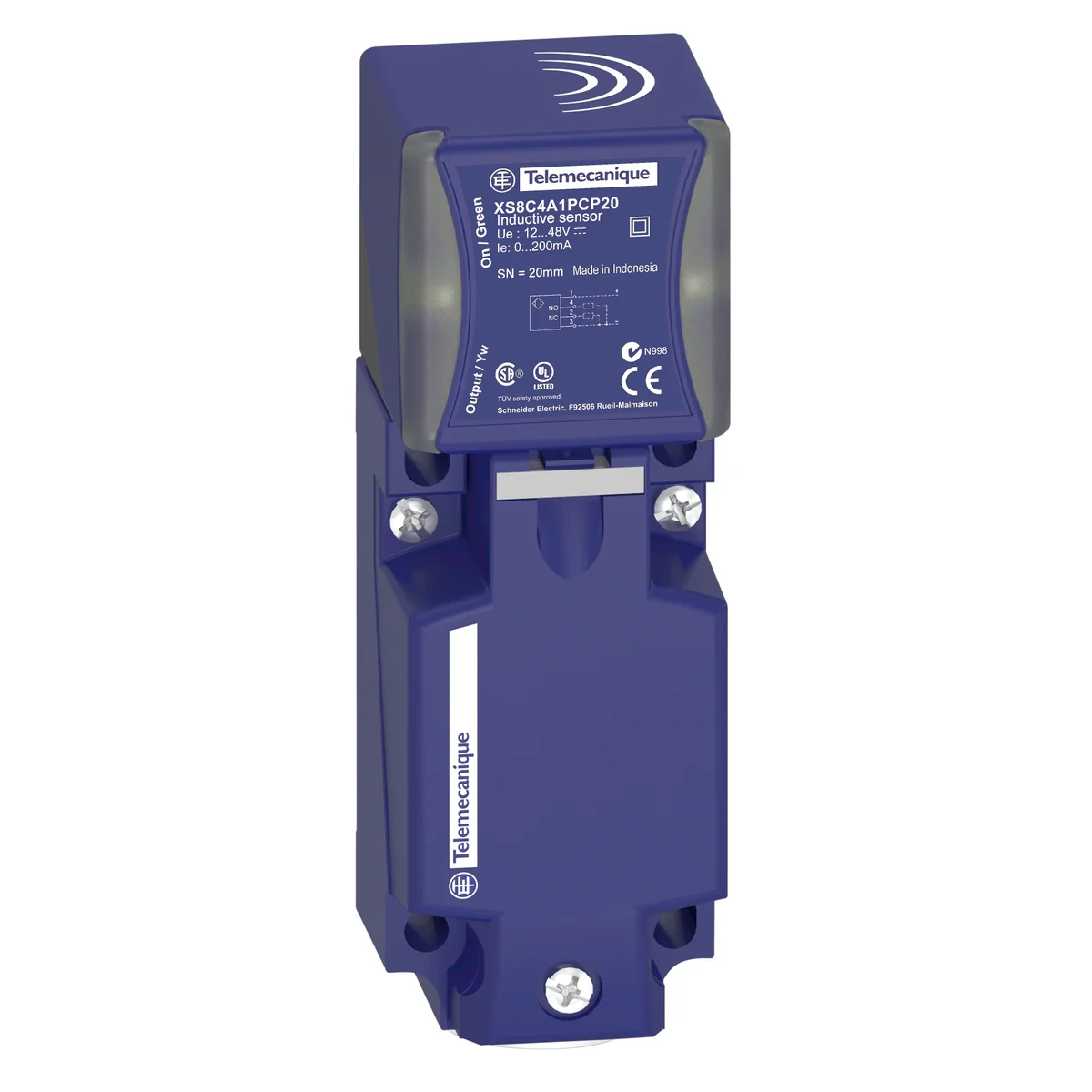

Plastic inductive sensor 1NO+1NC 12-48V DC screw terminals

Haga clic en la foto para ampliar

Fabricante: SCHNEIDER ELECTRIC

Material: Plastic

Ver descripción completa

Precio:

670,76 zł

gross / uds.

(IVA incluido 23%)

Fuera de stock

Añadir a solicitud de presupuesto

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Archivos para descargar

Descripción del producto

Plastic inductive sensor 1NO+1NC 12-48V DC screw terminals

Datos técnicos

Material

Plastic

PKWIU

26.51.66.0

Otros datos técnicos

Width sensor

117 mm
Length of sensor

40 mm
Switching distance

40 mm
Type of switch function

Other
Type of electric connection

Screw connection
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Type of interface

None
Construction type housing

Cuboid
Cascadable

No
Performance level according to EN ISO 13849-1

None
Supply voltage

12 ... 48 V
Voltage type

AC/DC
With monitoring function downstream switching devices

No
Compression-resistant

No
Explosion safety category for dust

None

Height of sensor

40 mm
Mechanical mounting condition for sensor

Not flat
Suitable for safety functions

No
Type of switching output

PNP/PNP
Number of semiconductor outputs with signalling function

2
Number of protected semiconductor outputs

2
Type of actuation

Metallic Target
Type of interface for safety communication

None
Coating housing

Other
SIL according to IEC 61508

None
Max. output current at protected output

200 mA
Rated control supply voltage DC

12 ... 48 V
Switching frequency

200 Hz
Housing material

Plastic
Explosion safety category for gas

None
Interference resistance to magnetic fields

Immune against magnetic DC-field
