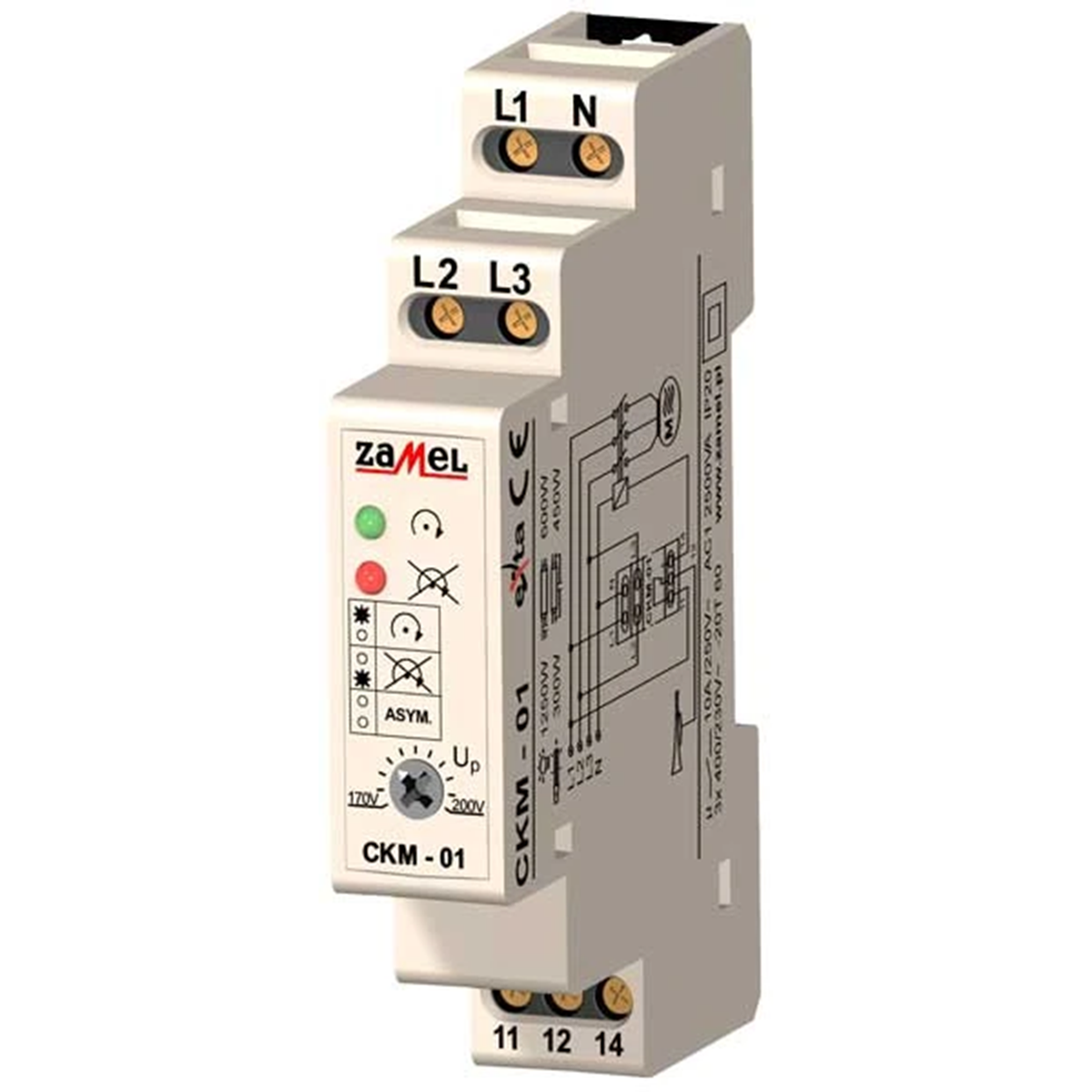

Phase sequence sensor 230/400V AC type CKM-01 EXT10000019

local index:
APL005ZAME
Catalog No:
EXT10000019
EAN code:
5903669021933
Price:
22,03 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 22 pcs.
Delivery:
From 3,68 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The CKM01 phase sequence sensor is used to protect devices powered from a three-phase network (e.g. motors) against damage, in the event of a phase voltage failure, phase voltage asymmetry or wrong phase sequence.
The threshold value of the activation voltage can be set by the user using a potentiometer .
The system does not protect against symmetrical voltage drop. The system is powered from the L1 phase.
Off delay and voltage hysteresis make the system resistant to short-term voltage fluctuations.q

Technical data

  • Delay time [s]
    5
  • Additional features
    Phase sequence control
  • Number of NC contacts
    10
  • Type of electrical connection
    Screw connection
  • Width [mm]
    17.5
  • Height [mm]
    90
  • sensor
    Phase loss control
  • Depth [mm]
    66
  • Control voltage [V]
    195.5
  • Family
    EXTA
  • Type
    Sensors
  • Number of NO contacts
    1
