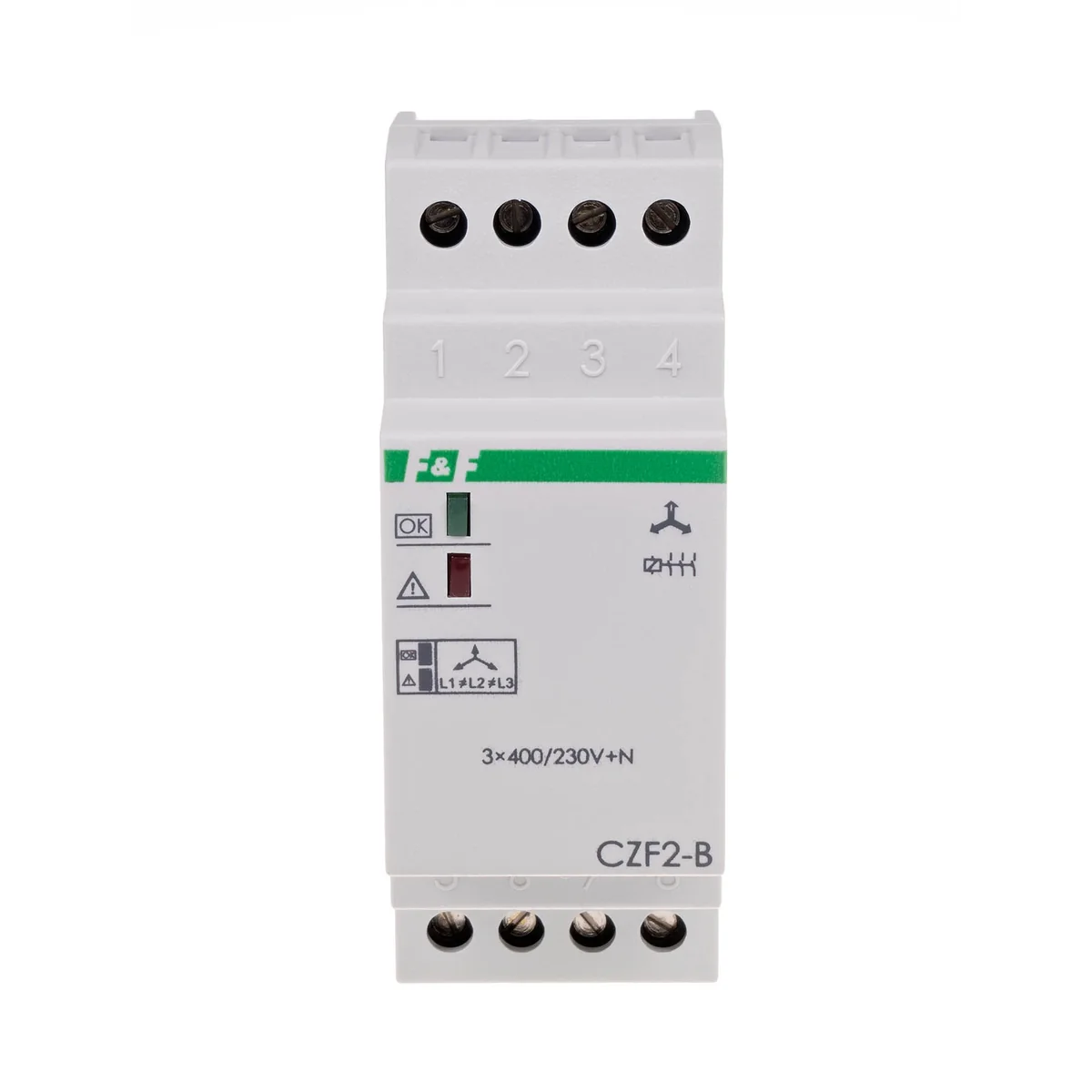

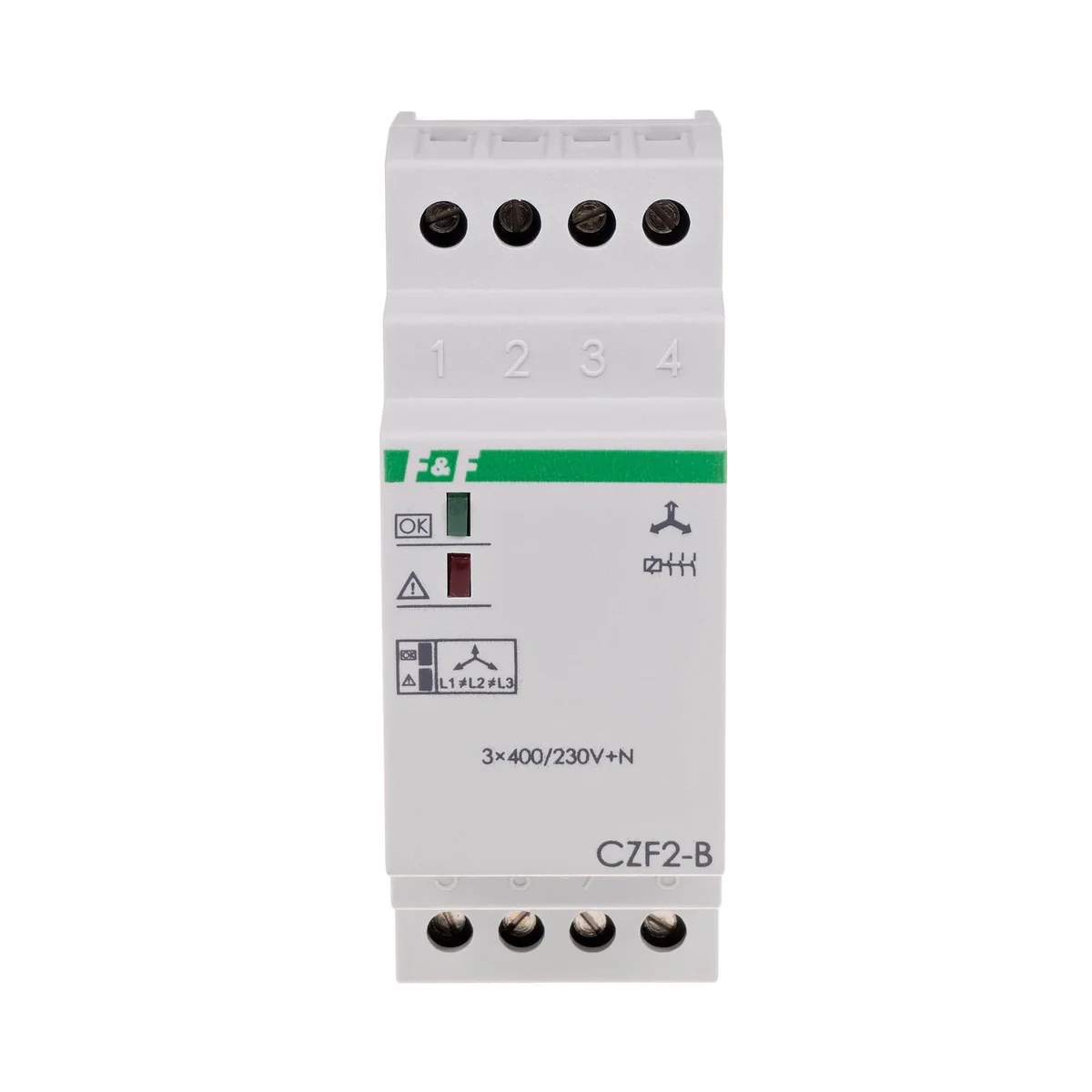

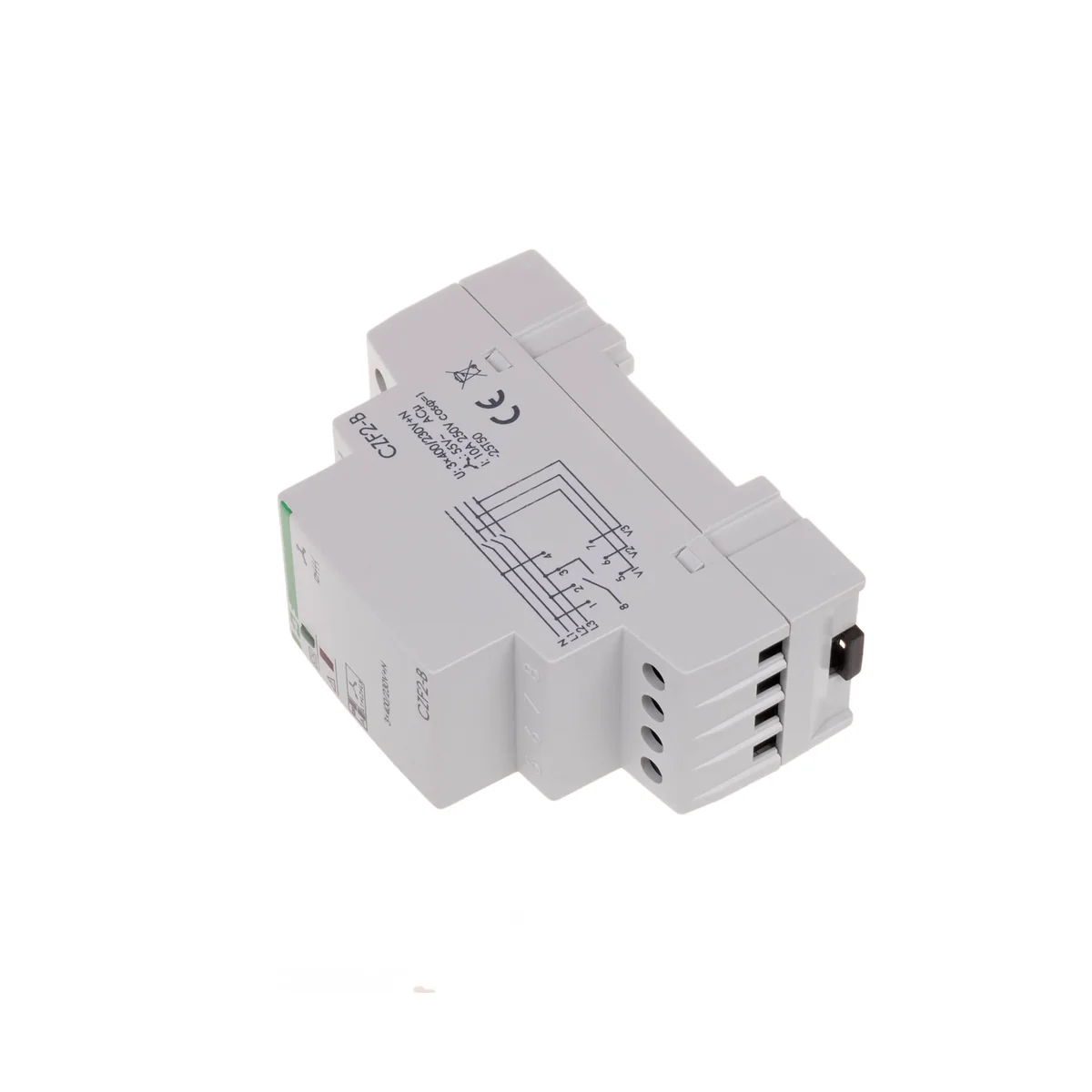

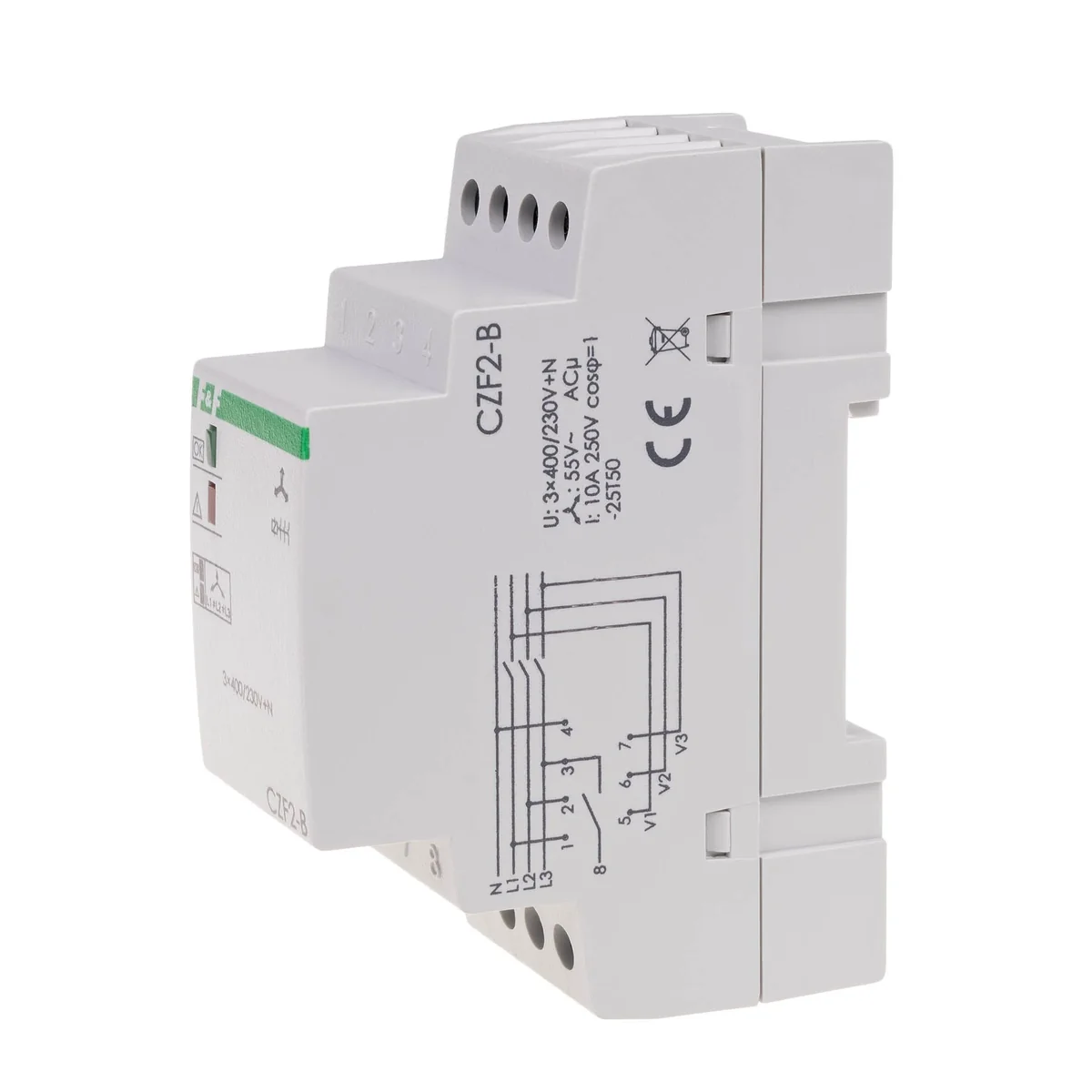

Phase failure sensor with tangent control CZF-2B CZF-2B
local index:
APL202FIFQ
Catalog No:
CZF-2B
EAN code:
5908312593065
Manufacturer:
F&F
Trip voltage unbalance [V]: 55
Voltage hysteresis [V]: 5
Number of contacts: 1NO 0NC
Price:
124,72 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Phase loss sensor with control of contactor contacts are designed to protect electric motors powered from a three-phase network in the event of a voltage loss in at least one phase or voltage asymmetry between phases, and damage to the contacts of the switching contactor, which may result in motor damage.
Technical data
-
Trip voltage unbalance [V]55
-
Number of contacts1NO 0NC
-
Rated voltage [V]230
-
contact gap [kV]<10
-
Mounting methodFor screws
-
Dimensions2 modules (35mm)
-
Package width [mm]40
-
Shutdown delay [s]4
-
Voltage hysteresis [V]5
-
Power [W]1.6
-
Shutdown delay [s]4
-
connection2.5mm screw terminals
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.25
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionScrew connection
-
External power supply requiredYes
-
Supply voltage AC 50 Hz150 ... 280 V
-
Phase failure detectionYes
-
Function over voltage detectionNo
-
Min. adjustable delay-on energization time4 s
-
Min. adjustable off-delay time4 s
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Operating voltage AC 50 Hz150 ... 280 V
-
Width0 mm
-
Depth0 mm
-
With detachable clampsNo
-
Voltage type (supply voltage)AC
-
Phase sequence monitoringNo
-
Function under voltage detectionYes
-
Phase imbalance monitoringYes
-
Max. permitted delay-on energization time4 s
-
Max. permitted off-delay time4 s
-
Number of contacts as normally open contact0
-
Voltage type (operating voltage)AC
-
Rated switch current10 A
-
Height0 mm
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,100 |
| Width (m) | 0,041 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
