el12 Automation Relays and drivers Other automation elements

Panel 5.7 Color 320×240 TFT 1COM+1ETH HMISTU855

local index:
API085SCHN
Catalog No:
HMISTU855
EAN code:
3606489909499

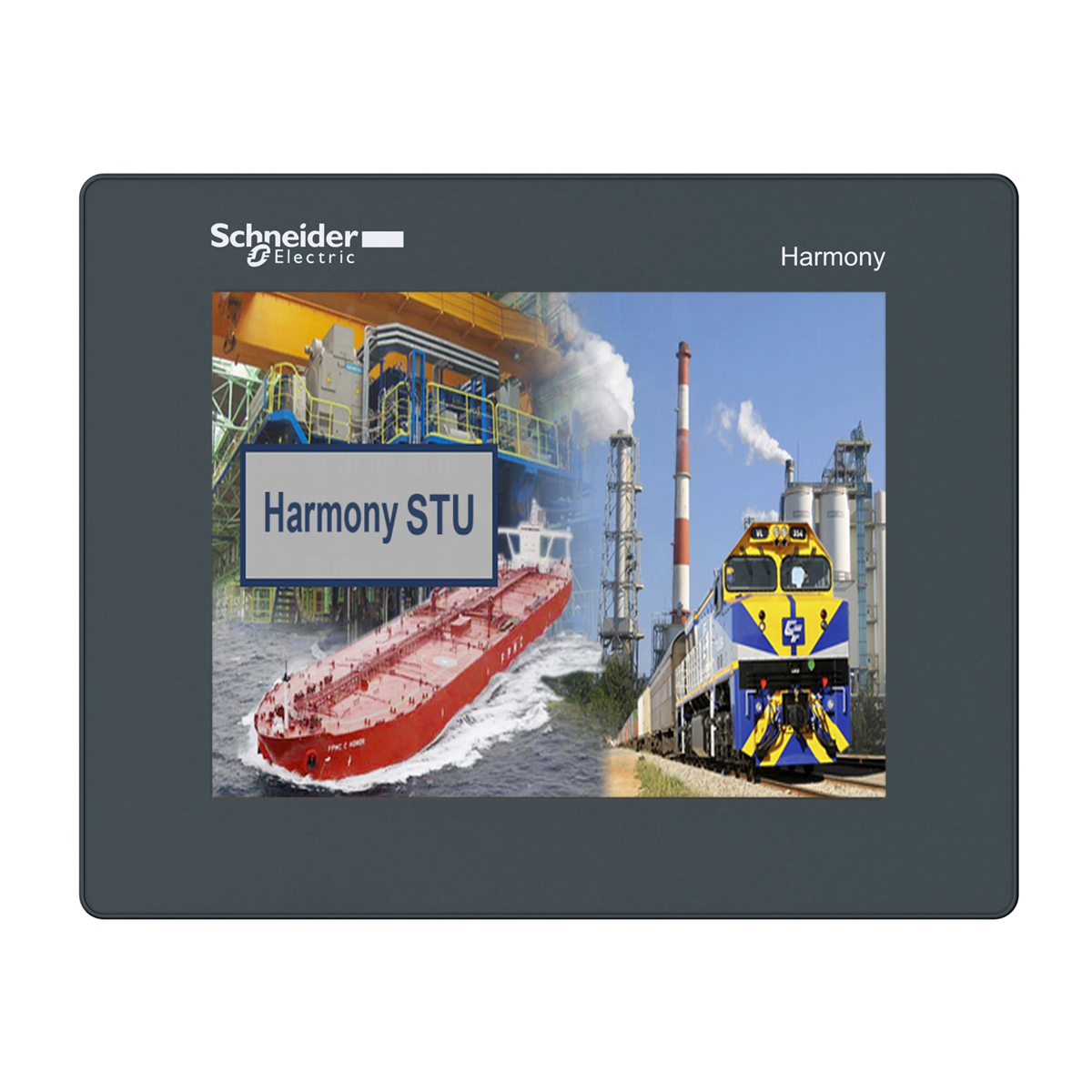

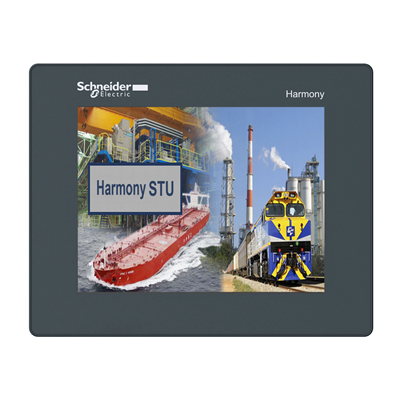

Panel 5.7 Color 320×240 TFT 1COM+1ETH
Panel 5.7 Color 320×240 TFT 1COM+1ETH

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 129.15
See full description
Price:
755,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

Panel 5.7 Color 320×240 TFT 1COM+1ETH

Technical data

  • Height [mm]
    129.15
  • PKWIU
    26.20.17.0

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Number of HW-interfaces industrial Ethernet
    1
  • Number of HW-interfaces RS-232
    1
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    1
  • Number of HW-interfaces wireless
    0
  • With SW interfaces
    Yes
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Colour display
    Yes
  • Number of grey-scales/blue-scales of display
    0
  • Number of pixels, horizontal
    320
  • Useful project memory/user memory
    16384 kB
  • With alpha numeric keyboard
    No
  • Number of buttons with LED
    0
  • Touch technology
    Resistive touch
  • With message system (incl. buffer and confirmation)
    Yes
  • Process default value (input) possible
    No
  • Number of password levels
    0
  • Number of online languages
    4
  • Degree of protection (IP), front side
    IP65/IP67
  • Operating temperature
    0 ... 50 °C
  • Wall mounting/direct mounting
    Yes
  • Width of the front
    163 mm
  • Built-in depth
    56.5 mm
  • Voltage type (supply voltage)
    AC/DC
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    Yes
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • Type of display
    TFT
  • Number of colours of the display
    65536
  • Screen diagonal
    5.7 cal
  • Number of pixels, vertical
    240
  • With numeric keyboard
    No
  • Number of function buttons, programmable
    0
  • Number of system buttons
    0
  • With message indication
    Yes
  • Process value representation (output) possible
    Yes
  • With recipes
    Yes
  • With printer output
    Yes
  • Additional software components, loadable
    Yes
  • Degree of protection (NEMA), front side
    4X
  • Rail mounting possible
    No
  • Suitable for safety functions
    No
  • Height of the front
    129.15 mm

Manufacturer details

  • Manufacturer
    "SCHNEIDER ELECTRIC POLSKA" SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Address
    02-673 UL. KONSTRUKTORSKA 12
  • E-mail
    poland.helpdesk@pl.schneider-electric.com
  • Tax identification number
    5220011965
