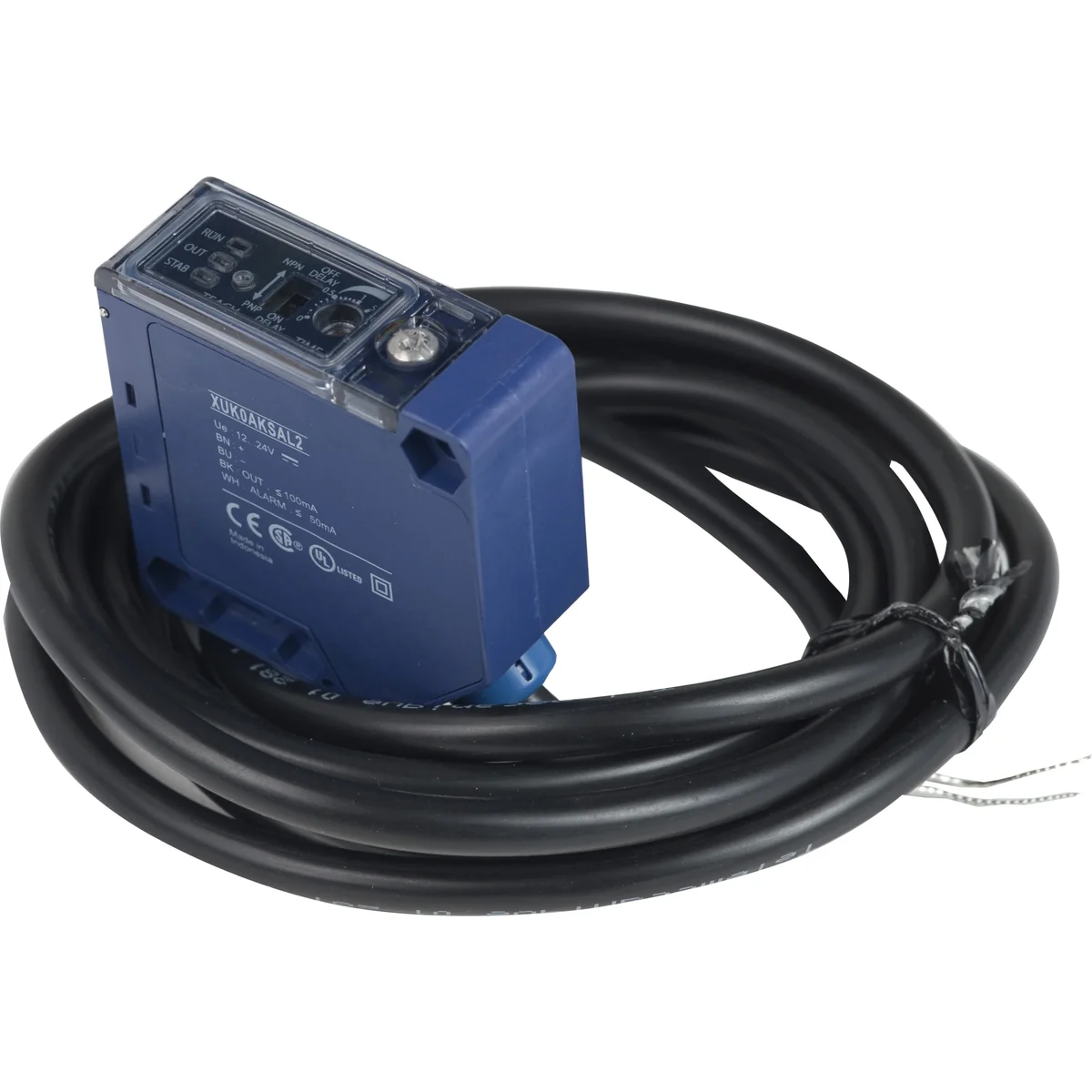

Name: OsiSense XU Photoelectric sensor with PNP or NPN output 1NO/1NC 12/24VDC cable 2m
Brand: SCHNEIDER ELECTRIC
SKU: APF010SCHN
Price: 944.64 PLN
Availability: BackOrder

Material

Plastic
PKWIU

26.51.66.0

Rated voltage [V]

24

Autres données techniques

Scope of delivery of the one-way system

Transmitter and receiver
Pre failure notice

No
Rated switching distance

4000 mm
Max. output current

100 mA
Analogue output 0 V ... 10 V

No
Analogue output 4 mA ... 20 mA

No
With other analogue output

No
With communication interface analogue

No
With communication interface CANOpen

No
With communication interface Ethernet

No
With communication interface PROFIBUS

No
With communication interface RS-422

No
With communication interface SSD

No
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

1
Type of interface for safety communication

Other
Type of switching output

PNP/NPN
Operation agent-safety class

Safety class 0
Explosion safety category for dust

None
Width sensor

18 mm
Length of sensor

50 mm
Material of optical surface

Plastic
Max. output current at protected output

100 mA
Response time

2 ms
Type of safety according to IEC 61496-1

1
Voltage type

AC/DC
Laser protection class

None
Material of cable sheath

Other
Suitable for safety functions

No

Max. opening angle

0 °
With time function

No
Max. switching distance

5700 mm
With reflector

No
Analogue output 0 mA ... 20 mA

No
Analogue output -10 V ... +10 V

No
Setting procedure

Teach-In
With communication interface AS-Interface

No
With communication interface DeviceNet

No
With communication interface INTERBUS

No
With communication interface RS-232

No
With communication interface RS-485

No
With communication interface SSI

No
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Type of electric connection

Cable radial
Type of switch function

Programmable/configurable
Explosion safety category for gas

None
Construction type housing

Cuboid
Height of sensor

50 mm
Sensing mode

Dark switching
Housing material

Plastic
Ambient temperature

-25 ... 55 °C
Switching frequency

250 Hz
Rated control supply voltage DC

12 ... 24 V
With monitoring function downstream switching devices

No
Type of light

Polarized red light
With restart blockage

No
Degree of protection (IP)

IP65

OsiSense XU Photoelectric sensor with PNP or NPN output 1NO/1NC 12/24VDC cable 2m XUK0AKSAL2
