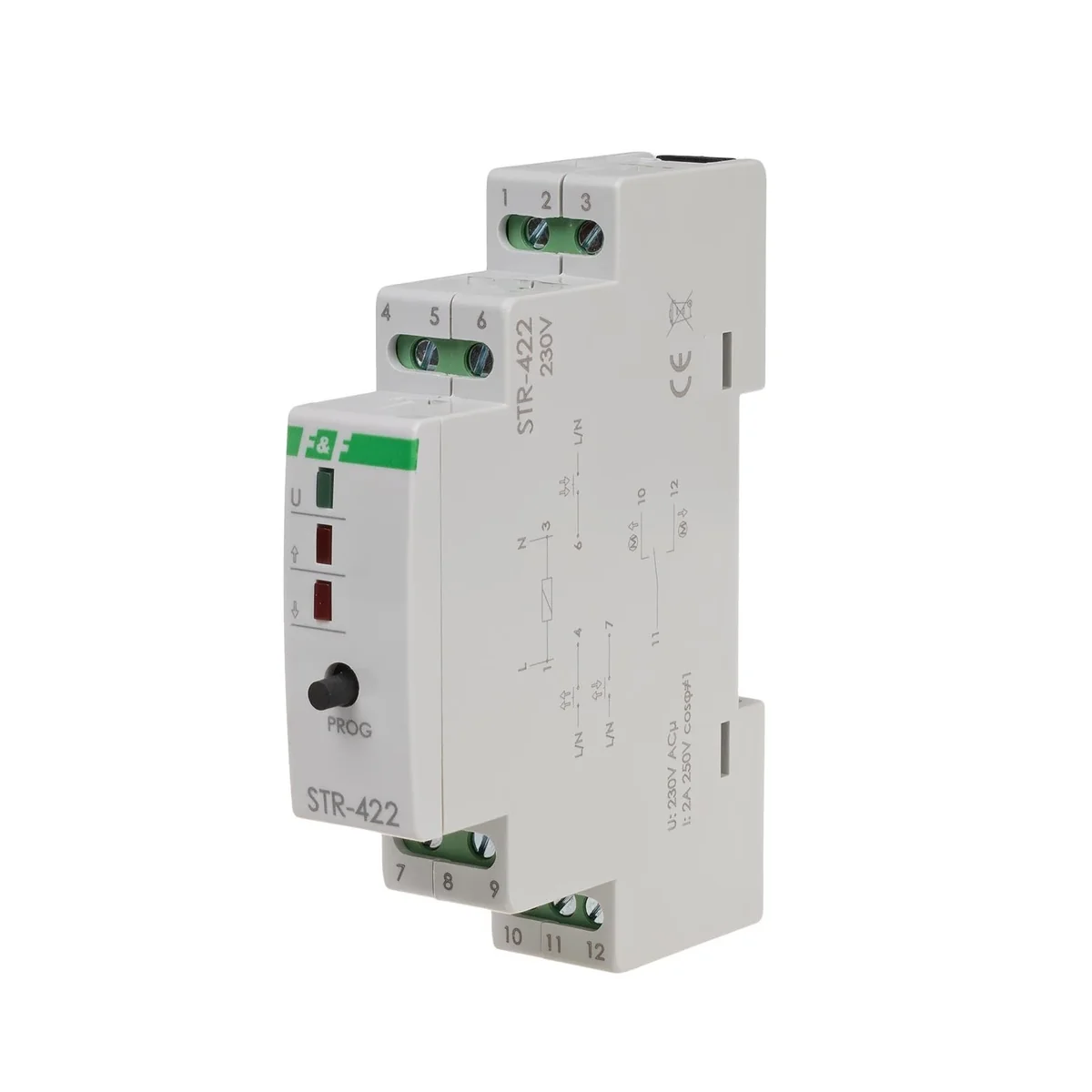

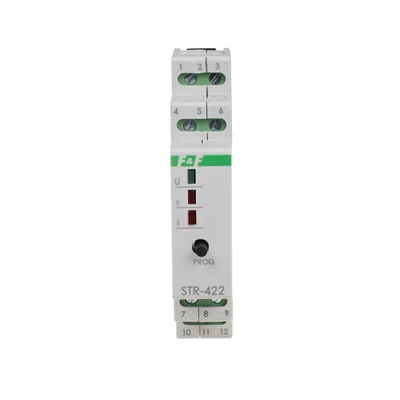

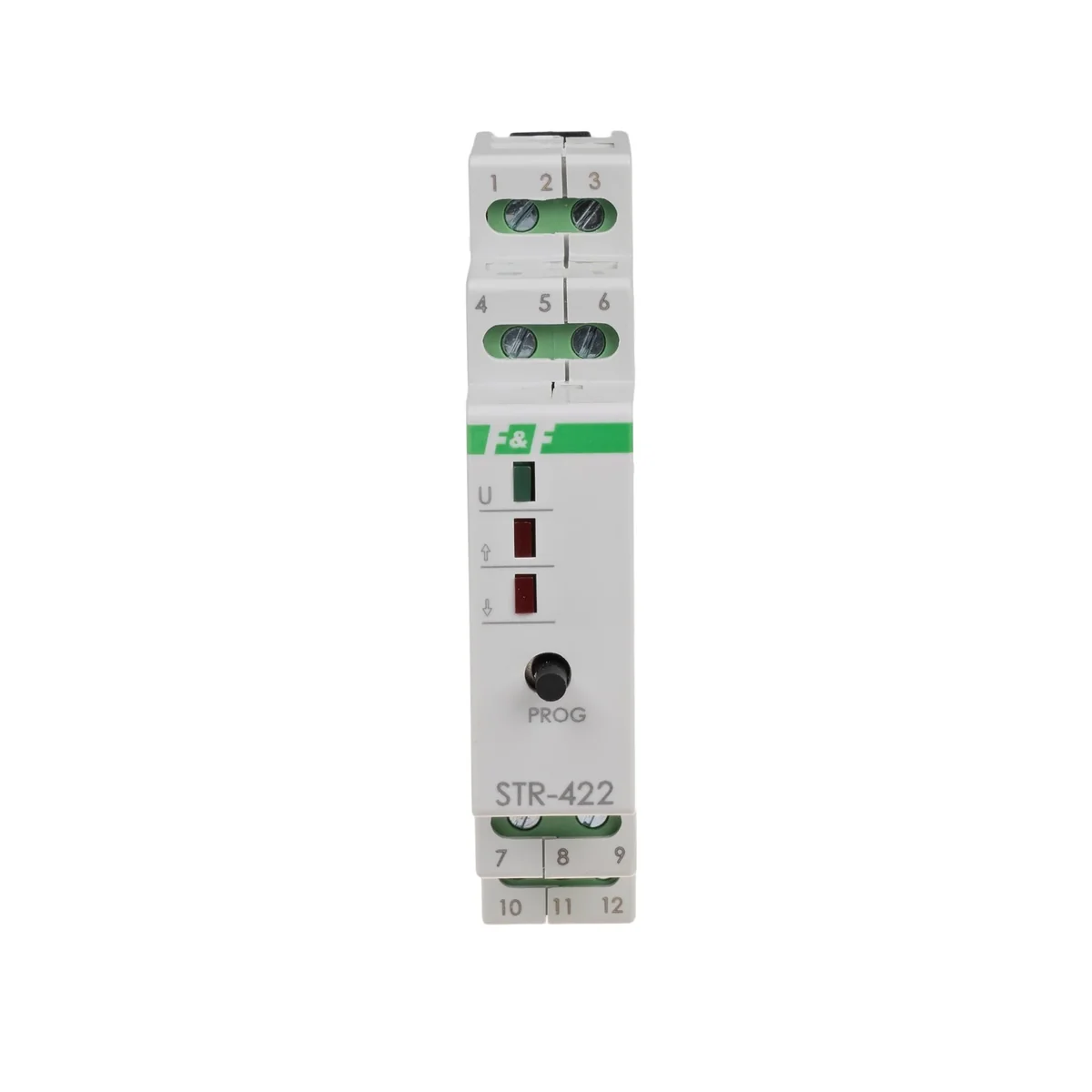

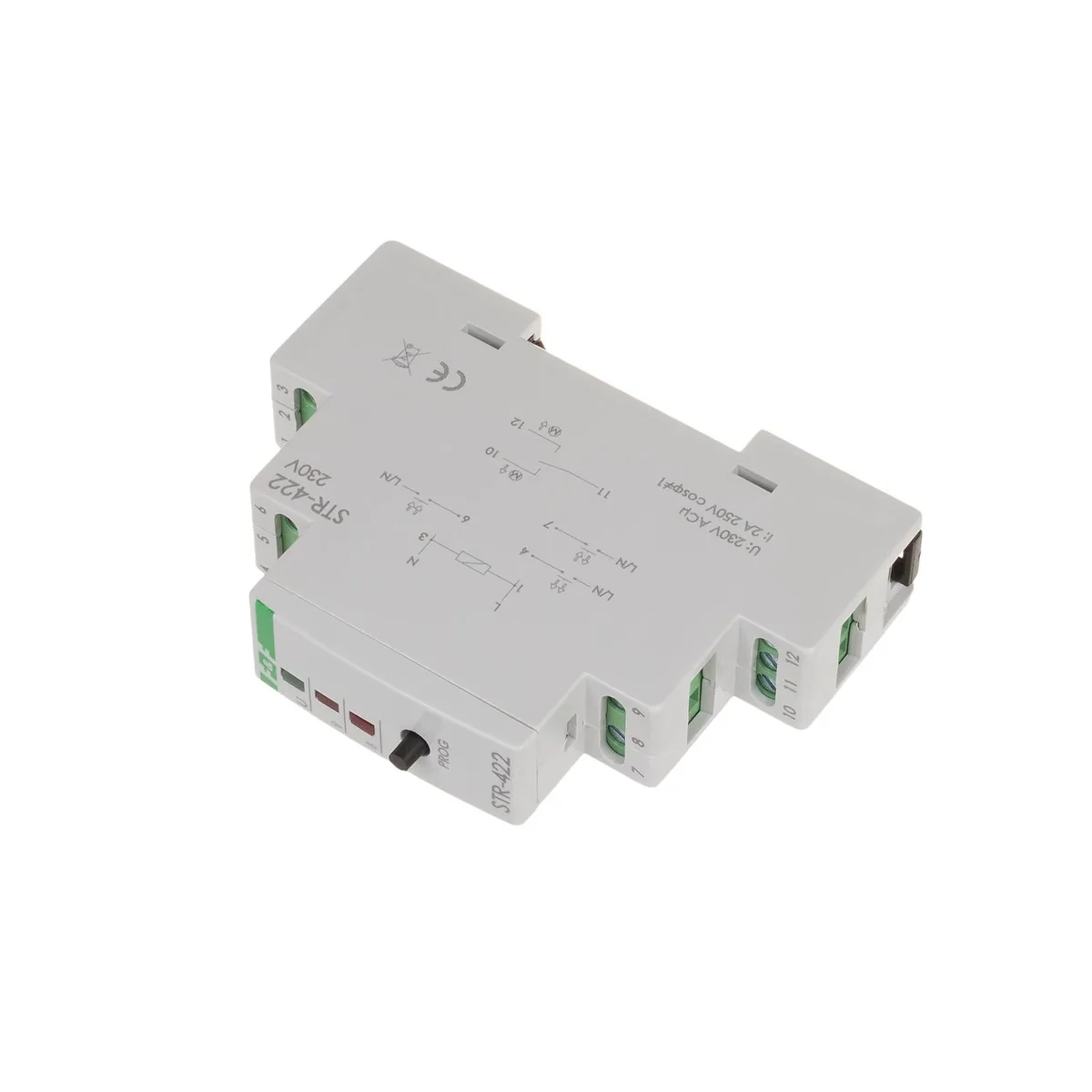

One-button roller shutter controller STR-422 STR-422

local index:
APT024FIFQ
Catalog No:
STR-422
EAN code:
5908312591535
Manufacturer: F&F
Power [W]: 1
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
26,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The STR controller is designed to control roller shutters (up-down) or other objects (e.g. gates) driven by a single-phase AC electric motor by means of momentary switches (e.g. bell switches). The controller can work as a stand-alone device (intended for opening/closing one roller shutter), and it is also possible to combine controllers into groups enabling central control of many roller shutters.

Technical data

  • Power [W]
    1
  • Rated voltage [V]
    230
  • AC-3 load current [A]
    <2
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Switching time - programmable
    0-10
  • Installation
    On the TH-35 rail
  • Control pulse current for L/N [mA]
    <1
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Control pulse current [A] for L/N [mA]
    <1
  • PKWIU
    27.12.24.0

Other technical data

  • Assembly arrangement
    Basic element
  • With brightness sensor connection
    No
  • Suitable for rain sensor
    No
  • With Astro program
    No
  • With memory function
    Yes
  • Switch-off protection
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Transparent
    No
  • Max. switching power
    300 W
  • Type of fastening
    Other
  • Integrated timer
    No
  • Suitable for wind sensor
    No
  • With glass breaking detector connection
    No
  • Substation input
    No
  • Random generator
    No
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    230 V

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,081
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
