One-button roller shutter controller STR-2 STR-2
local index:
APT040FIFQ
Catalog No:
STR-2
EAN code:
5908312593324
Price:
27,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

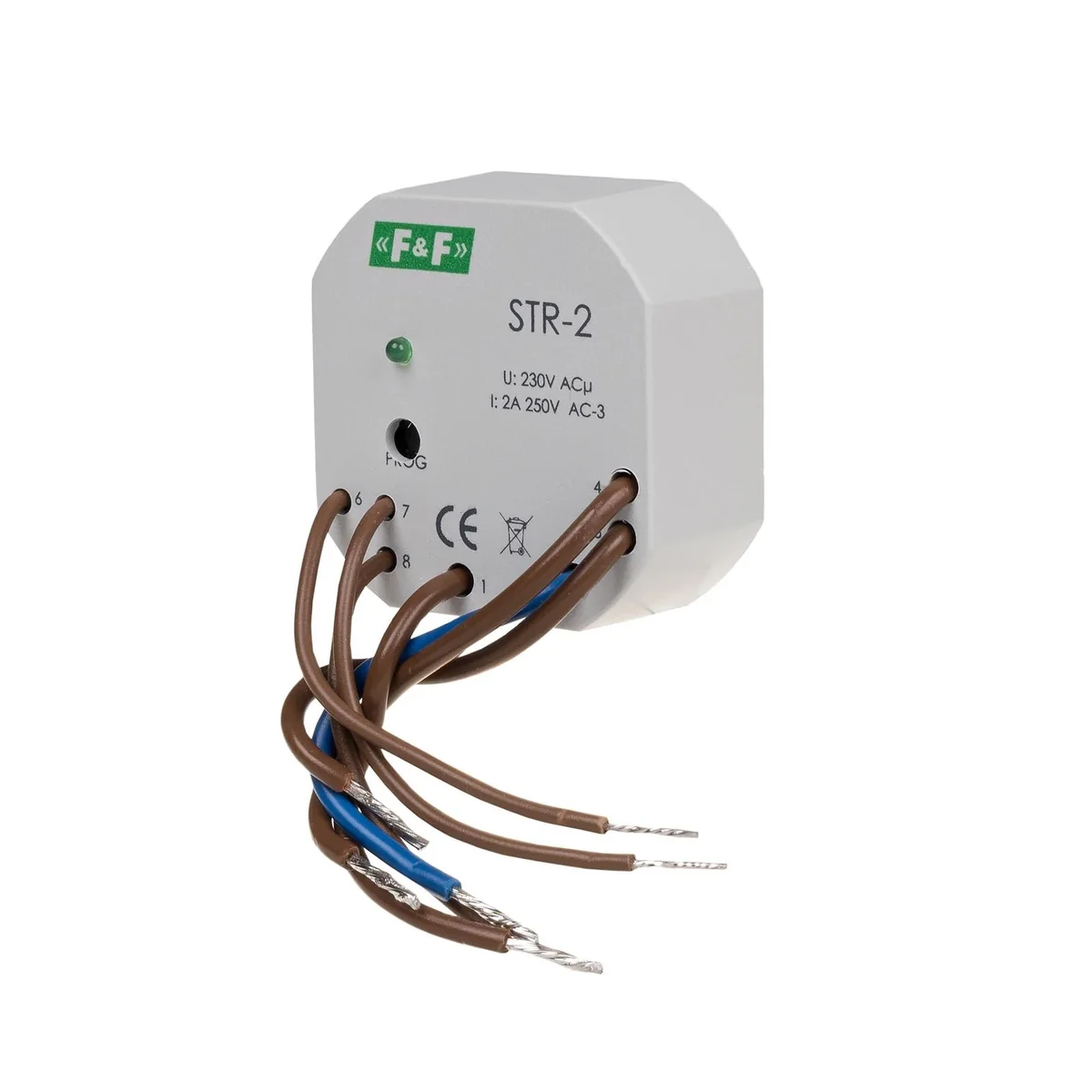

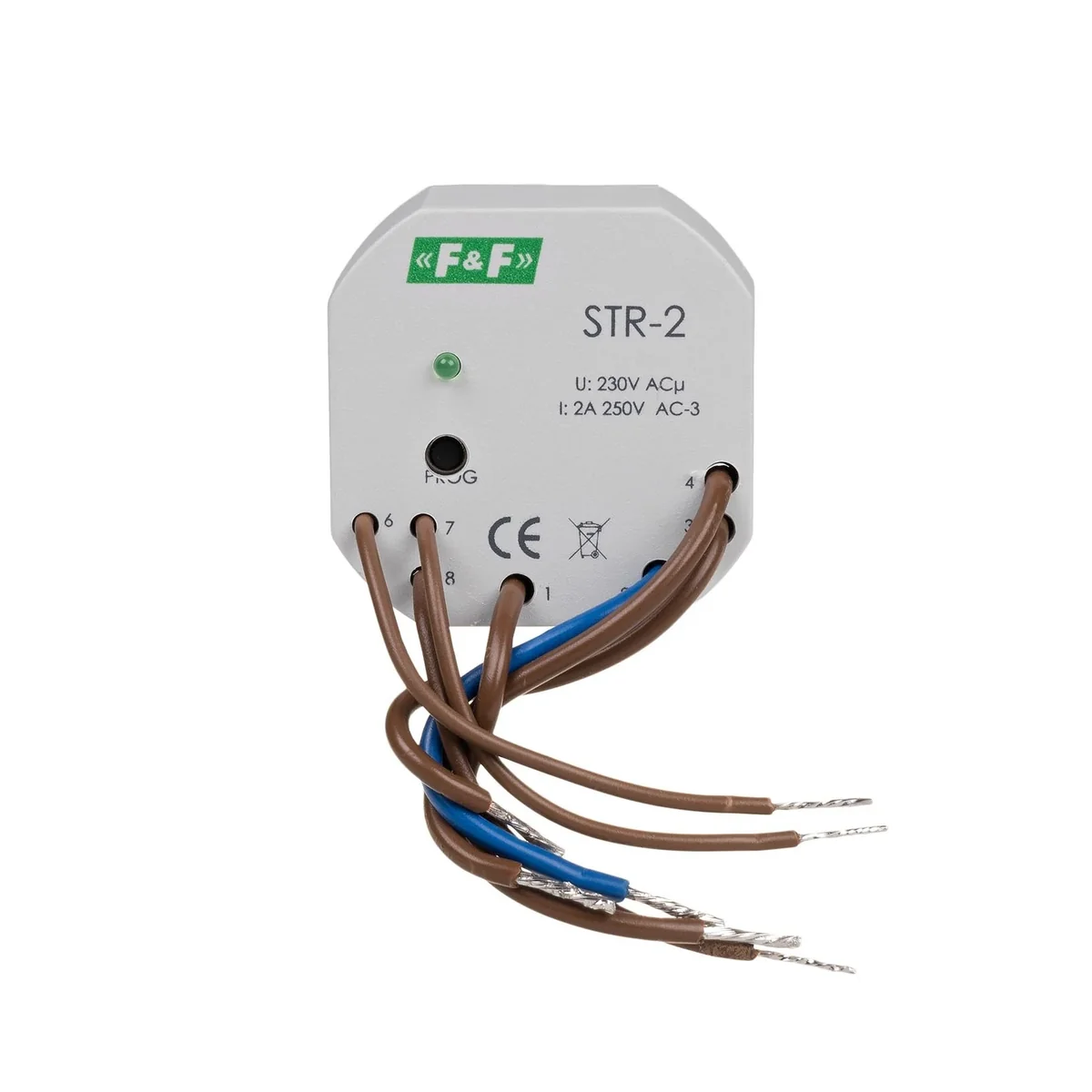

The STR-2 controller is designed to control roller shutters (up-down) or other objects (e.g. gates) driven by a single-phase AC electric motor by means of momentary switches (e.g. bell switches). The controller can work as a stand-alone device (intended for opening/closing one roller shutter), and it is also possible to combine controllers into groups enabling central control of many roller shutters.
Technical data
-
Power [W]1
-
Rated voltage [V]230
-
AC-3 load current [A]<2
-
Power connection4×DY 1.5mm, l=10cm
-
Working temperature [°C]-25-50
-
Package height [mm]22
-
Packaging diameter [mm]55
-
Switching time - programmable0-10
-
InstallationFlush-mounted
-
Control pulse current for L/N [mA]<1
-
Signal connection4×DY 1mm, l=10cm
-
Diameter [mm]55
-
Height [mm]22
-
Package weight [kg]0.1
-
Control pulse current [A] for L/N [mA]<1
-
PKWIU27.12.24.0
Other technical data
-
Assembly arrangementBasic element
-
With brightness sensor connectionNo
-
Suitable for rain sensorNo
-
With Astro programNo
-
With memory functionYes
-
Switch-off protectionNo
-
MaterialPlastic
-
Halogen freeYes
-
TransparentNo
-
Max. switching power300 W
-
Type of fasteningOther
-
Integrated timerNo
-
Suitable for wind sensorNo
-
With glass breaking detector connectionNo
-
Substation inputNo
-
Random generatorNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 V
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,052 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
