el12 Automation Relays and drivers Other automation elements

Motor starterIn TeSys LE 9A housing, 380VAC coil LE1D09Q7

local index:
API155SCHN
Catalog No:
LE1D09Q7
EAN code:
3389110572537

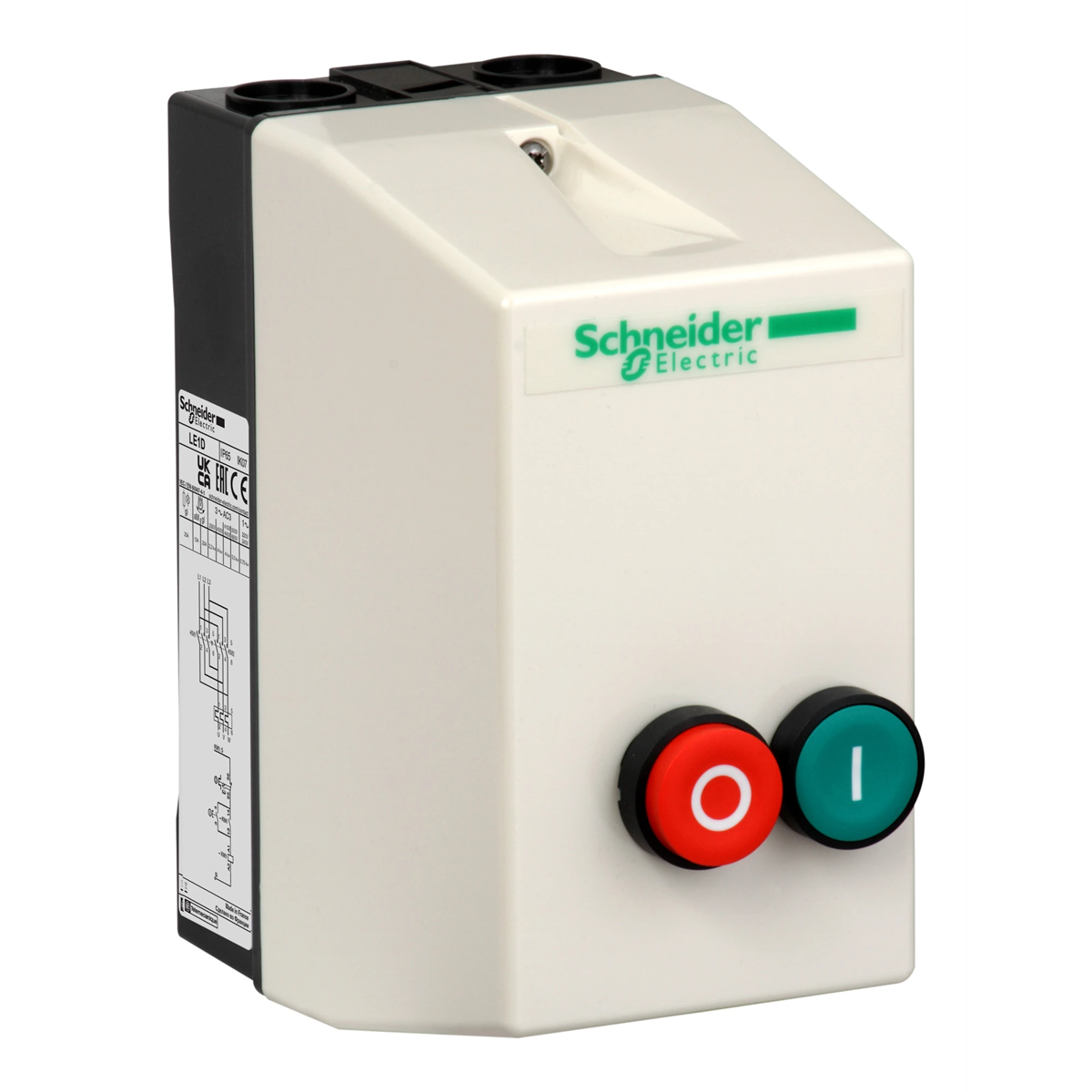

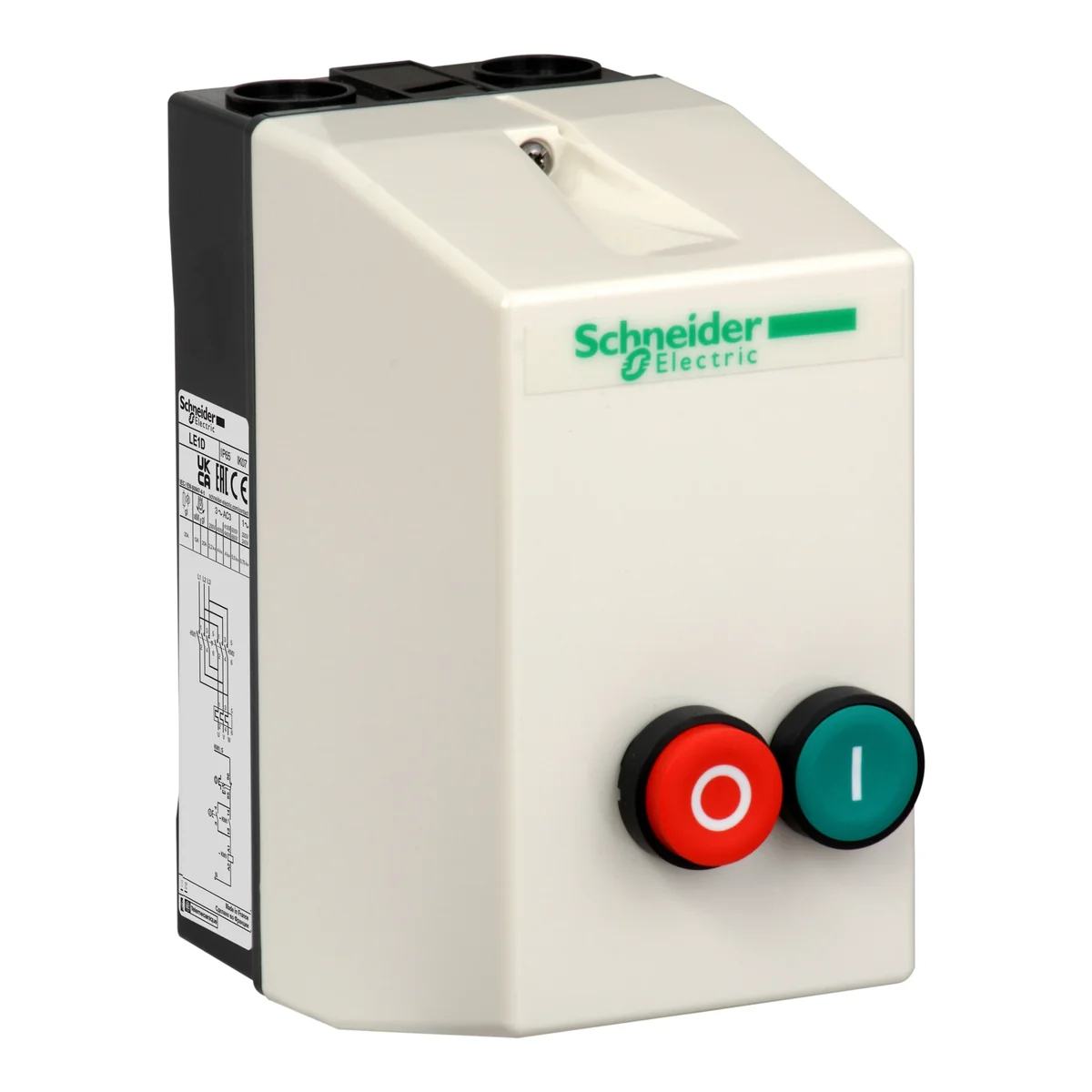

Motor starterIn TeSys LE 9A housing, 380VAC coil
Motor starterIn TeSys LE 9A housing, 380VAC coil

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP65
See full description
Price:
239,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

Motor starterIn TeSys LE 9A housing, 380VAC coil

Technical data

  • Level of security
    IP65
  • PKWIU
    27.12.23.0

Other technical data

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    380 ... 380 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    4 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    5.5 kW
  • Rated operation current at AC-3, 400 V
    9 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    No
  • Number of command positions
    2
  • Number of indicator lights
    0
  • With fuse
    No
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    166 mm
  • With short-circuit release
    No
  • Rated control supply voltage AC 60 Hz
    380 ... 380 V
  • Rated operation power at AC-3, 230 V, 3-phase
    2.2 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    4 kW
  • Rated operation current Ie
    9 A
  • Number of auxiliary contacts as normally open contact
    0
  • Ambient temperature, upper operating limit
    40 °C
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • External reset possible
    Yes
  • Degree of protection (IP)
    IP65
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    88 mm
  • Depth
    128.5 mm

Manufacturer details

  • Manufacturer
    "SCHNEIDER ELECTRIC POLSKA" SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Address
    02-673 UL. KONSTRUKTORSKA 12
  • E-mail
    poland.helpdesk@pl.schneider-electric.com
  • Tax identification number
    5220011965
