motor module MH-E16-2

local index:
API032FIFQ
Catalog No:
MH-E16-2
EAN code:
5908312593539
Manufacturer: F&F
Number of inputs: 16
Number of outputs: 16
Family: F&HOME
Price:
412,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

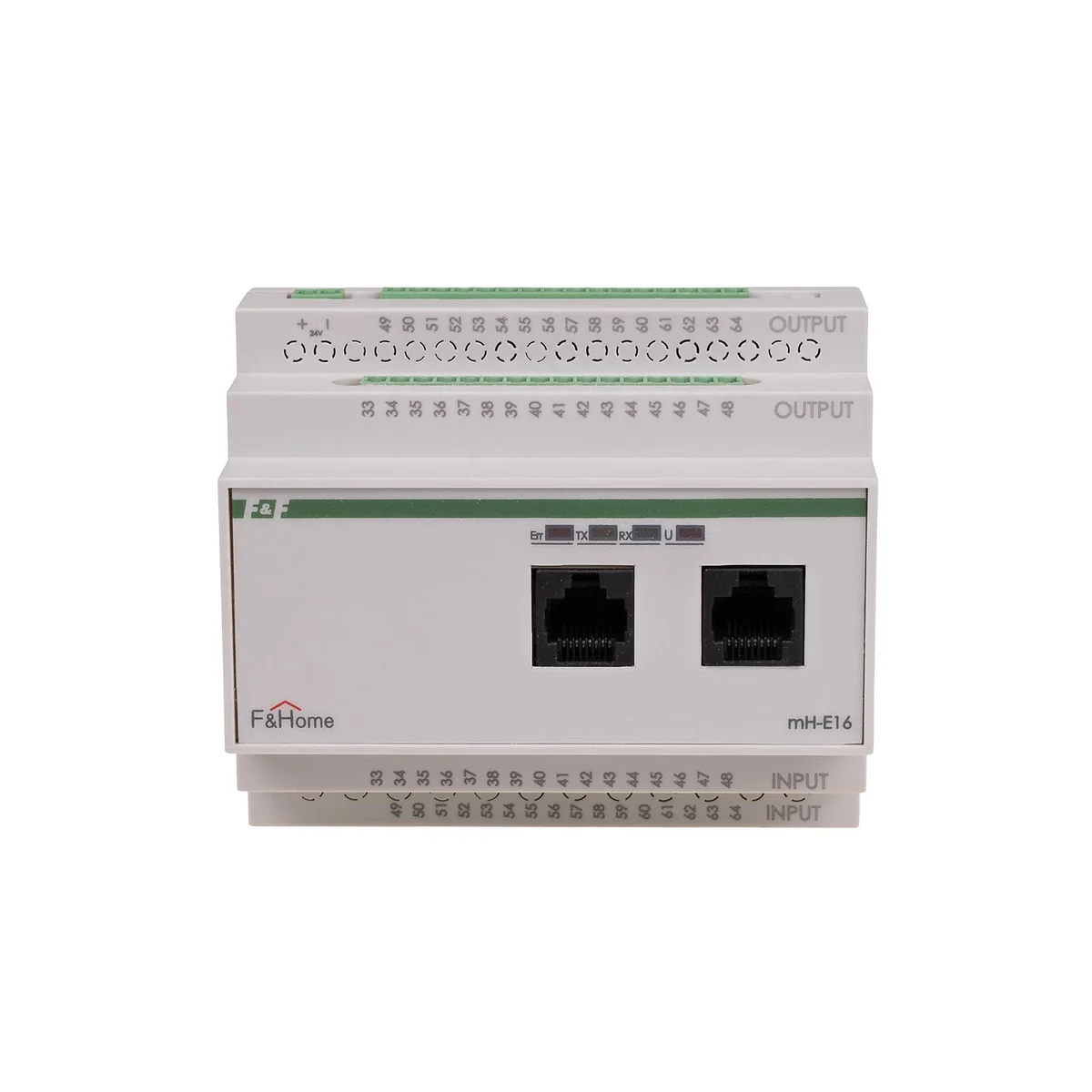

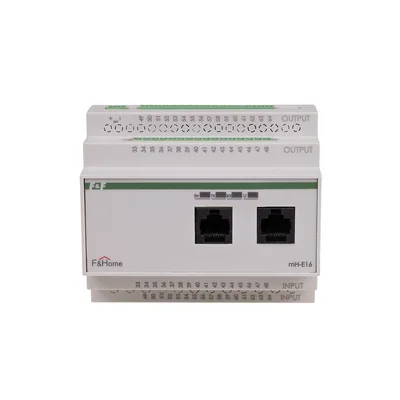

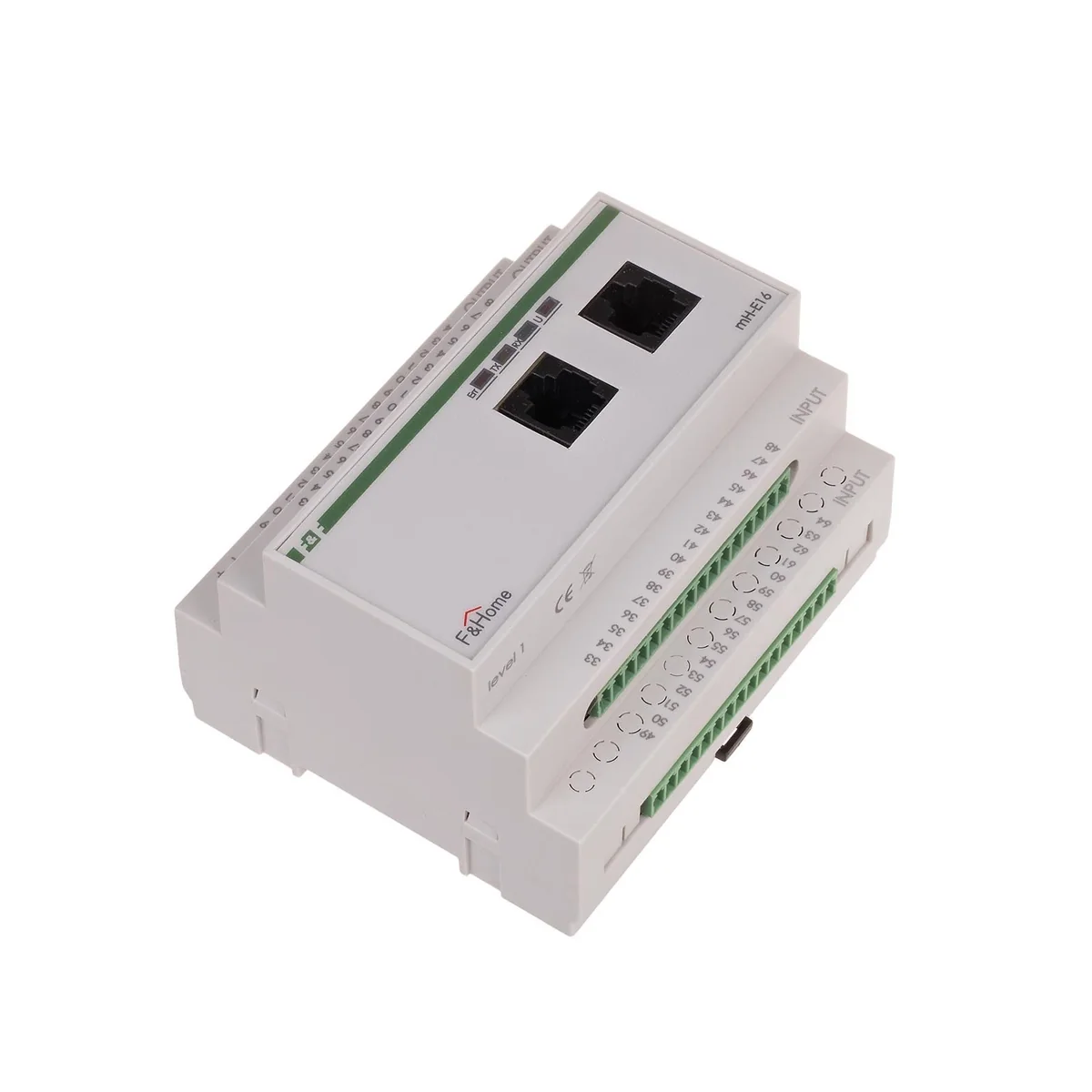

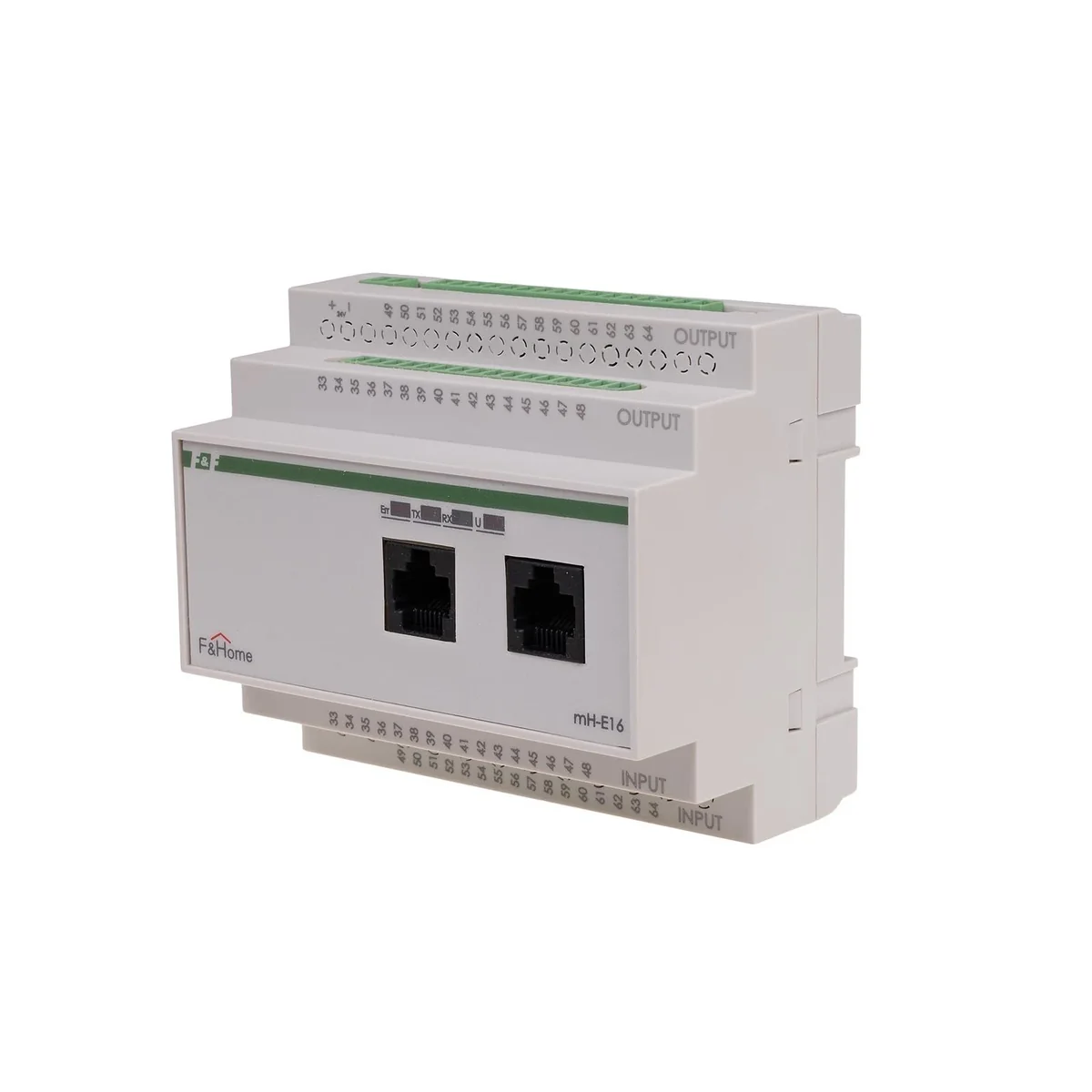

The mH-E16 motor module is dedicated to control all motor receivers. It is suitable both for controlling external roller shutters (anti-burglary) powered by 230V or 24V motors, as well as vertical and horizontal blinds.

Technical data

  • Number of inputs
    16
  • Family
    F&HOME
  • Package height [mm]
    90
  • Package weight [kg]
    0.3
  • PKWIU
    27.12.24.0
  • Number of outputs
    16
  • Level of security
    IP20
  • Package width [mm]
    105
  • Operating voltage range [V]
    20-26

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Mounting method
    Other
  • Number of inputs
    32
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    Other
  • With LED indication
    yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,260
Width (m) 0,104
Length (m) 0,119
Depth (m) 0,075
