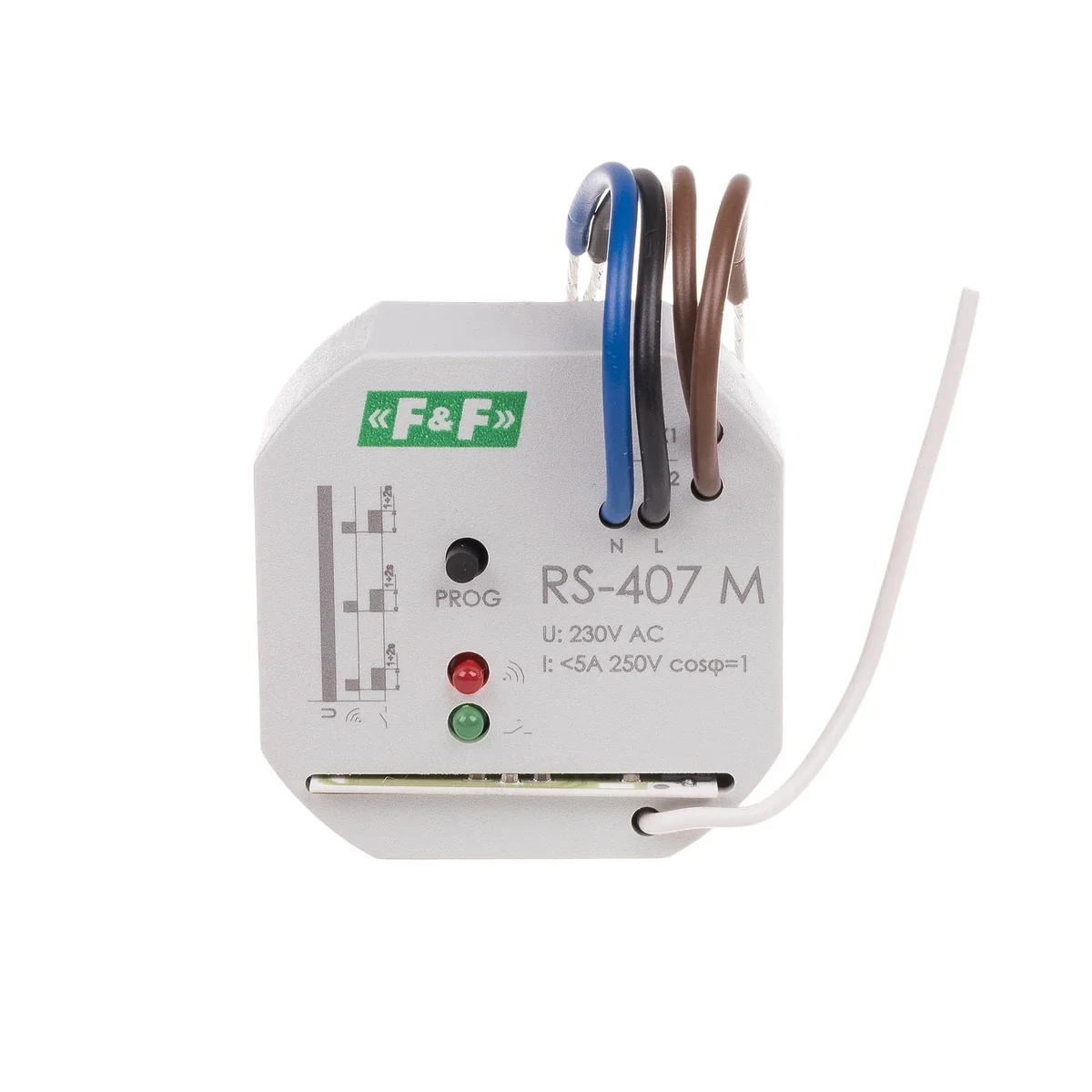

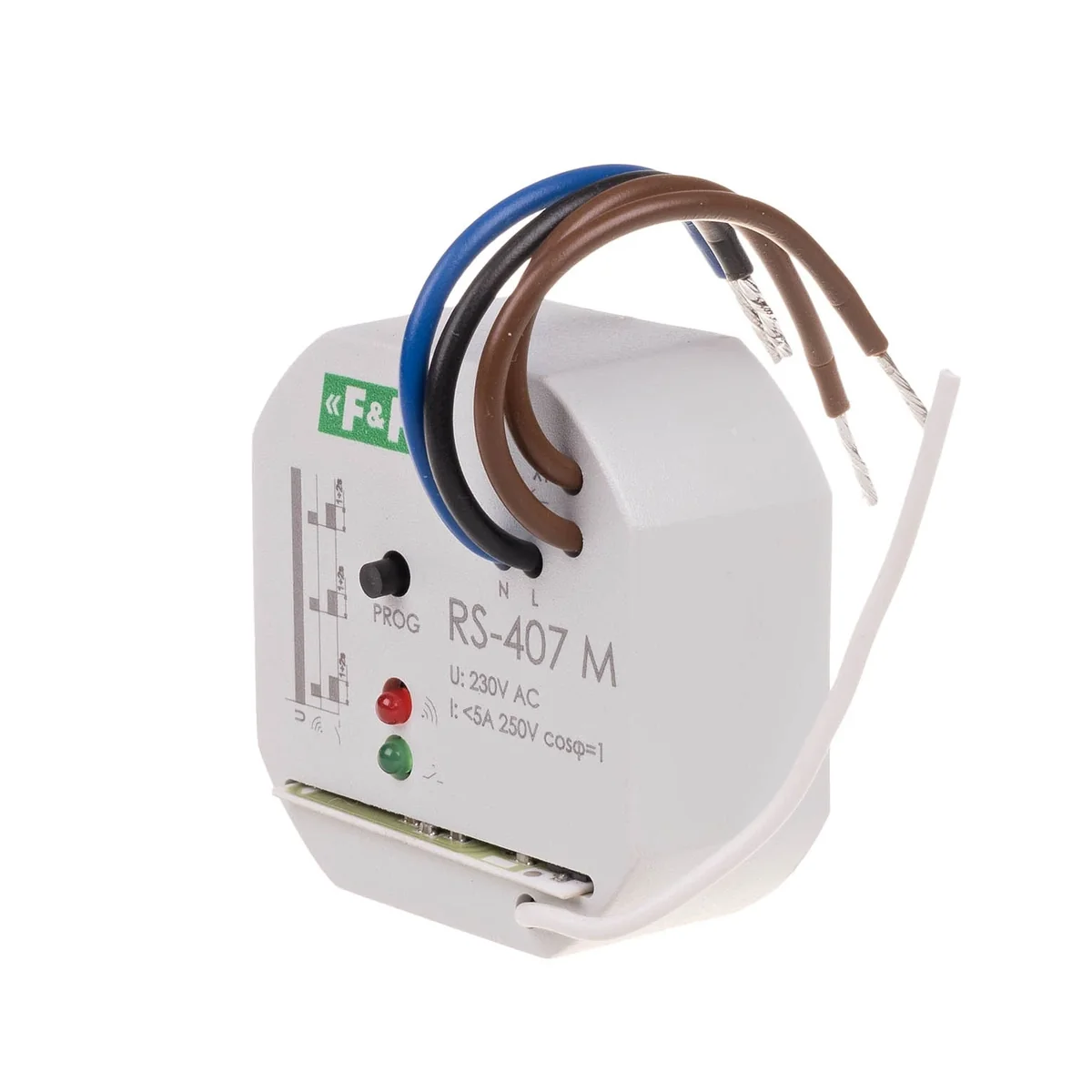

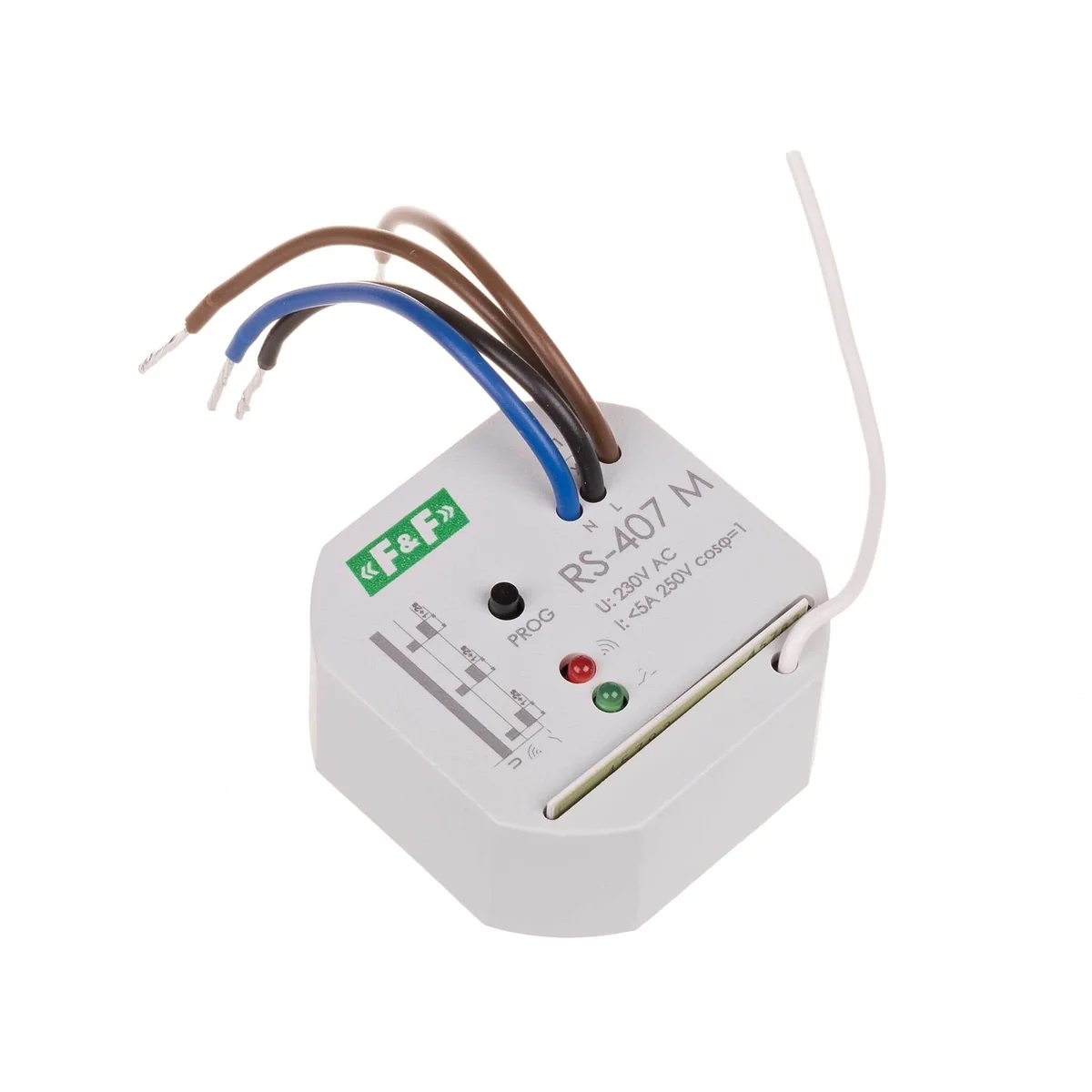

Monostable receiver RS-407 M RS-407M

local index:
APL123FIFQ
Catalog No:
RS-407M
EAN code:
5908312594451
Manufacturer: F&F
Power [W]: 0.8
Installation: Flush-mounted
Rated voltage [V]: 230
Price:
35,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic radio relays are used to remotely control gates, roller shutters, lighting, arming alarm systems, etc. A remote control system consisting of a transmitter (remote control) and a receiver (relay). It is possible to cooperate with many transmitters with one receiver and a single transmitter with many receivers.

Technical data

  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • connection
    4×LY 1mm, l=10cm
  • Contact
    1Z separated
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    13
  • Packaging diameter [mm]
    55
  • Installation
    Flush-mounted
  • load current [A]
    5
  • Family
    RS
  • Diameter [mm]
    55
  • Height [mm]
    13
  • Package weight [kg]
    0.15
  • PKWIU
    27.12.24.0

Other technical data

  • Suitable for pulse button
    Yes
  • Current supply
    230 V AC
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes
  • In housing
    Yes
  • Number of relays
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • Radio frequency
    868 MHz

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,055
Width (m) 0,080
Length (m) 0,070
Depth (m) 0,040
