el12 Automation Relays and drivers Other automation elements

Module 24VDC 16PT Basic set clamp, base STBDDI3725KC

local index:
API176SCHN
Catalog No:
STBDDI3725KC
EAN code:
3595863932980

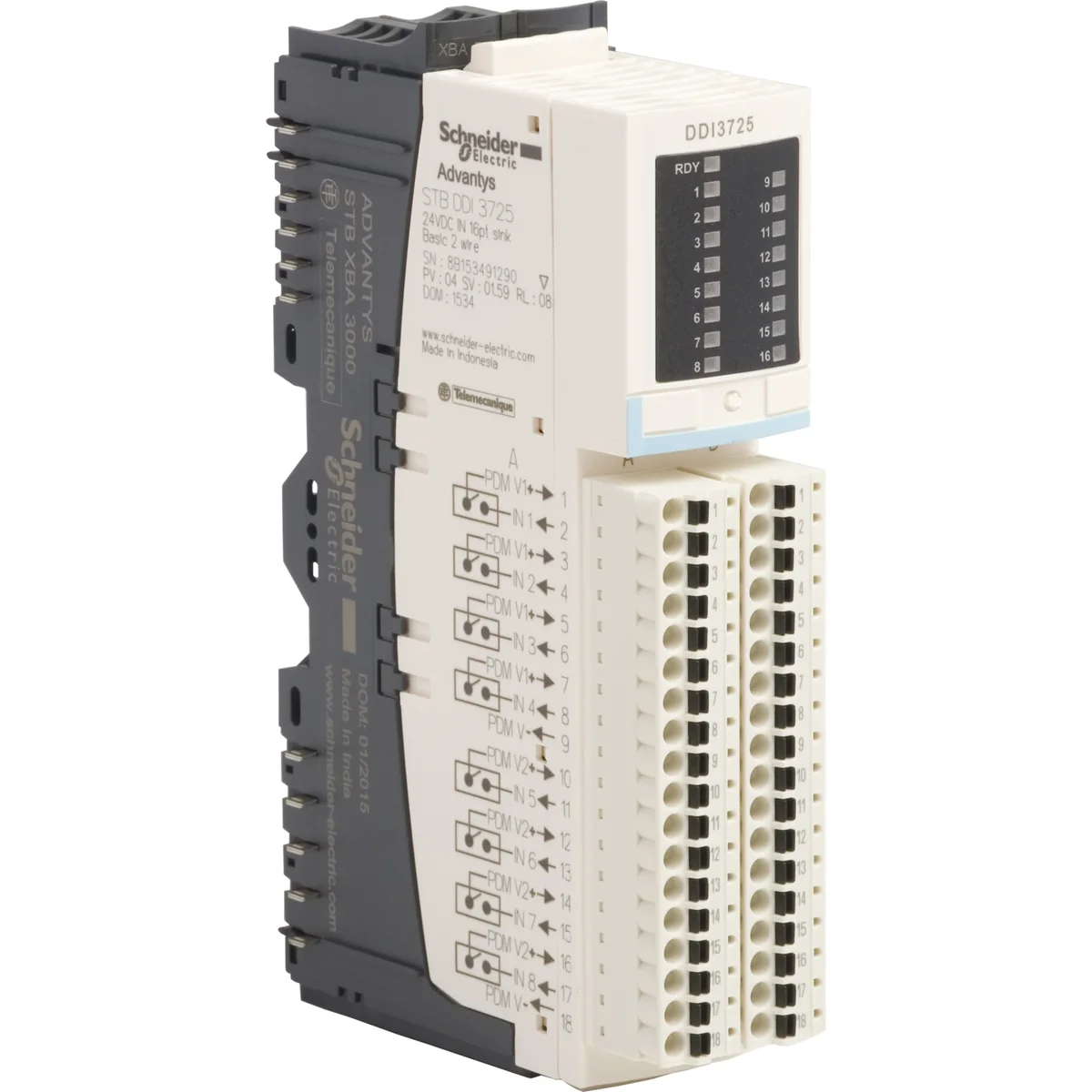

Module 24VDC 16PT Basic set clamp, base
Module 24VDC 16PT Basic set clamp, base

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 18.4
See full description
Price:
287,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data

Product description

Module 24VDC 16PT Basic set clamp, base

Technical data

  • Height [mm]
    18.4
  • PKWIU
    26.20.16.0

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Number of digital inputs
    16
  • Digital inputs configurable
    No
  • Input current at signal 1
    4.5 mA
  • Type of voltage (input voltage)
    DC
  • Type of output voltage
    DC
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Time delay at signal change
    2 ... 2 ms
  • Rail mounting possible
    No
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    18.4 mm
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    0
  • Digital outputs configurable
    No
  • Permitted voltage at input
    -3 ... 30 V
  • Type of digital output
    None
  • Short-circuit protection, outputs available
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    Yes
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    125 mm
  • Depth
    65.1 mm
See more >>
