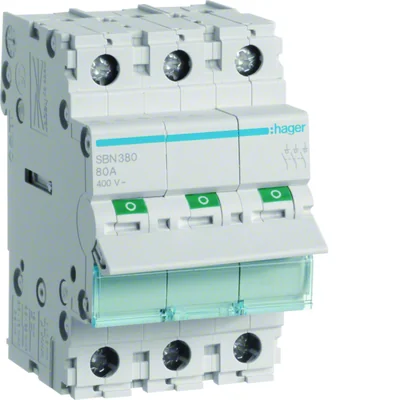

Modular switch disconnector, 3P 80A SBN380

Name: Modular switch disconnector, 3P 80A
Brand: HAGER
SKU: API034HAGE
Price: 128.54 PLN
Availability: BackOrder

Index local:

API034HAGE

Numéro de catalogue:

SBN380

Code EAN:

3250615510266

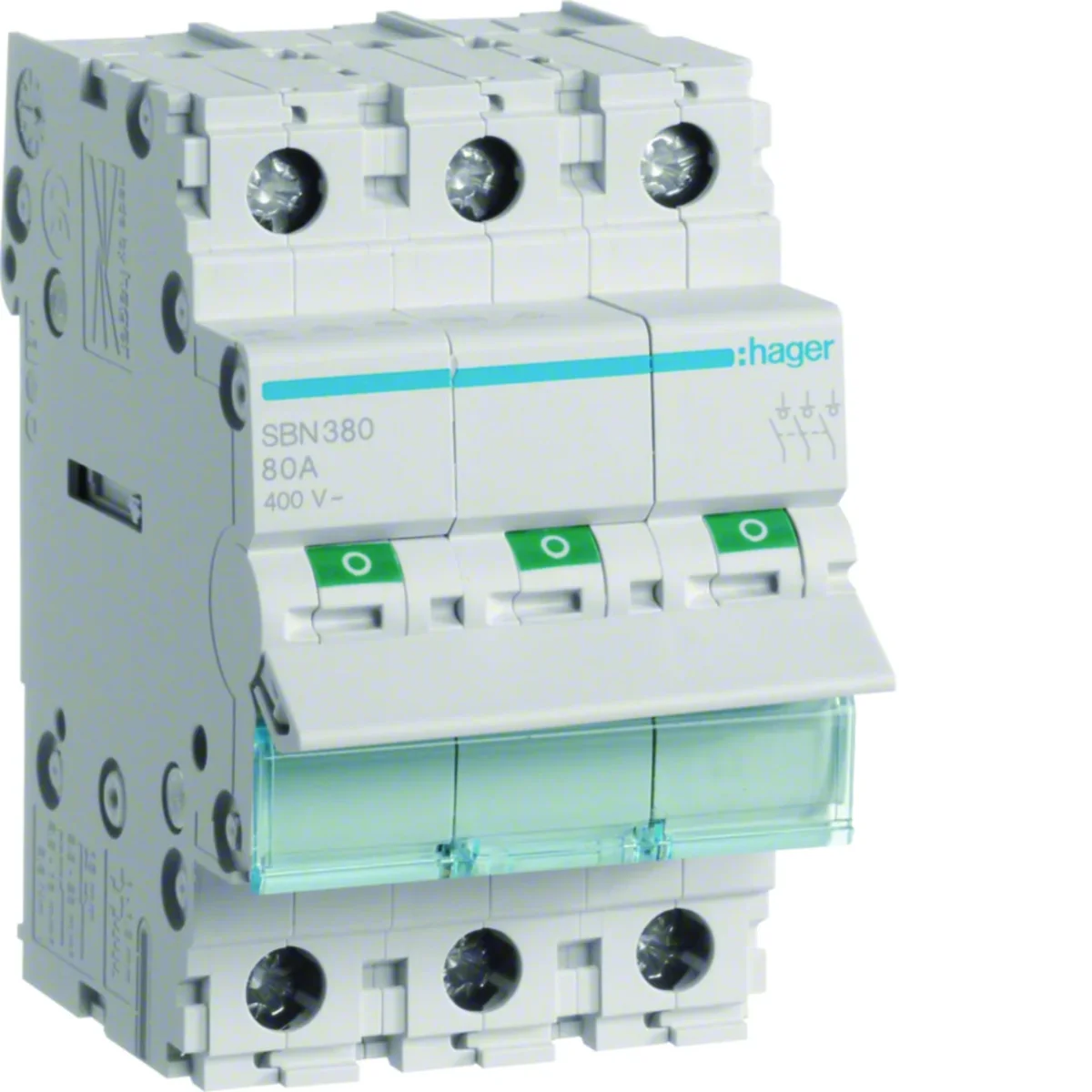

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 68

Number of poles: 3

Voir la description complète

Prix:

128,54 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Remote breaking
Switch disconnectors equipped with auxiliary contacts CA 1NO+1NC for connection of contact position signalling. Additional SD signaling contacts, triggers or a locking mechanism can be added as additional equipment.
Connection:
Switch main contacts:
• 16 mm² - stranded
• 25 mm² - wire
Switch disconnector auxiliary contacts:
• 0.5 to 4 mm² - stranded
• 1 to 6 mm² - wire
Compliance with the standards: PN-EN 60947-2 and PN-EN 60947-3
Connection category: AC-23A

Données techniques

Rated frequency [Hz]

50/60
Number of poles

3
Rated current [A]

80
Width [mm]

52.5
Height [mm]

83
Rated impulse voltage [kV]

6
Number of modules

3
PKWIU

27.33.11.0

Depth [mm]

68
Rated insulation voltage [V]

440
power loss [W]

8.1
Working temperature [°C]

-20 to 50
Mechanical durability (number of cycles)

40000
Connection type

With a screw
AC rated voltage [V]

230/400

Autres données techniques

Switching function

Off switch
Number of contacts as normally closed contact

0
Number of poles

3
Rated voltage

400 V
Rated switching capacity

1.354 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

68 mm
Imprint/indication

Other

Number of contacts as normally open contact

3
Number of contacts as change-over contact

0
Rated current

80 A
Min. rated voltage

400 V
Short-circuit breaking capacity (Icw)

0.96 kA
With signal lamp

No
Width in number of modular spacings

3
Degree of protection (IP)

IP20
Forced segregation according to DIN VDE 0113

No
