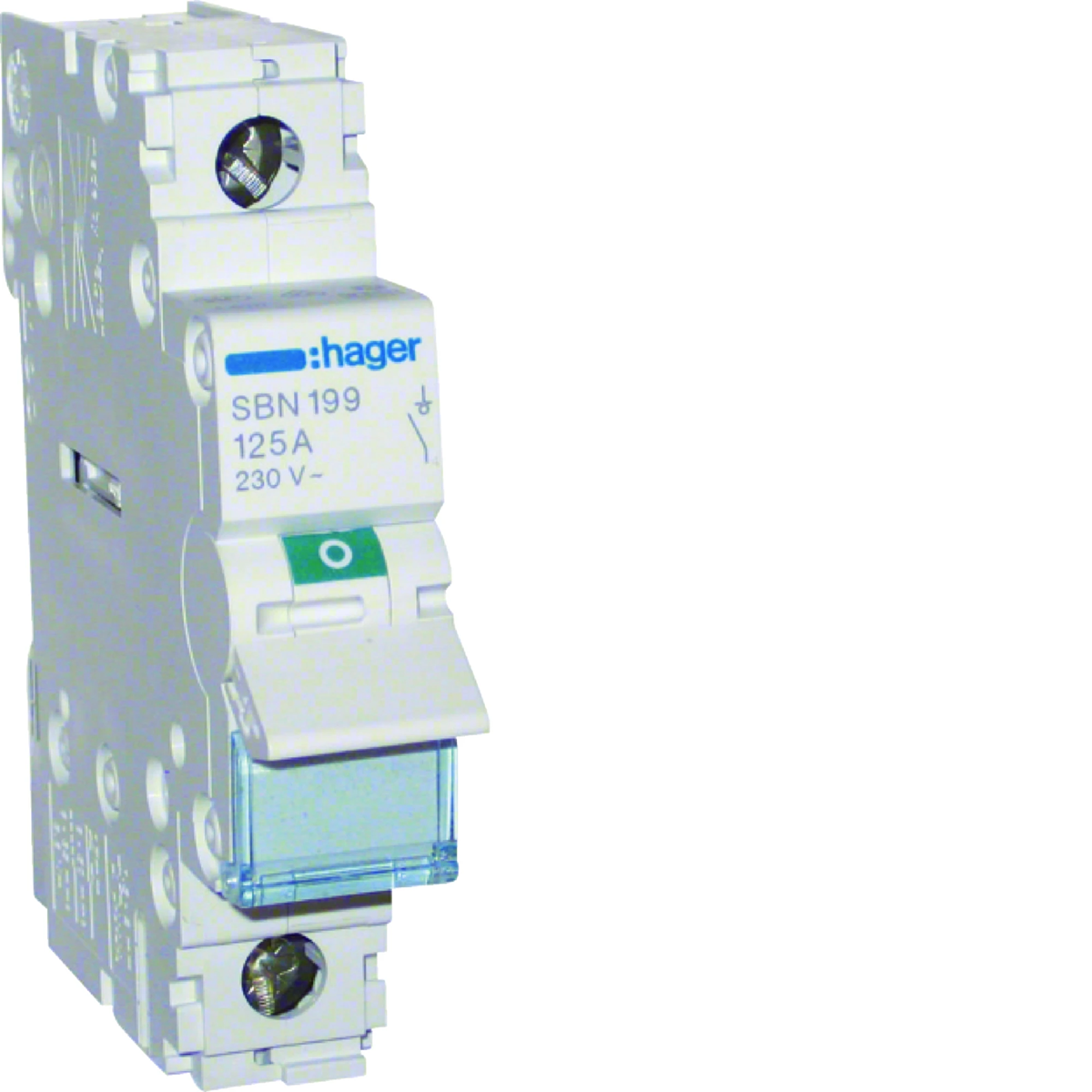

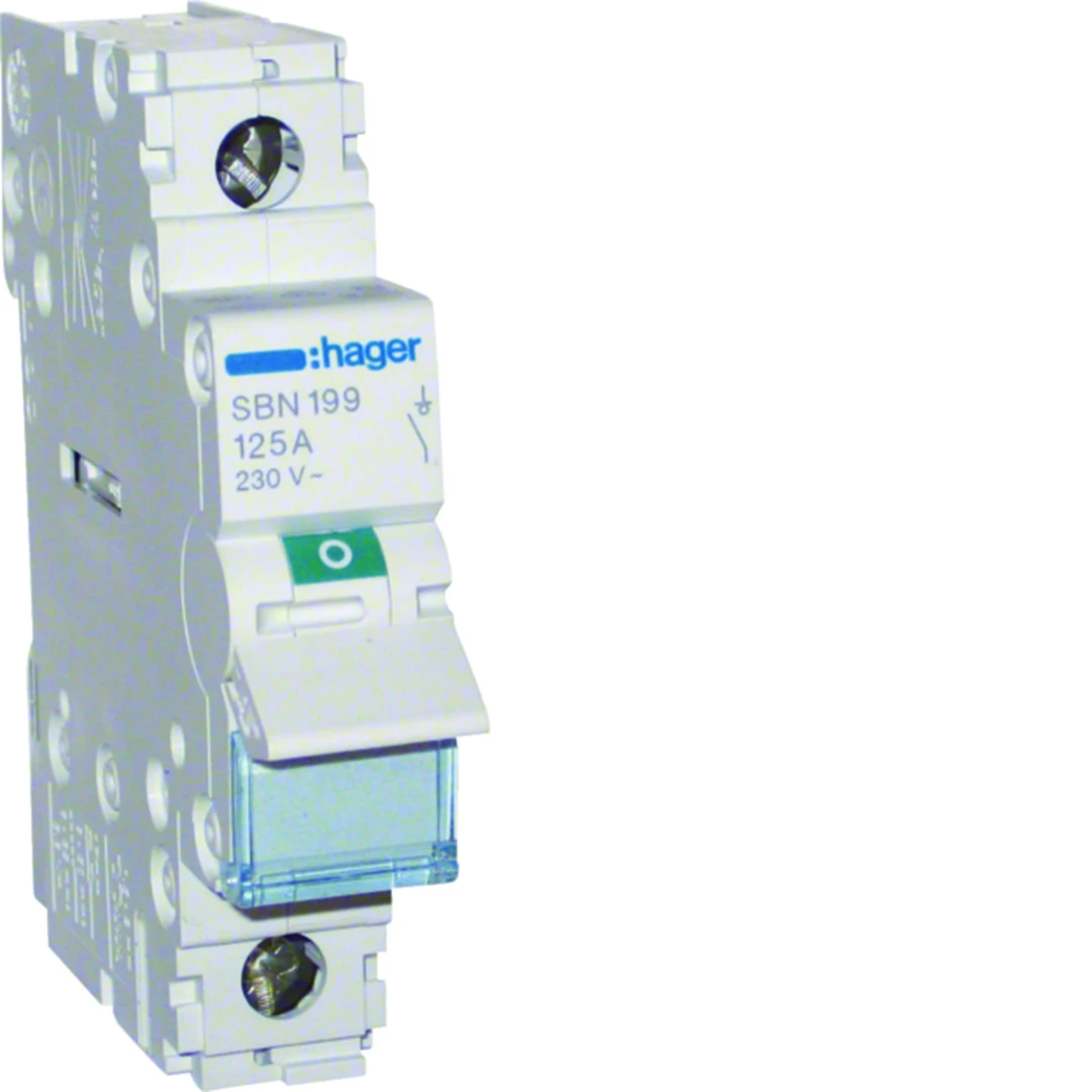

Modular switch disconnector, 1P 125A SBN199

local index:
API030HAGE
Catalog No:
SBN199
EAN code:
3250615510327
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 68
Number of poles: 1
Price:
14,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Remote breaking
Switch disconnectors equipped with auxiliary contacts CA 1NO+1NC for connection of contact position signalling. Additional SD signaling contacts, triggers or a locking mechanism can be added as additional equipment.
Connection:
Switch main contacts:
• 16 mm² - stranded
• 25 mm² - wire
Switch disconnector auxiliary contacts:
• 0.5 to 4 mm² - stranded
• 1 to 6 mm² - wire
Compliance with the standards: PN-EN 60947-2 and PN-EN 60947-3
Connection category: AC-23A

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    1
  • Rated current [A]
    125
  • Width [mm]
    17.5
  • Height [mm]
    83
  • Rated impulse voltage [kV]
    6
  • Number of modules
    1
  • PKWIU
    27.33.11.0
  • Depth [mm]
    68
  • Rated insulation voltage [V]
    440
  • power loss [W]
    8
  • Working temperature [°C]
    -20 to 50
  • Mechanical durability (number of cycles)
    40000
  • Connection type
    With a screw
  • AC rated voltage [V]
    230

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    1
  • Rated voltage
    230 V
  • Rated switching capacity
    2.115 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Rated current
    125 A
  • Min. rated voltage
    230 V
  • Short-circuit breaking capacity (Icw)
    1.5 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet
Quantity 1 pcs. 1 pcs. 108 pcs.
Weight (kg) 0,079 0,013 0,542
Width (m) 0,018 0,022 0,308
Length (m) 0,083 0,080 0,210
Depth (m) 0,073 0,095 0,357
