Modular relay 24V AC/DC 4z 789-552
local index:
APE013WAGO
Catalog No:
789-552
EAN code:
4017332929738
Price:
122,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular relay 24V AC/DC 4z
Technical data
-
Contact oscillation time [ms]1
-
ColorGray
-
Maximum switching voltage [V]250VAC
-
Contact materialAuAg10 + AgNi 15
-
Surge voltage [kV]2.5
-
Rated voltage EN [V]230
-
Nominal type of work100% cycle
-
Series789
-
Width [mm]17.5
-
Weight [g]52.3
-
Dielectric strength contact-coil (AC, 1 min) [kVrm]0.75
-
Conformity markCE
-
Accurate colorGray
-
Minimum stripping length [mm]5
-
Contact dropout time [ms]20
-
Maximum load current [A]4A
-
Maximum inrush current (resistive load) at 10% cycle-
-
Minimum switching power> 100 µA / 100 mV DC
-
Input voltage [V]24V AC/DC
-
Input rated current [mA]12 mA
-
Gauge [AWG]28
-
Degree of contamination2
-
Wire connection techniqueCAGE CLAMP®
-

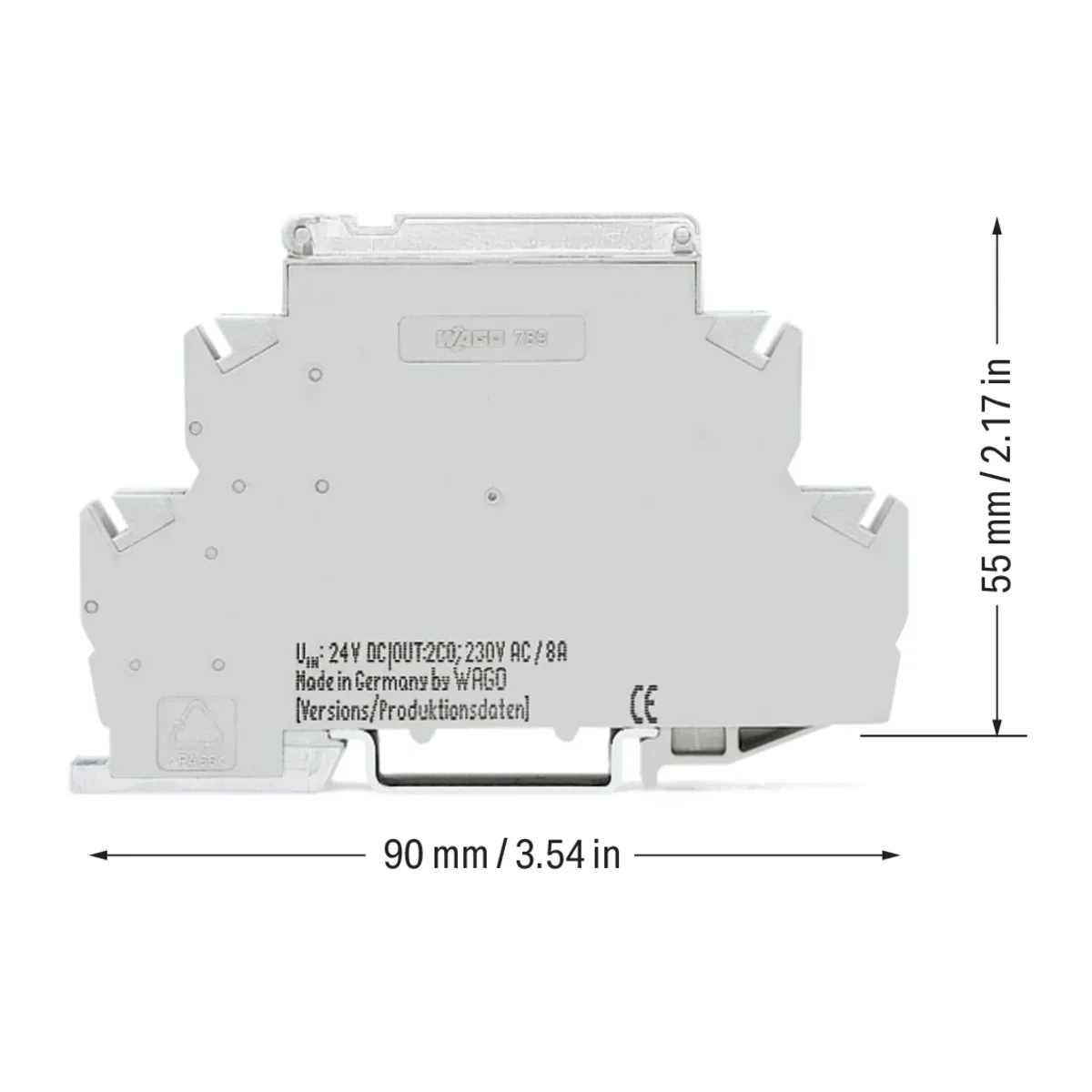

Height [mm]55
-
Input voltage range [V]UN -15% ... +10%
-
Tripping time [ms]20
-
Maximum stripping length [mm]6
Other technical data
-
Type of electric connectionSpring clamp connection
-
Nominal current4 A
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC/DC
-
Drive, switching attitudeMono stable
-

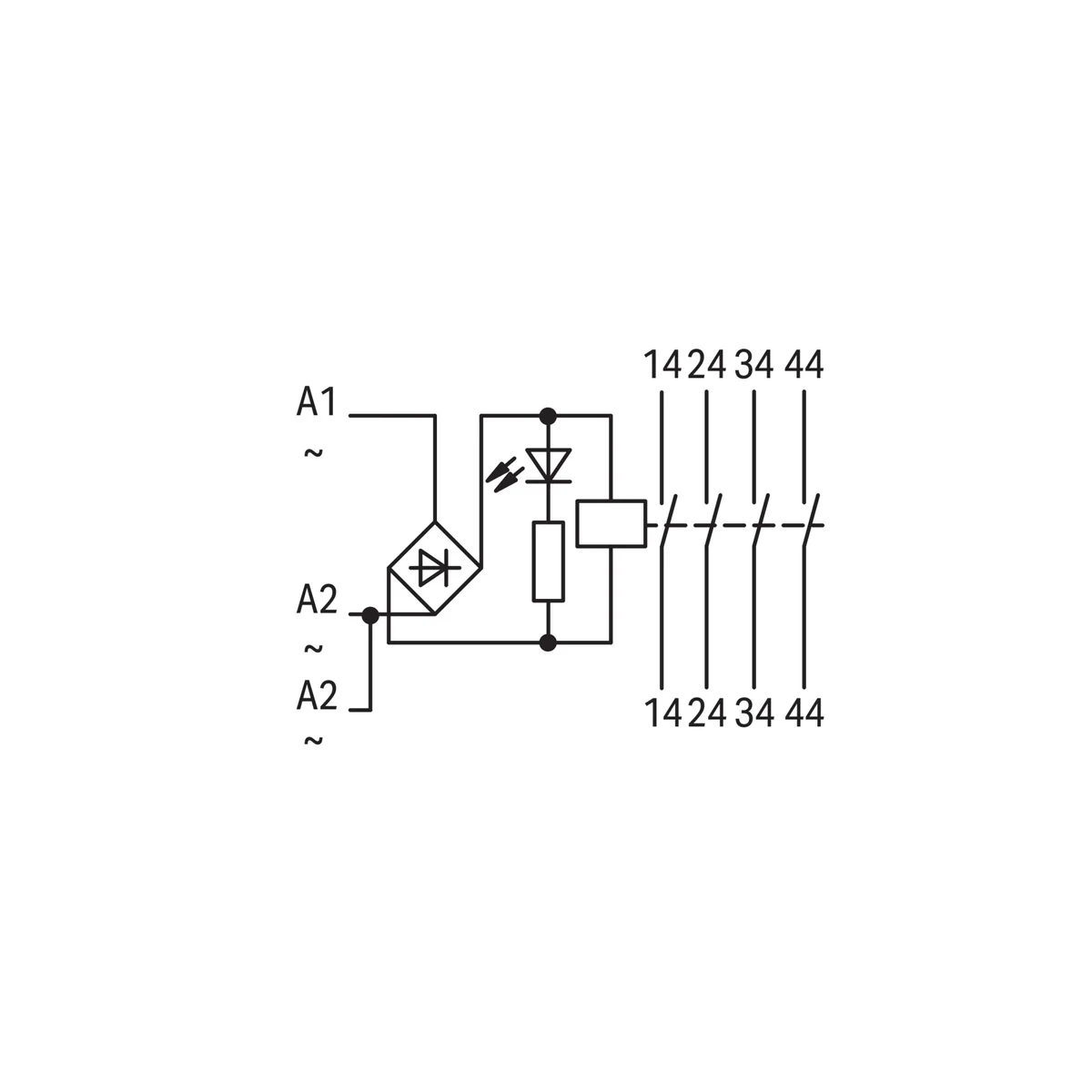

Number of contacts as normally open contact4
-
With forced-guided contactsNo
-
Complete with socketYes
-
Degree of protection (IP)IP20
-
Height55 mm
-
With detachable clampsNo
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC24 ... 24 V
-
Drive, polarizationPolarity free
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact0
-
Type of switch contactSingle contact
-
With LED indicationYes
-
Width17.5 mm
-
Depth90 mm
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 10 pcs. |
| Weight (kg) | 0,587 |
| Volume (m3) | 0,002 |
| Width (m) | 0,100 |
| Length (m) | 0,272 |
| Depth (m) | 0,084 |
