el12 Automation Relays and drivers Other automation elements
el12 sale You spend = You get

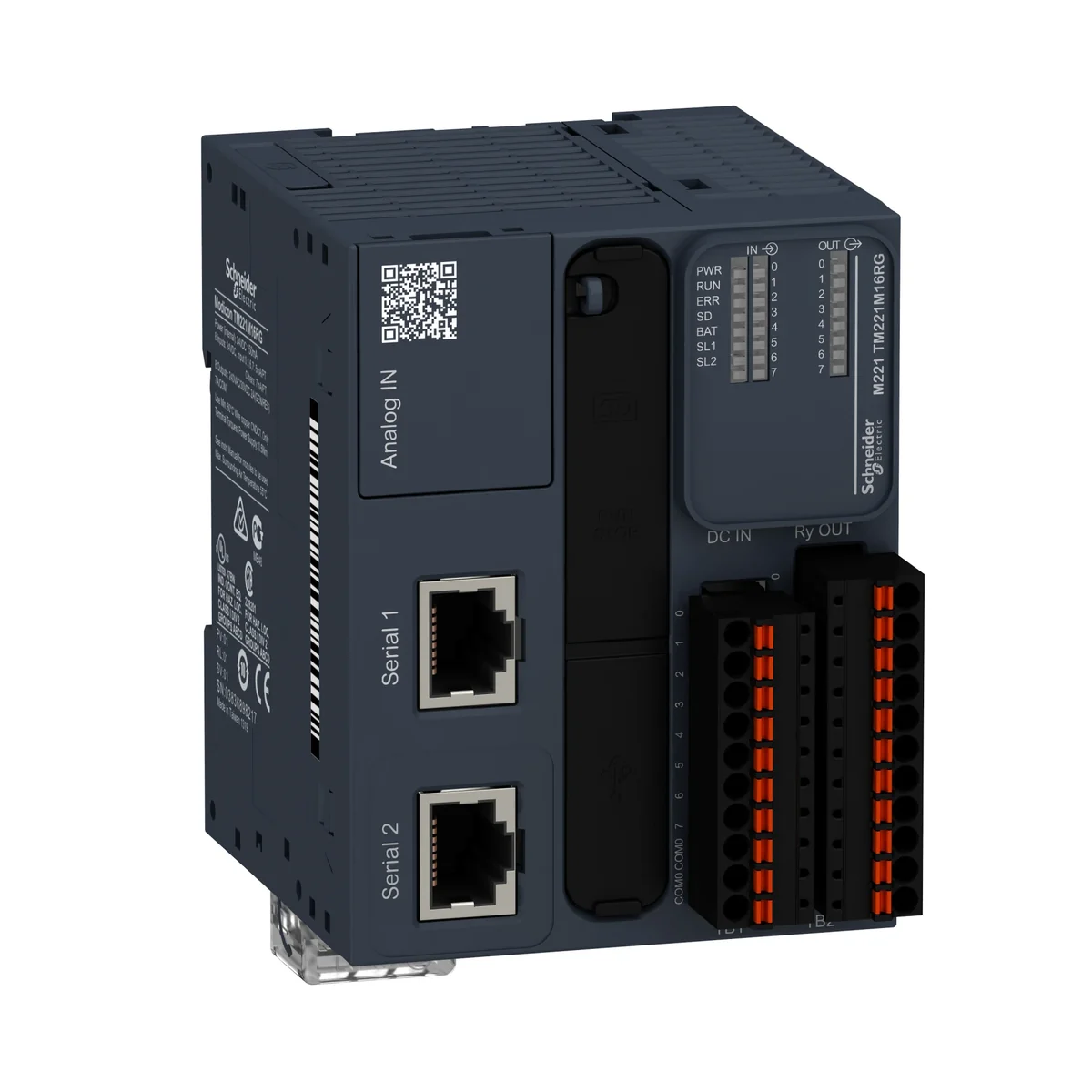

Modular controller, 2 x RJ45, 8 inputs, 8 relay outputs, 24 VDC, Modicon M221 spring terminals TM221M16RG

Lokaler Index:
API086SCHN
Katalognummer:
TM221M16RG
EAN-Code:
3606480611261
Modular controller, 2 x RJ45, 8 inputs, 8 relay outputs, 24 VDC, Modicon M221 spring terminals
Modular controller, 2 x RJ45, 8 inputs, 8 relay outputs, 24 VDC, Modicon M221 spring terminals

Klicken Sie auf das Foto, um es zu vergrößern

Preis:
1 432,70 zł
gross / stk.
(inklusive MwSt 23%)
2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Technische Daten Hersteller-Details Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

  • Supply voltage DC
    19.2 ... 28.8 V
  • Number of relay outputs
    8
  • Model
    Compact
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    2
  • Number of HW-interfaces RS-485
    2
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Number of analogue inputs
    2
  • Number of digital outputs
    8
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Supporting protocol for DNP3
    No
  • Supporting protocol for IEC 61850 Ethernet
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • Long-Term Evolution (LTE)
    No
  • System accessory
    No
  • With display
    No
  • Memory size
    512 kB
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    102 mm
  • Voltage type (supply voltage)
    DC
  • Max. number of time switches
    255
  • Processing time (1K, binary operation)
    0.2 ms
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces USB
    1
  • Number of HW-interfaces wireless
    0
  • Number of analogue outputs
    0
  • Number of digital inputs
    8
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Supporting protocol for IEC 60870
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • IO link master
    No
  • Redundancy
    No
  • Type of memory
    RAM
  • Additional program memory possible
    Yes
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    70 mm
  • Depth
    85 mm

Hersteller-Details

  • Hersteller
    Schneider Electric Polska
  • Adresse
    02-673 Warszawa Konstruktorska 12 Polska
  • E-Mail
    poland.helpdesk@se.com
