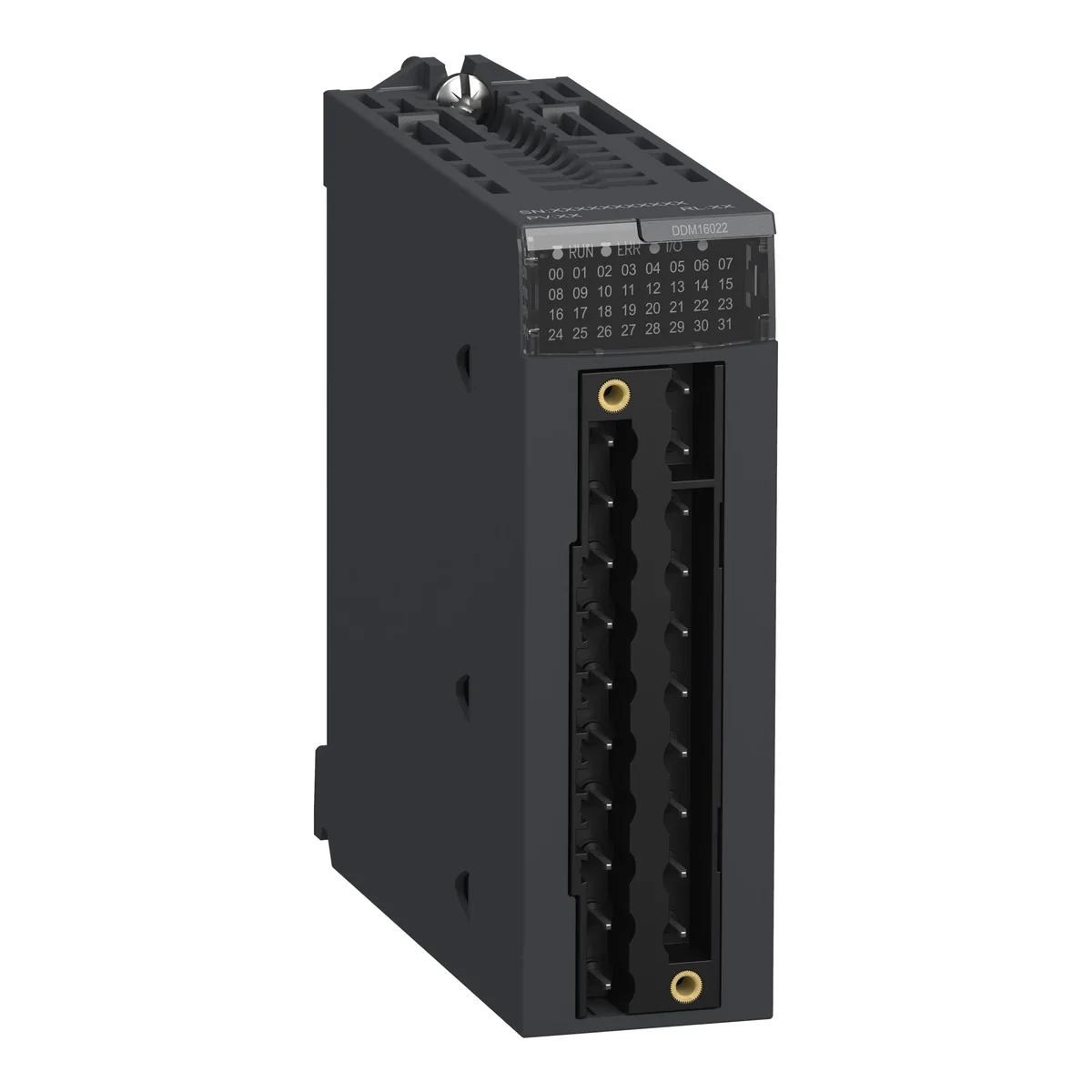

Modicon X80, digital input/output module, 8 inputs, 24 V DC, 8 outputs, semiconductor channels BMXDDM16022
local index:
API042SCHN
Catalog number:
BMXDDM16022
EAN code:
3595863910506
Manufacturer:
SCHNEIDER ELECTRIC
Price:
1 568,14 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU26.20.16.0
Other technical data
-
Supply voltage DC24 ... 24 V
-
Number of digital inputs8
-
Digital inputs configurableYes
-
Input current at signal 13.5 mA
-
Type of voltage (input voltage)DC
-
Output current0.5 A
-
Type of output voltageDC
-
RedundancyNo
-
Time delay at signal change4 ... 7 ms
-
SIL according to IEC 61508None
-
Appendant operation agent (Ex ia)No
-
Explosion safety category for gasNone
-
Width33 mm
-
Depth150 mm
-
Voltage type (supply voltage)DC
-
Number of digital outputs8
-
Digital outputs configurableYes
-
Permitted voltage at input19 ... 30 V
-
Type of digital outputTransistor
-
Permitted voltage at output19 ... 30 V
-
Short-circuit protection, outputs availableNo
-
Type of electric connectionPlug-in connection
-
Suitable for safety functionsNo
-
Performance level according to EN ISO 13849-1None
-
Appendant operation agent (Ex ib)No
-
Explosion safety category for dustNone
-
Height100 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
