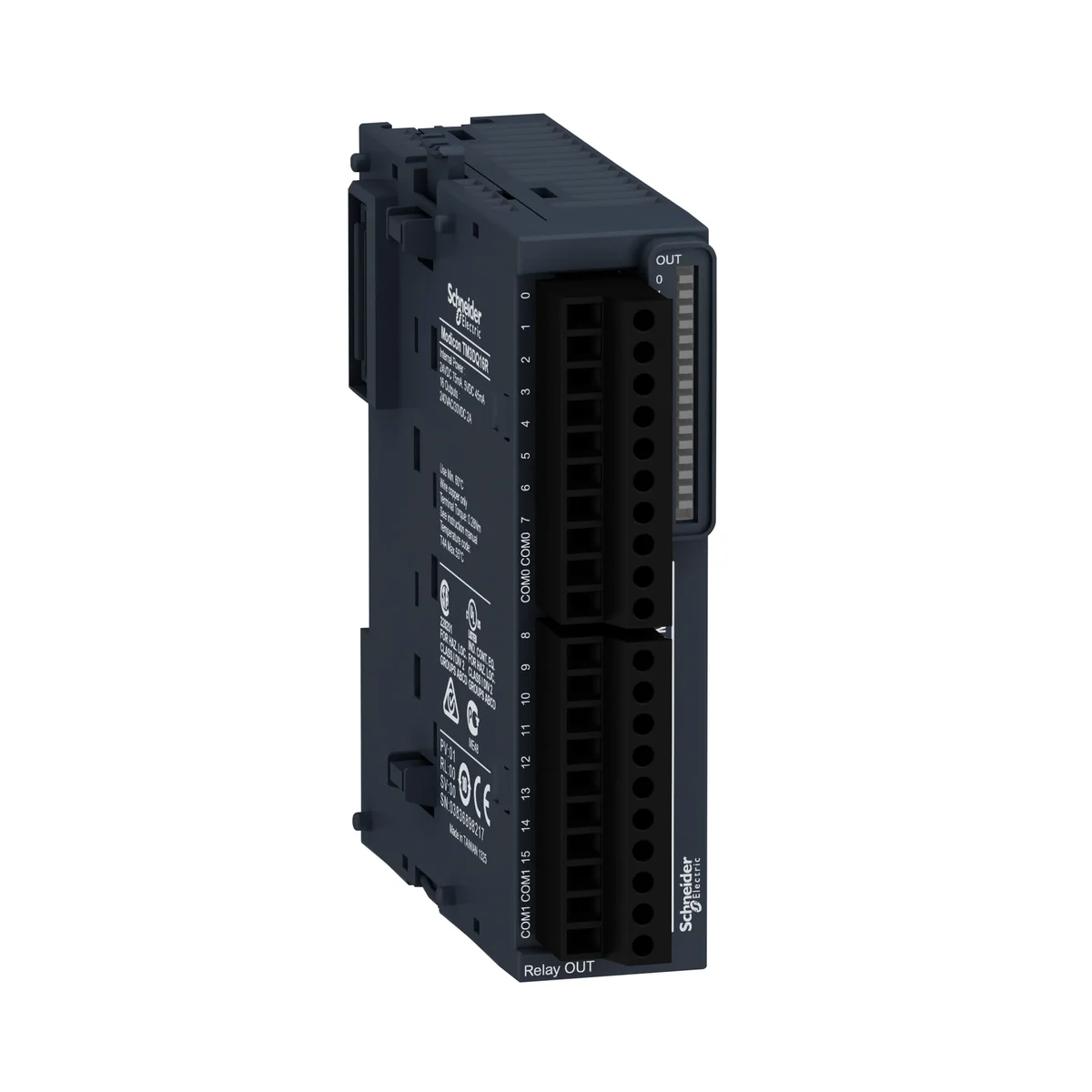

Modicon TM3 module 16 relay outputs TM3DQ16R
local index:
API190SCHN
Catalog number:
TM3DQ16R
EAN code:
3606480611445
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 90
Price:
945,81 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Modicon TM3 module 16 relay outputs
Technical data
-
Height [mm]90
-
PKWIU26.20.16.0
Other technical data
-
Supply voltage DC24 ... 24 V
-
Number of digital inputs0
-
Digital inputs configurableNo
-
Type of digital outputRelay
-
Permitted voltage at output30 ... 264 V
-
Short-circuit protection, outputs availableNo
-
Time delay at signal change10 ... 10 ms
-
SIL according to IEC 61508None
-
Appendant operation agent (Ex ia)No
-
Explosion safety category for gasNone
-
Width27.4 mm
-
Depth84.6 mm
-
Voltage type (supply voltage)DC
-
Number of digital outputs16
-
Digital outputs configurableNo
-
Output current2 A
-
Type of output voltageAC/DC
-
Type of electric connectionScrew connection
-
Suitable for safety functionsNo
-
Performance level according to EN ISO 13849-1None
-
Appendant operation agent (Ex ib)No
-
Explosion safety category for dustNone
-
Height90 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
