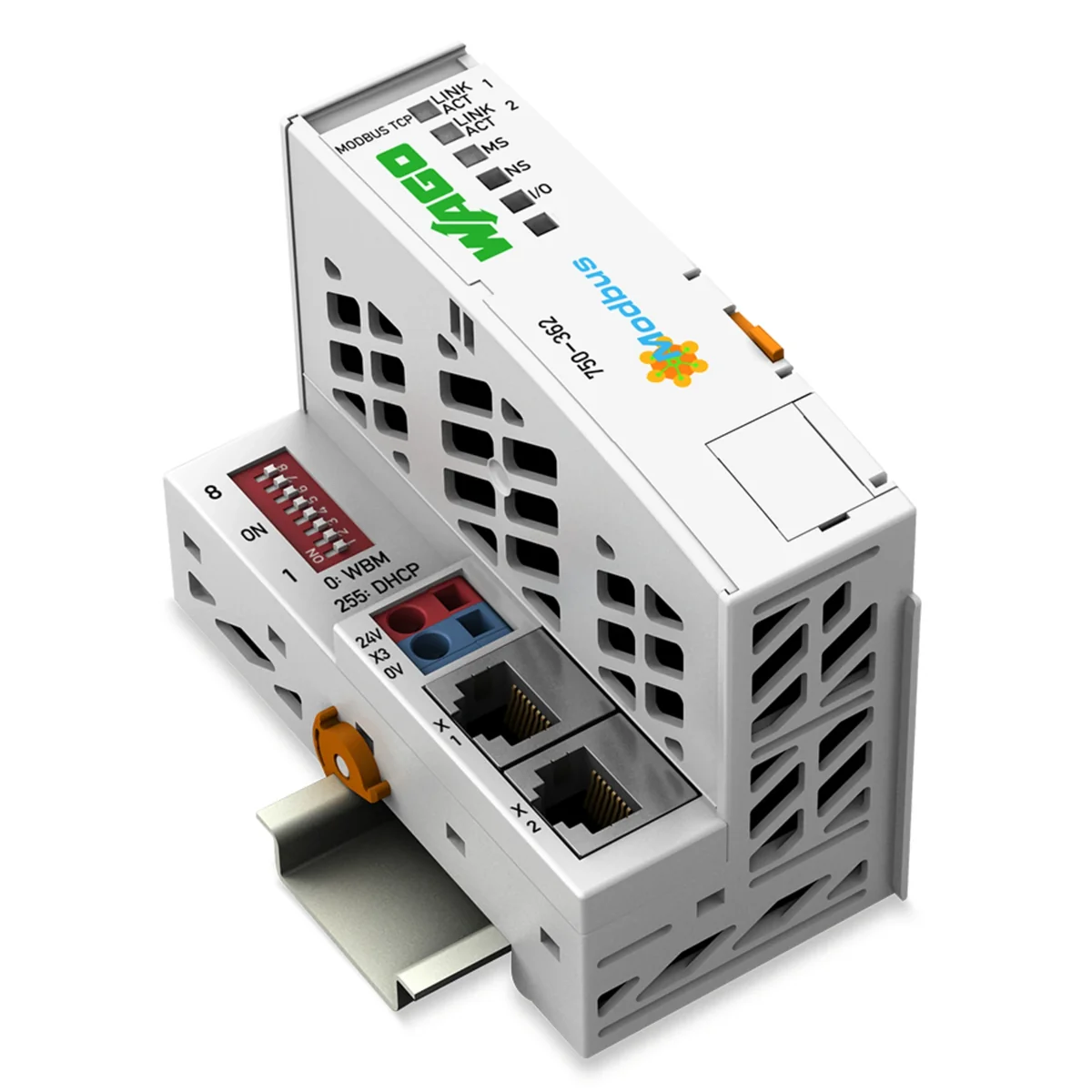

Modbus TCP network interface, 4th generation 750-362

Indice locale:
API091WAGO
Numero di catalogo:
750-362
Codice EAN:
4055143821421
Modbus TCP network interface, 4th generation
Modbus TCP network interface, 4th generation
Modbus TCP network interface, 4th generation
Modbus TCP network interface, 4th generation

Clicca sulla foto per ingrandire

Produttore: WAGO ELWAG
Prezzo:
1 227,91 zł
gross / pezzi
(inclusa IVA 23%)
2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Dati tecnici Dettagli del produttore Imballaggio sfuso

Dati tecnici

Altri dati tecnici

  • With integrated power supply
    Yes
  • Type of voltage (input voltage)
    DC
  • Number of HW-interfaces industrial Ethernet
    2
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces wireless
    0
  • With optical interface
    Yes
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Number of slots
    1
  • With pluggable modules, analogue I/O
    Yes
  • With pluggable modules, function and technology modules
    Yes
  • With pluggable modules, others
    Yes
  • With potential separation
    Yes
  • With bus coupler for modular station connection
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Certified for UL hazardous location class I
    Yes
  • Certified for UL hazardous location class III
    No
  • Certified for UL hazardous location division 2
    No
  • Certified for UL hazardous location group B (hydrogen)
    Yes
  • Certified for UL hazardous location group D (propane)
    Yes
  • Certified for UL hazardous location group F (carbonaceous dusts)
    No
  • Width
    49.5 mm
  • Depth
    71.9 mm
  • Input voltage DC
    24 ... 24 V
  • Max. input current DC
    0.28 A
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for EtherCAT
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • With pluggable modules, digital I/O
    Yes
  • With pluggable modules, communication modules
    Yes
  • With pluggable modules, central modules
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    No
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Certified for UL hazardous location class II
    No
  • Certified for UL hazardous location division 1
    Yes
  • Certified for UL hazardous location group A (acetylene)
    Yes
  • Certified for UL hazardous location group C (ethylene)
    Yes
  • Certified for UL hazardous location group E (metal dusts)
    No
  • Certified for UL hazardous location group G (non-conductive dusts)
    No
  • Height
    96.8 mm

Dettagli del produttore

  • Produttore
    WAGO GmbH & Co. KG
  • Indirizzo
    32423 Minden Hansastraße 27 Niemcy
  • Email
    wago.elwag@wago.com

Imballaggio sfuso

Una specie di pacchetto Karton
Quantità 1 pezzi
Peso (kg) 0,133
Volume (m3) 0,000
Larghezza (m) 0,056
Lunghezza (m) 0,104
Profondità (m) 0,074
