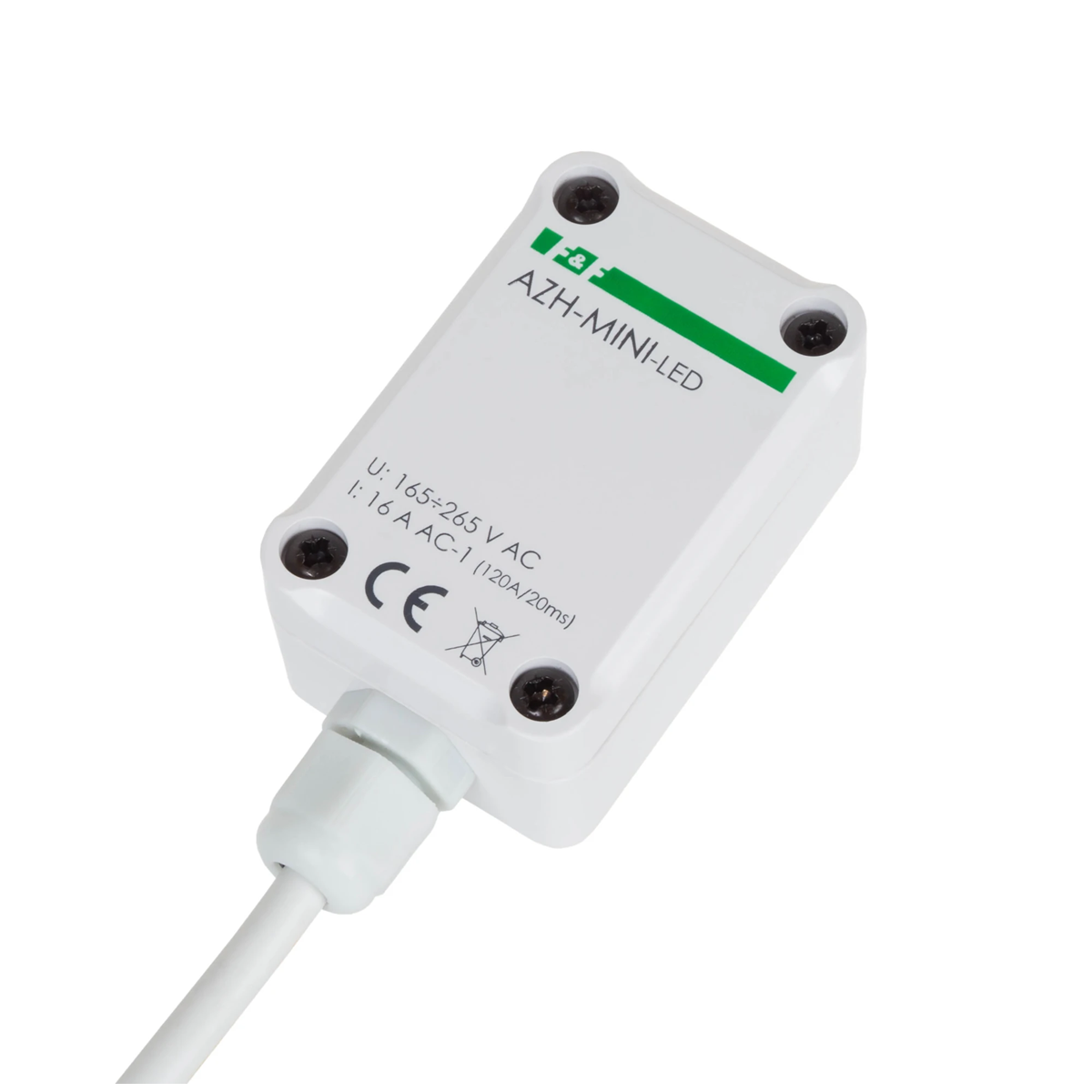

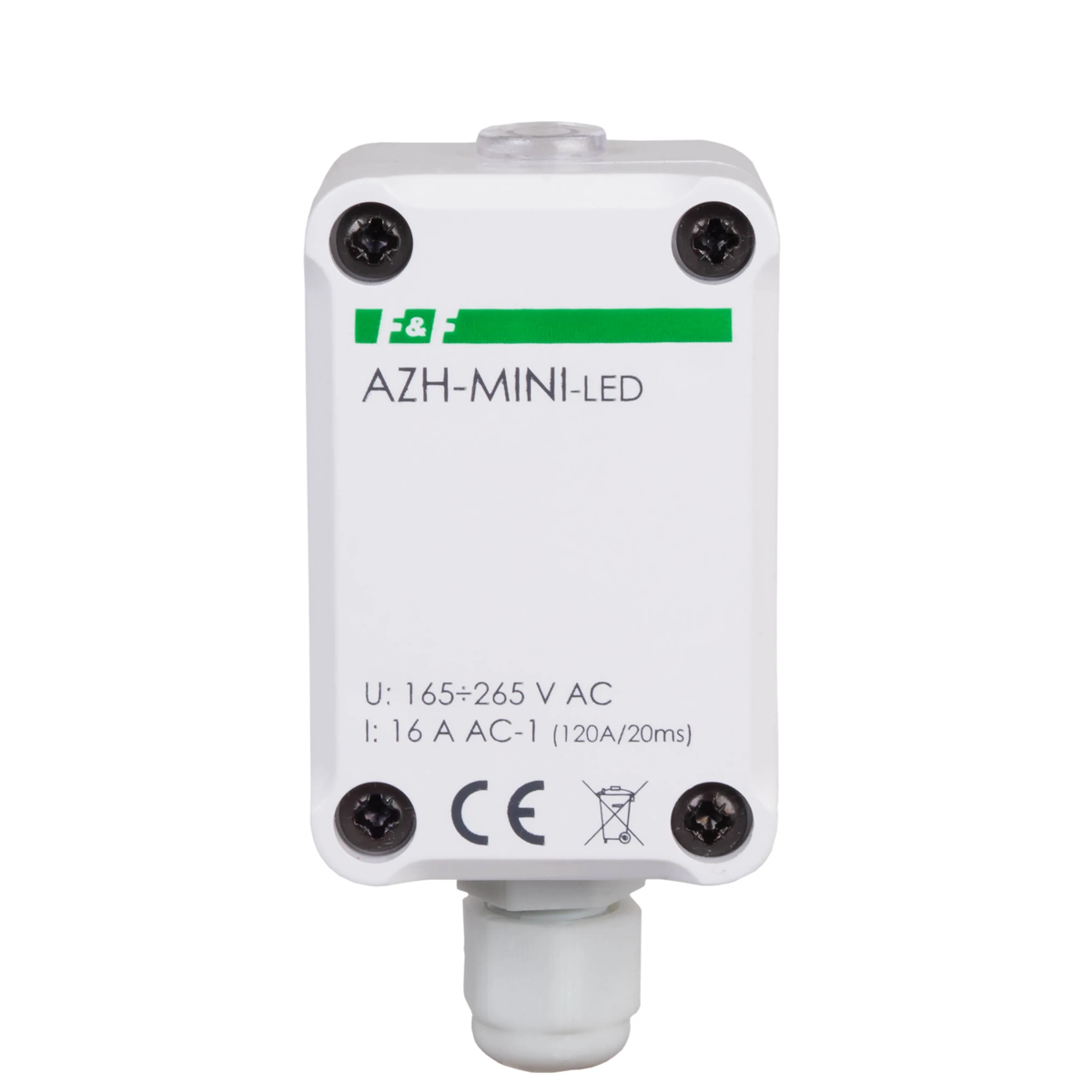

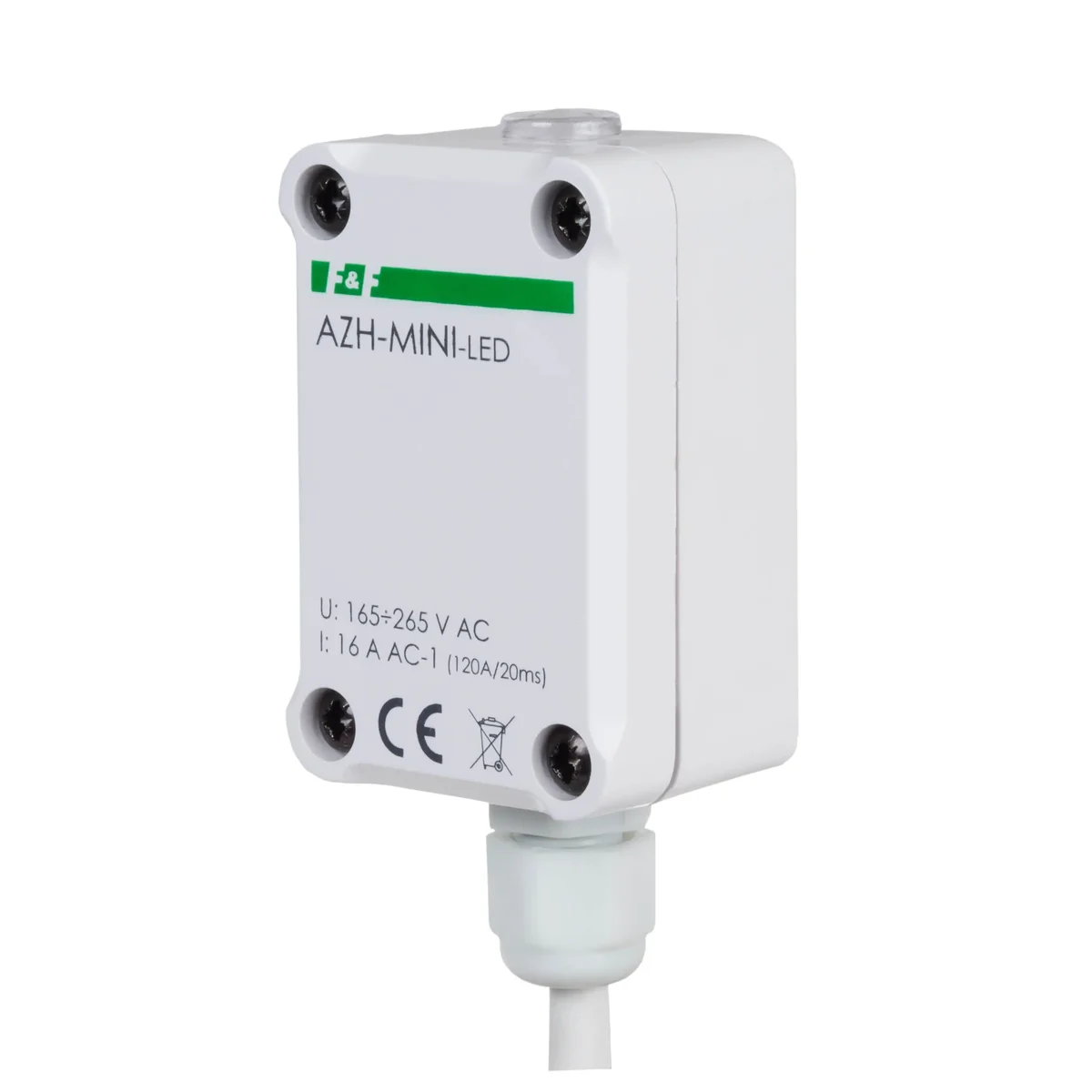

Miniature twilight automaton 230 V AZH-MINI-LED

local index:
APF011FIFQ
Catalog No:
AZH-MINI-LED
EAN code:
5902431673967
Manufacturer: F&F
Maximum load current [A]: 16
Installation: Surface-mounted
Rated voltage [V]: 230
Price:
21,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature twilight switch from the manufacturer F&F. The product catalog number is AZH-MINI-LED. It is used to control LED light sources or other energy receivers that generate strong current surges when switched on. With built-in light sensor. has  hermetic housing. It is adapted to switch on LED lighting. LED lighting, despite its energy efficiency, generates strong current surges when switched on, which effectively destroys classic relays. The AZH-MINI-LED automatic device successfully copes with switching on and off the LED lighting. The use of a switching element guarantees correct operation with current pulses up to 120 A/20 ms.



Parameters

  • Supply voltage tolerance: -10 ÷ 10%.
  • Maximum AC-1 load current: 16 A.
  • Pin configuration: 1 × NO.
  • Surge current resistance - cooperation with LED: 160 A/20 ms.
  • Hysteresis: approx. 15 Lx.

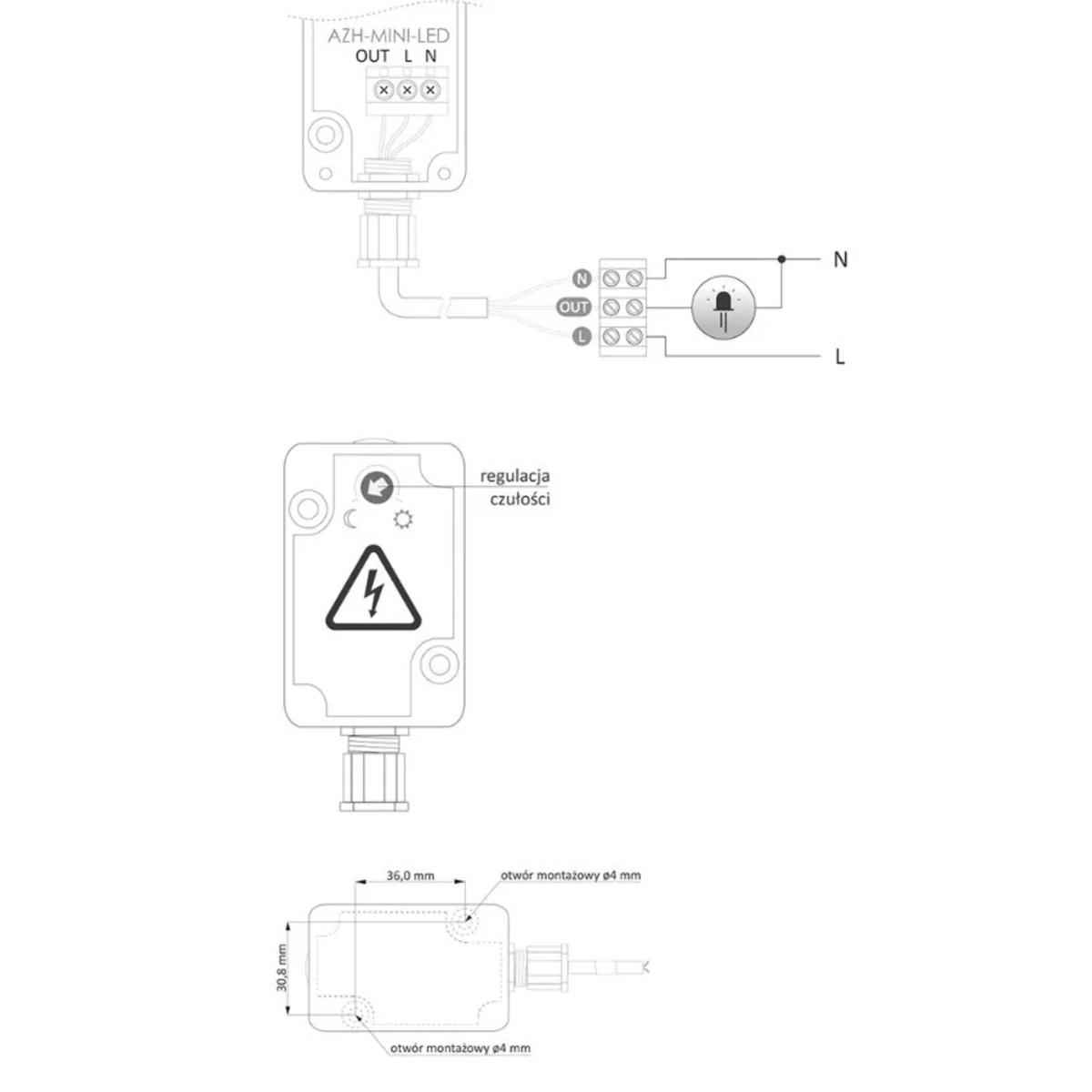

  • Connection : OMY 3×0.75mm²; length 0.5 m.
  • Operating temperature: -25 ÷ 50°C.
  • Dimensions: 42×64×30mm.

Technical data

  • Maximum load current [A]
    16
  • Rated voltage [V]
    230
  • Shutdown activation delay [s]
    20
  • Actuation threshold - adjustable [Lx]
    2 ÷ 1000
  • AC supply voltage [V]
    100÷265
  • Installation
    Surface-mounted
  • ON delay [s]
    10
  • Power consumption [W]
    0.6
  • Level of security
    IP65
  • PKWIU
    27.12.24.0

Other technical data

  • Type of sensor
    Built-in light sensor
  • Switch-off delay
    20 s
  • Max. switching power
    1500 W
  • With automatic night switch-off
    No
  • Swivelling
    No
  • Material quality
    Other
  • Surface protection
    Other
  • Colour
    Other
  • Transparent
    No
  • Max. switching current (resistive load)
    10 A
  • Contacts
    1 make contact (NO)
  • Switching-on delay
    10 s
  • Suitable for C-load
    Yes
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7035
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP65
