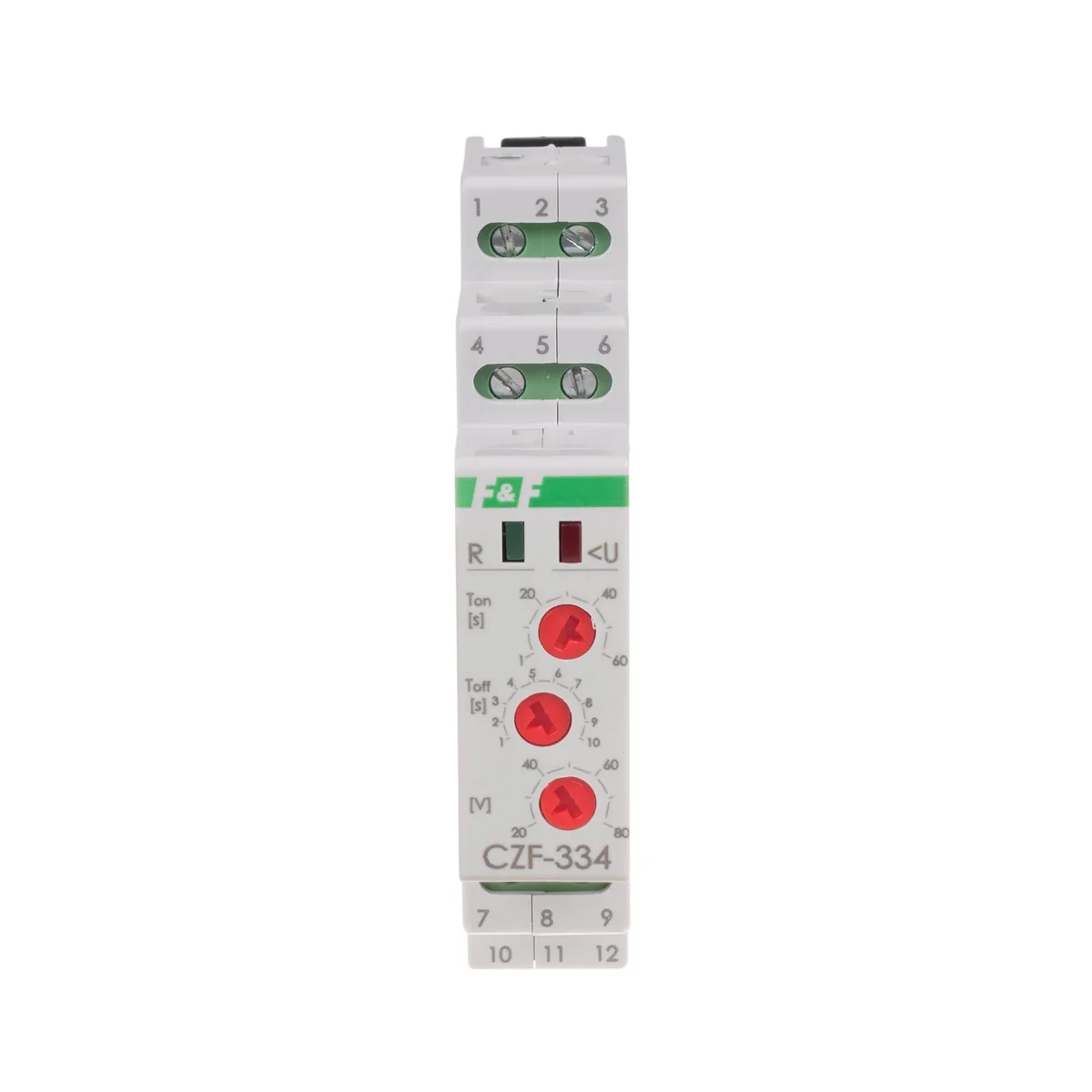

Microprocessor phase loss sensor with adjustable asymmetry threshold - 2 separated contacts 2NO/NC, True RMS CZF-334-TRMS
local index:
APL040FIFQ
Catalog number:
CZF-334-TRMS
EAN code:
5902431672540
Manufacturer:
F&F
Price:
259,04 zł
gross / pcs.
(including VAT 23%)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Type of electric connectionScrew connection
-
External power supply requiredYes
-
Supply voltage AC 50 Hz150 ... 280 V
-
Phase failure detectionYes
-
Function over voltage detectionYes
-
Min. adjustable delay-on energization time1 s
-
Min. adjustable off-delay time1 s
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Operating voltage AC 50 Hz150 ... 280 V
-
Width0 mm
-
Depth0 mm
-
With detachable clampsNo
-
Voltage type (supply voltage)AC
-
Phase sequence monitoringNo
-
Function under voltage detectionYes
-
Phase imbalance monitoringYes
-
Max. permitted delay-on energization time60 s
-
Max. permitted off-delay time1 s
-
Number of contacts as normally open contact0
-
Voltage type (operating voltage)AC
-
Rated switch current6 A
-
Height0 mm
