F&F

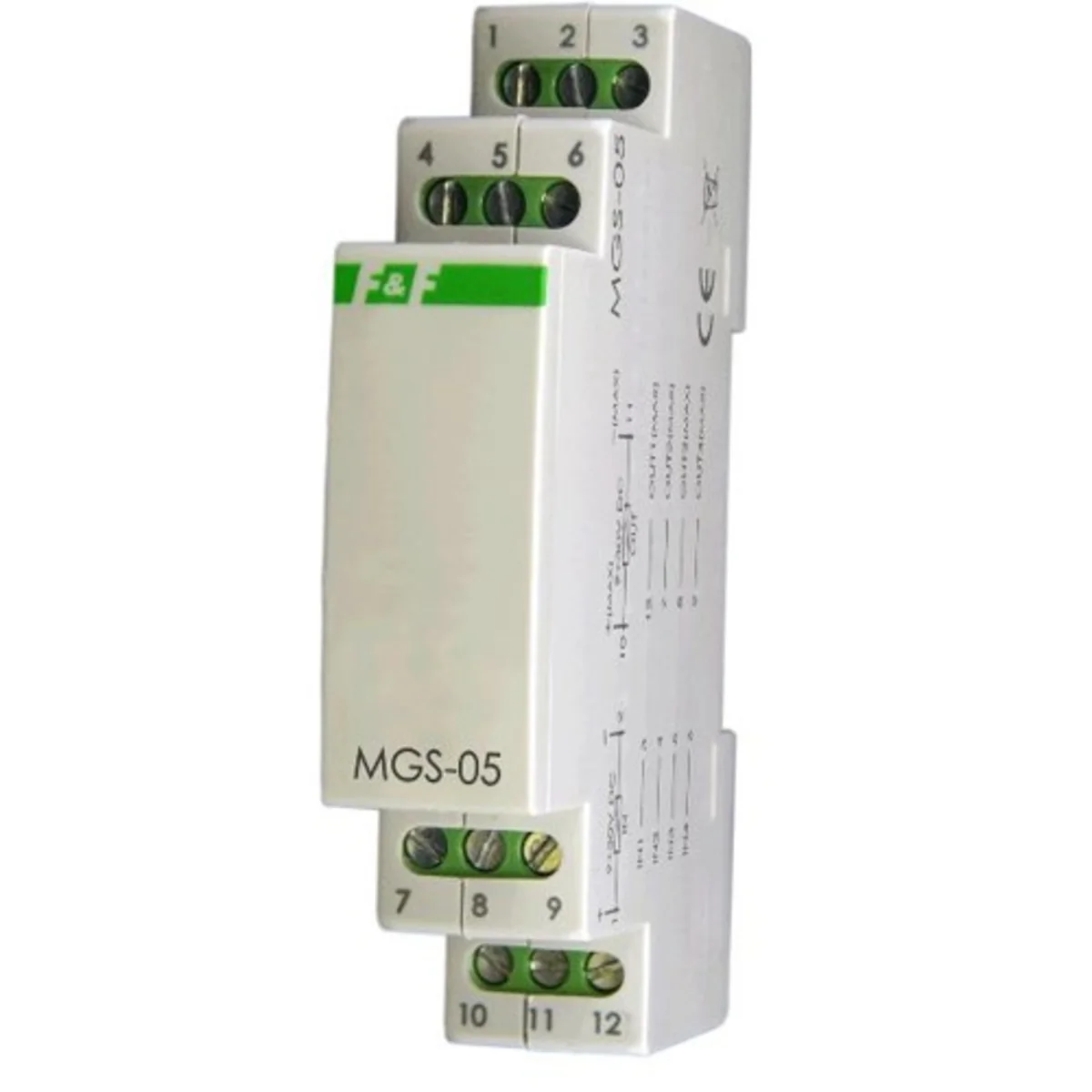

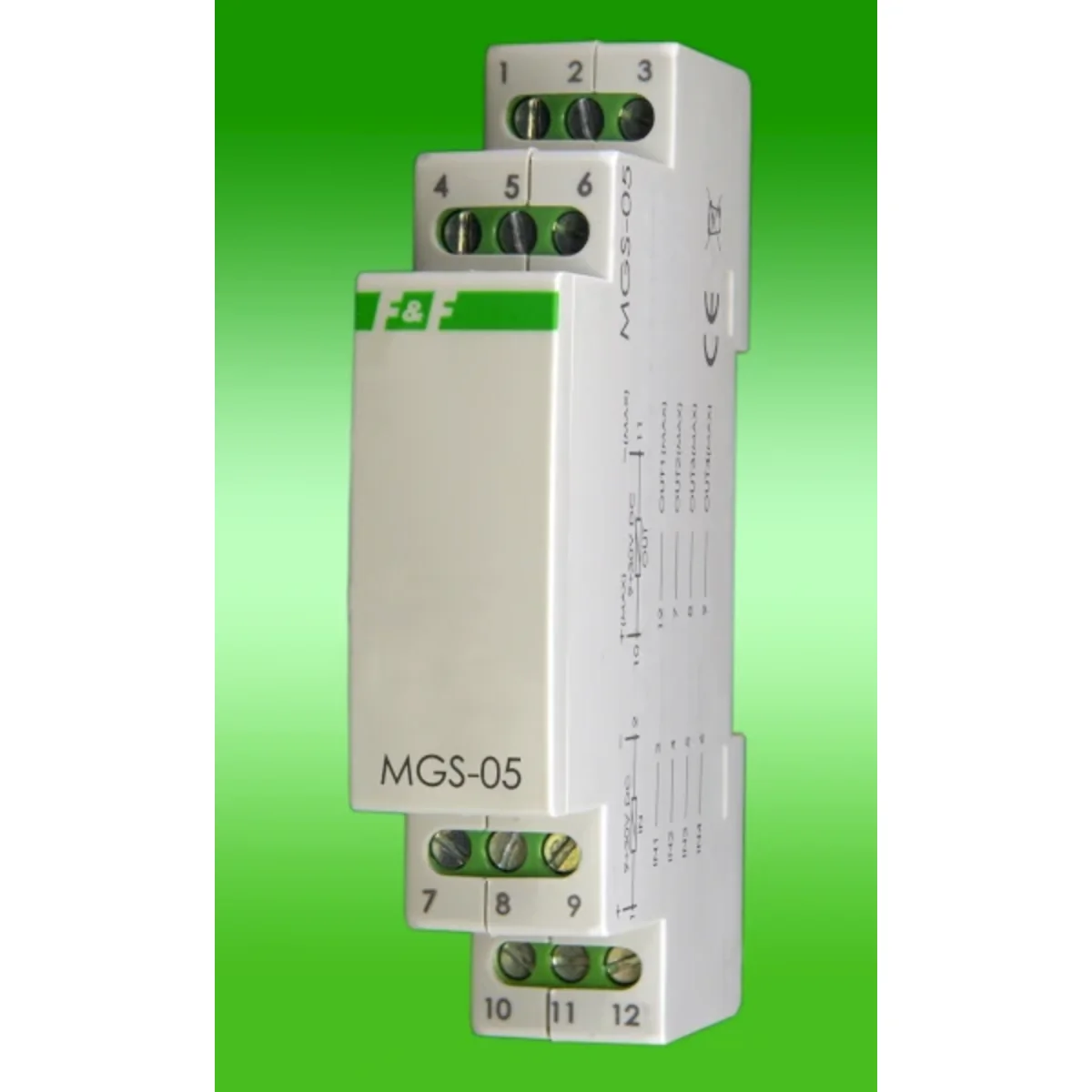

MGS-05 galvanic separation module for digital inputs MAX-MGS-05

local index:
API125FIFQ
Catalog No:
MAX-MGS-05
EAN code:
5908312594437
Price:
14,39 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The MGS module is used to protect the digital inputs of the PLC MAX programmable controllers by introducing galvanic separation protecting the controller inputs against overvoltages of min. 2500V Additionally, the module inputs are equipped with an RC filter ensuring effective elimination of impulse disturbances shorter than 2ms. By separating the module input power supply from the output power supply, it is possible to separate the PLC power supply from the rest of the automation, which eliminates the possibility of transferring interference from the automation power supply to the PLC.
Galvanic isolation [Vms]Min. 2500



Technical data

  • Installation
    On the TH-35 rail
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • Power consumption [W]
    <1
  • Power [V]
    9/30
  • Package width [mm]
    20
