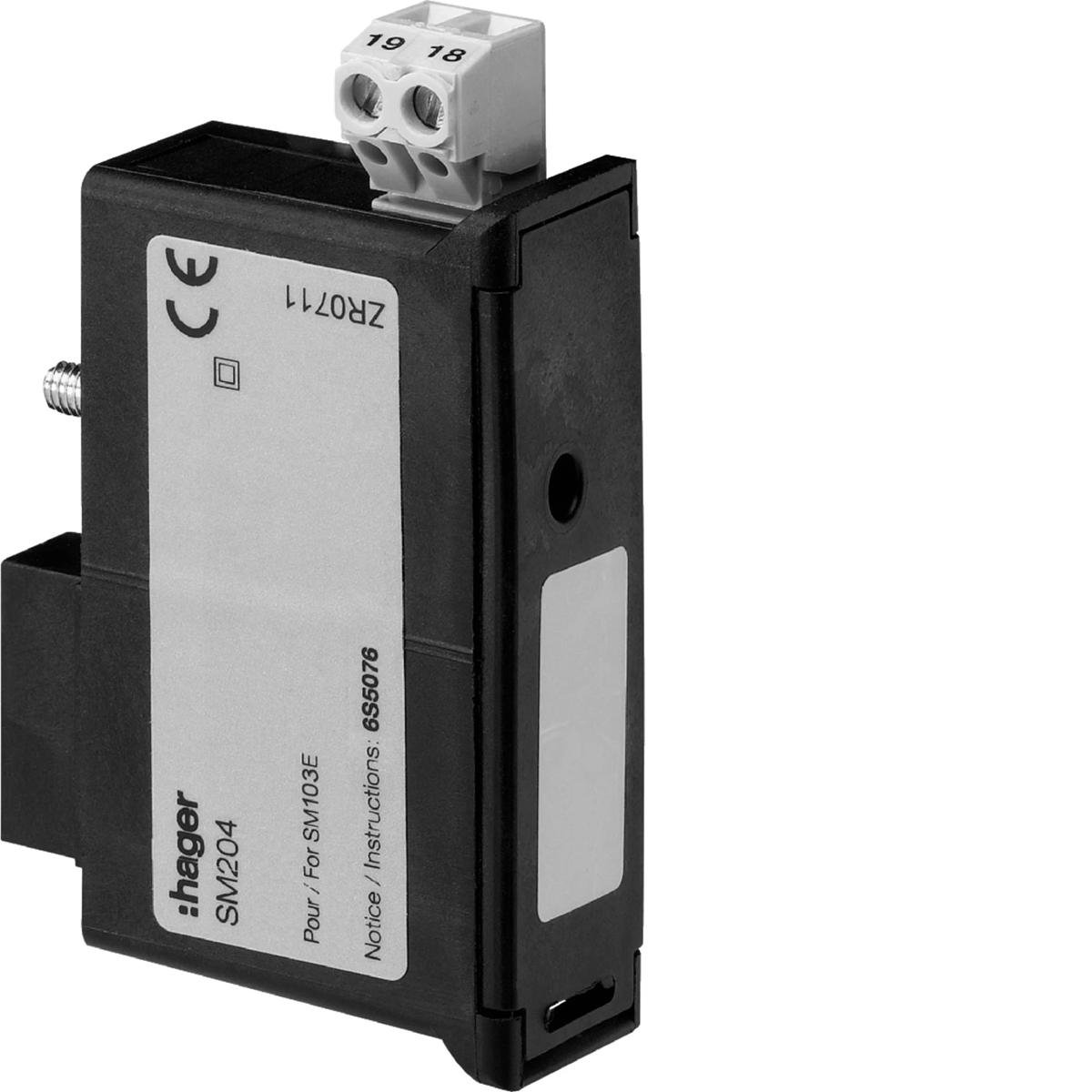

Memory module for SM103E SM204

local index:
API013HAGE
Catalog No:
SM204
EAN code:
3250615632043
Manufacturer: HAGER
Depth [mm]: 36
Width [mm]: 21
Height [mm]: 84
Price:
643,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stores P+, P–, Q+, Q– values for 31 days with internal or external sync pulse (10 minutes) or 62 days if only active or reactive power is recorded. Configurable sync pulse (5, 8, 10, 15, 20, 30 and 60 minutes). Memorization of the last 10 alarms with a time stamp, the last minimum and maximum instantaneous values 3U, 3V, 3I, In, F, ?P+/-, ?Q+/-, ?S, THD3U, THD3V, THD 3I, THD In, alarms and more function. Designed to work with the SM103E analyzer and communication modules SM211, SM213, SM214

Technical data

  • Depth [mm]
    36
  • Height [mm]
    84
  • Width [mm]
    21
  • PKWIU
    26.20.21.0

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 30 pcs. 720 pcs.
Weight (kg) 0,130 0,160 5,120 1445,880
Width (m) 0,230 0,160 0,407 0,800
Length (m) 0,035 0,040 0,305 1,050
Depth (m) 0,160 0,230 0,606 1,200
