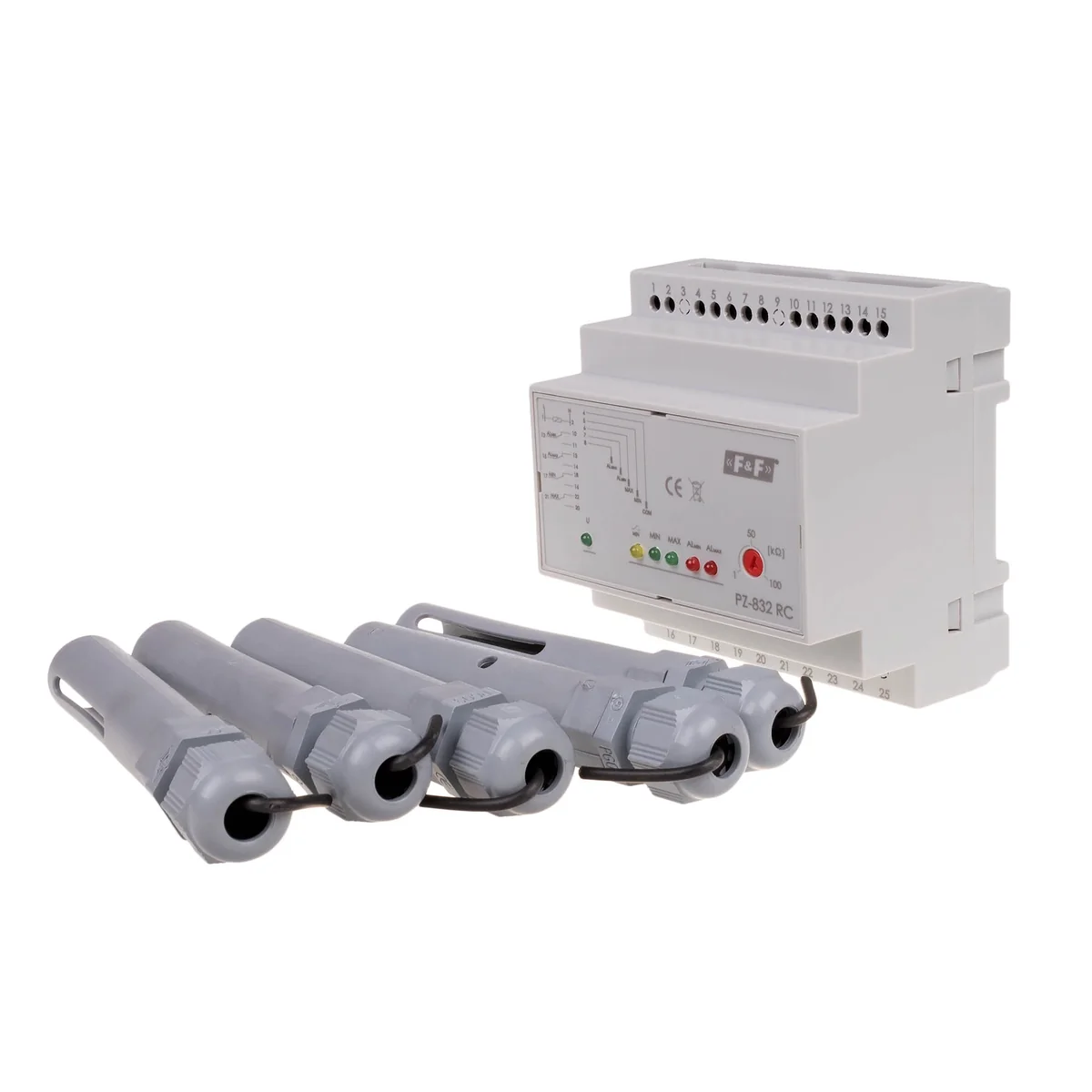

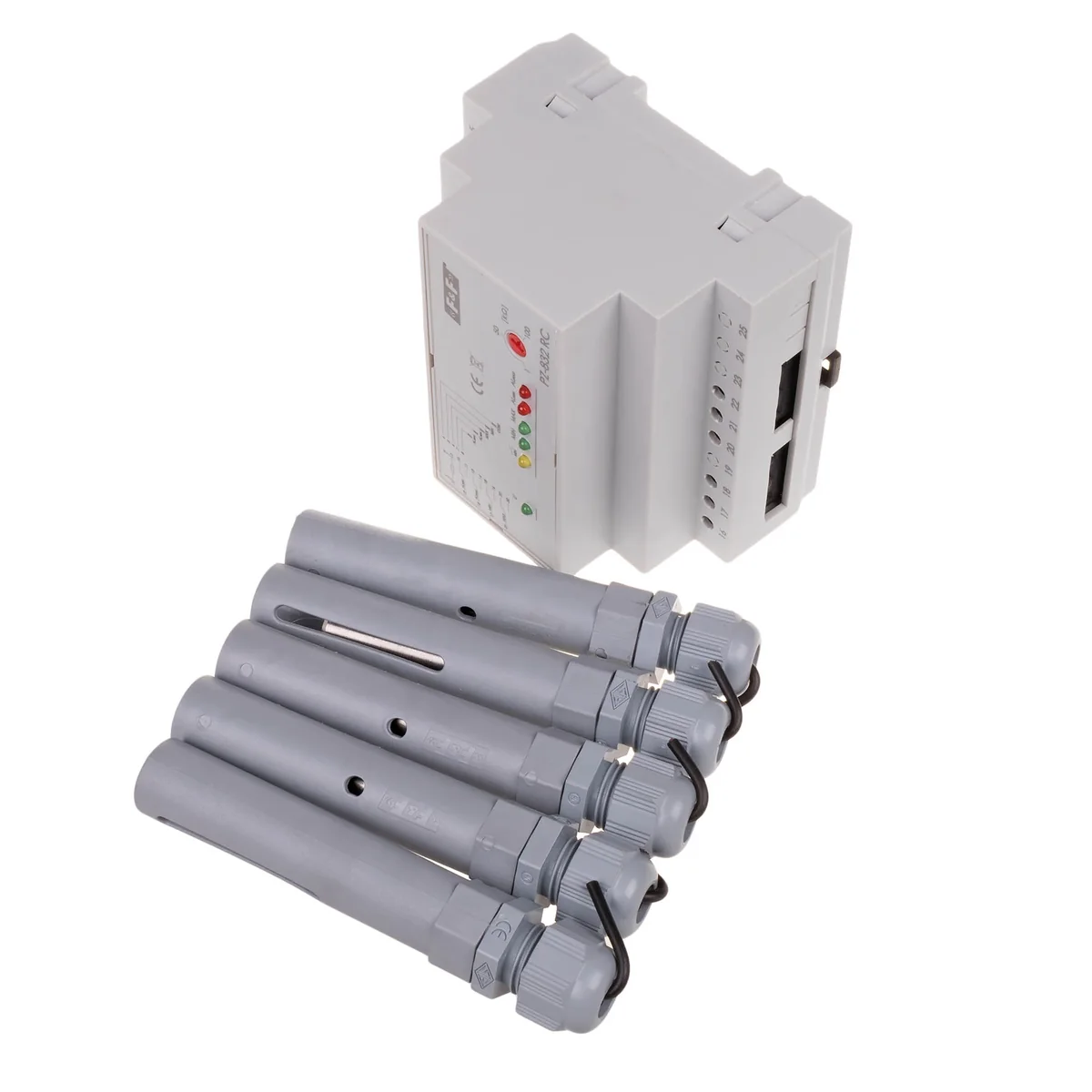

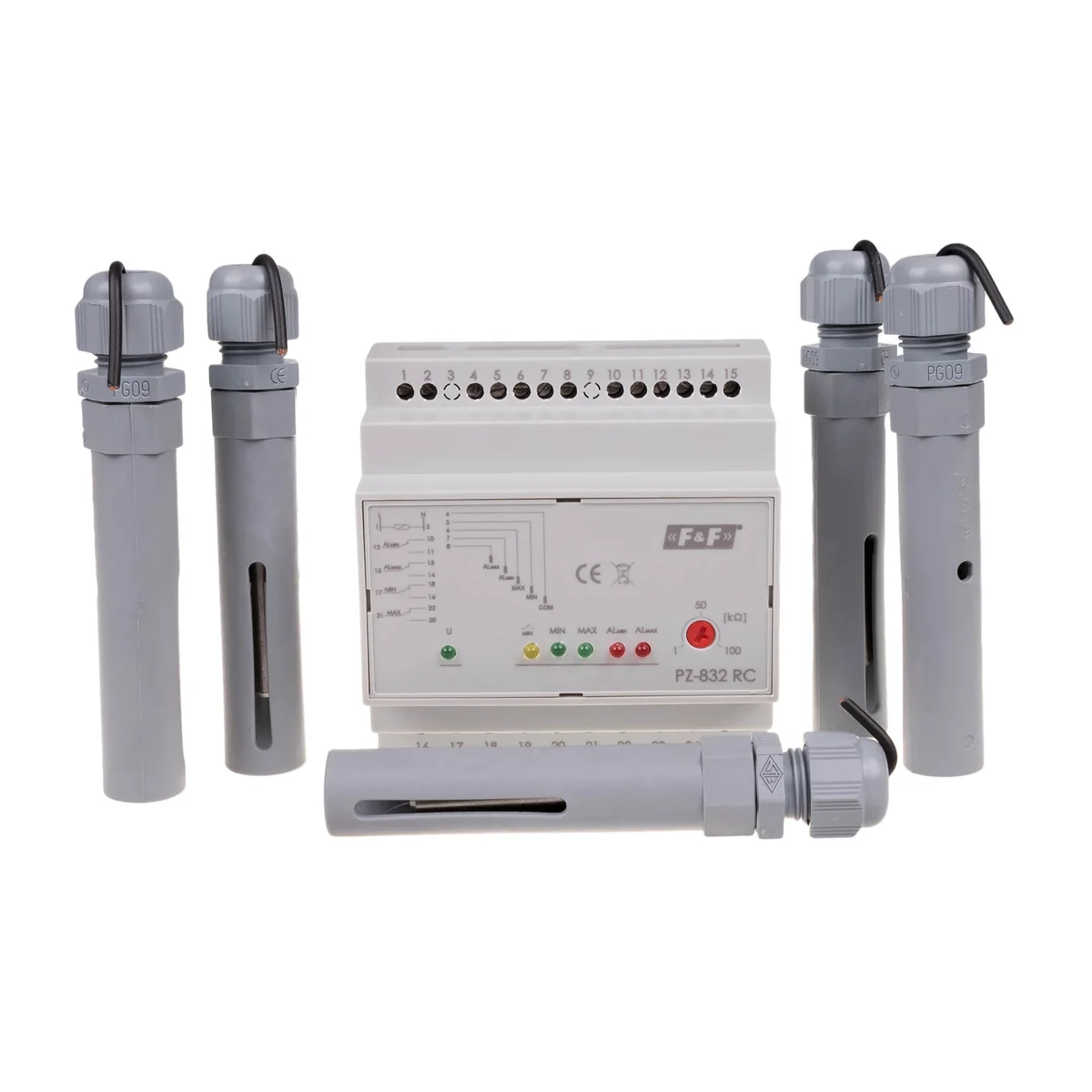

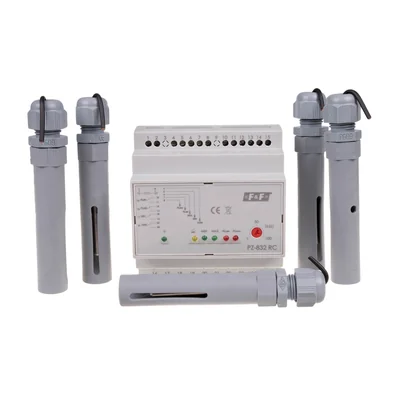

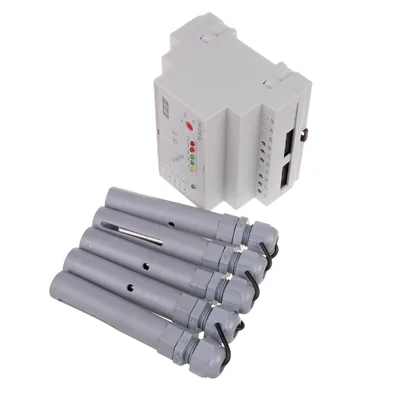

Liquid level control relay with PZ-832 RC probe PZ-832RC

local index:
APE104FIFQ
Catalog No:
PZ-832RC
EAN code:
5908312594369
Manufacturer: F&F
Sensitivity - adjustable: 1-100kΩ
Power [W]: 1.1
Installation: On the TH-35 rail
Price:
116,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PZ-832 relay is used to detect the presence of electrically conductive liquids at the levels of installed flood probes. The relay maintains the level of the controlled liquid within the designated minimum and maximum states. After the liquid level drops to the MIN state (the MIN and COM electrodes are open), the MIN contact will be switched to position 17-16 (FILLING operation), and the MAX contact remains in position 21-22. After reaching the MAX state (MAX and COM electrodes shorted), the MIN relay contact is switched to position 17-18 (DRAINING operation), and the MAX contact to position 21-20. Alarm state: ALMIN (DRY RUNNING state) - after the liquid level drops to the ALMIN level (ALMIN and COM electrodes open), the ALMIN contact will be switched to position 12-11; ALMAX (OVERFLOW state) - after reaching the ALMAX state (ALMAX and COM electrodes shorted), the ALMAX relay contact is switched to position 15-14. Each of the states, i.e. the appropriate level probe is shorted with the COM probe, is signaled by the lighting of the appropriate LED on the front of the relay. The yellow MIN LED lights up to indicate the FILLING status.< td>2x8
Load current AL.



Load current AL. 2x8

Technical data

  • Sensitivity - adjustable
    1-100kΩ
  • Installation
    On the TH-35 rail
  • Tripping delay [s]
    42006
  • connection
    2.5mm screw terminals
  • Rated output voltage [V]
    6
  • Package width [mm]
    100
  • PKWIU
    26.51.70.0
  • Power [W]
    1.1
  • Rated voltage [V]
    230
  • load current [A]
    2x16
  • Dimensions
    5 modules (85mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.4

Other technical data

  • Type of electric connection
    Screw connection
  • Number of inputs for electrodes
    5
  • Number of contacts as change-over contact
    4
  • Voltage type for actuating
    AC
  • Response value sensitivity adjustable
    Yes
  • Physical measurement principle
    Conductive

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,530
Length (m) 0,215
Depth (m) 0,075
