F&F

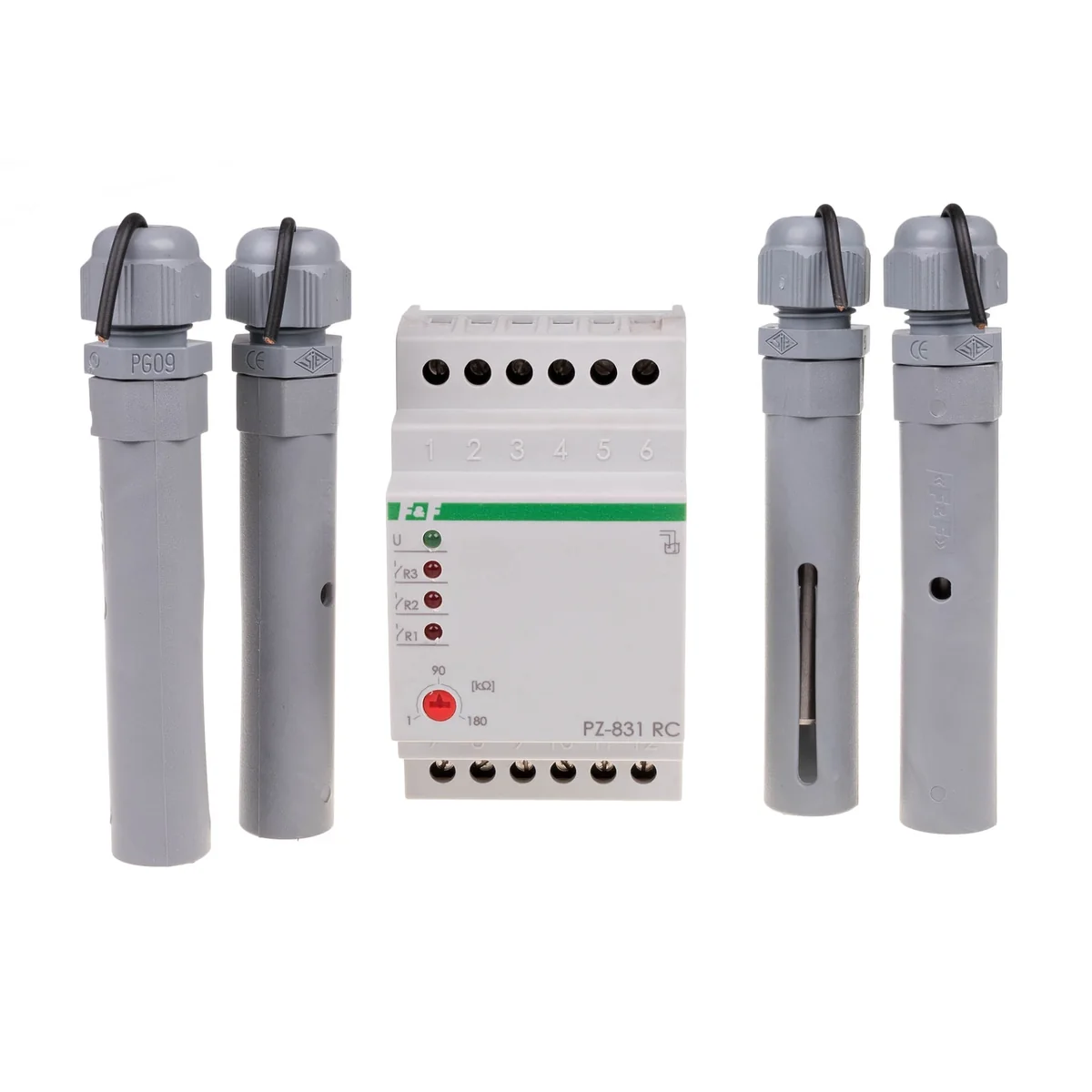

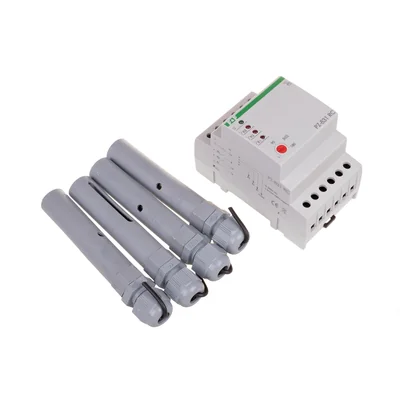

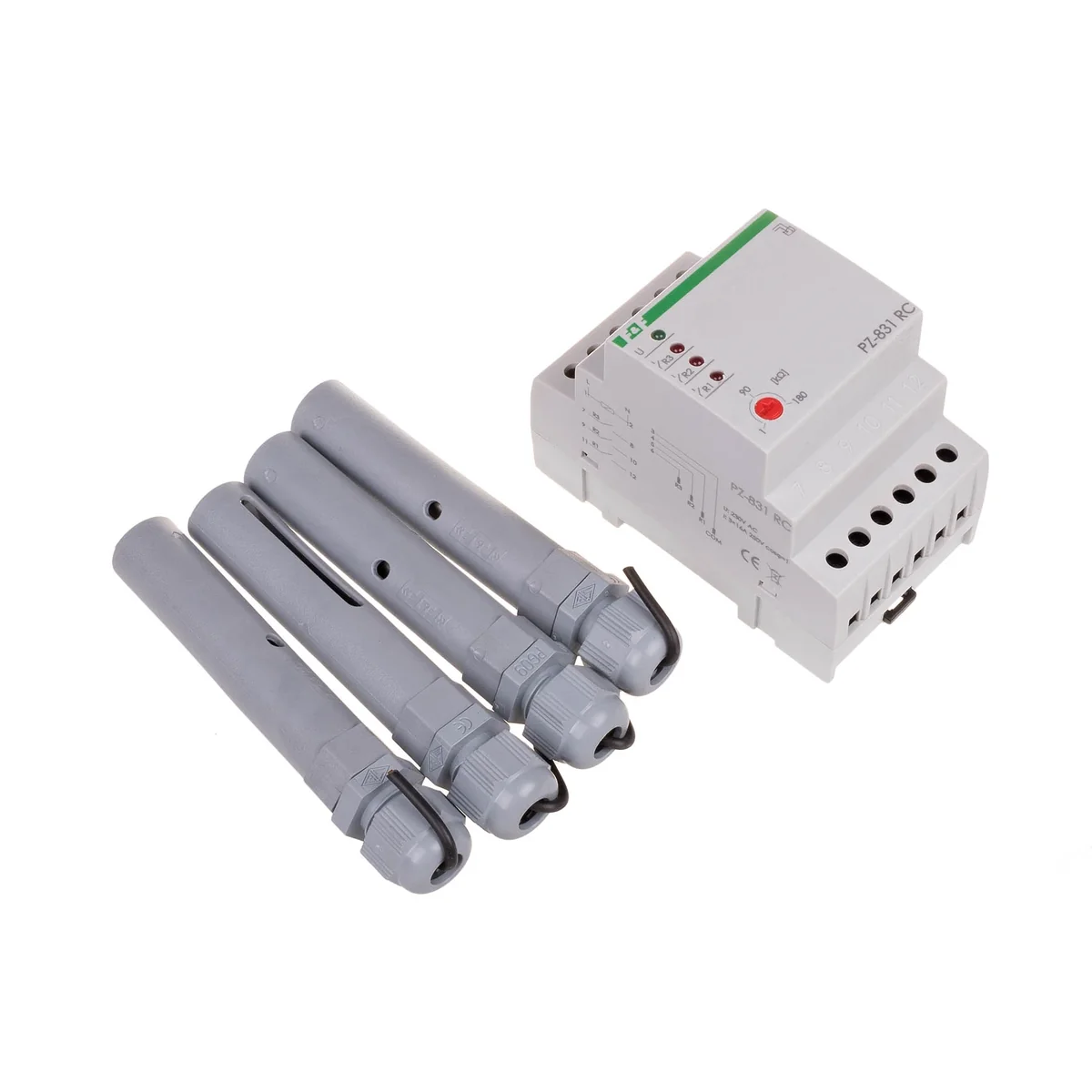

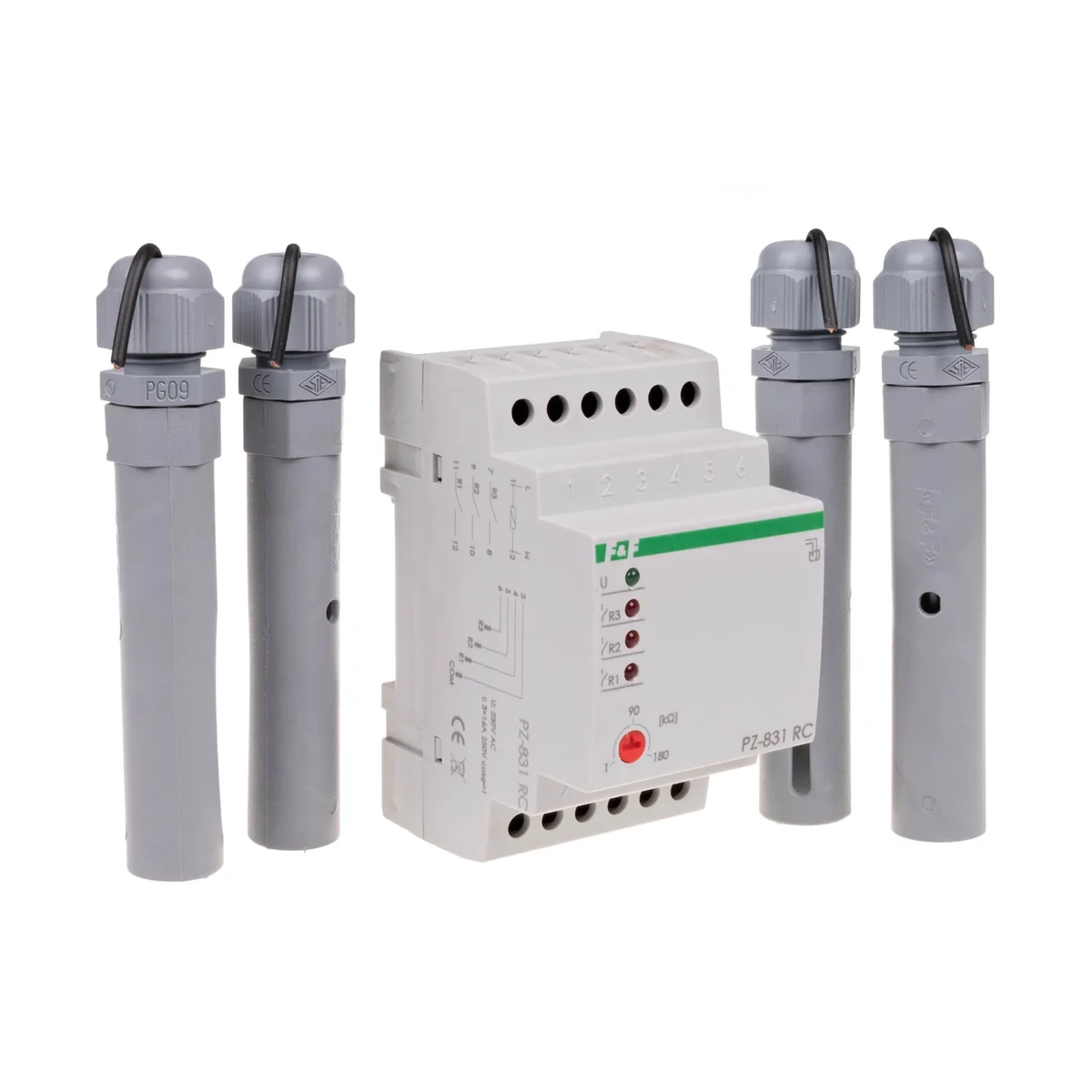

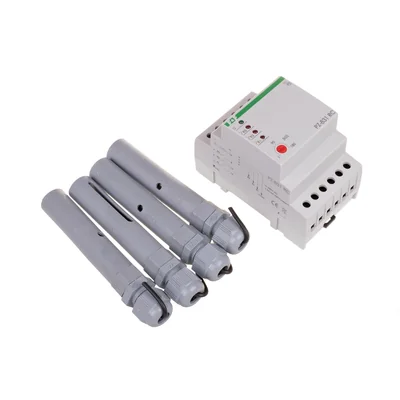

Liquid level control relay PZ-831 RC PZ-831RC

local index:
APE026FIFQ
Catalog No:
PZ-831RC
EAN code:
5908312592549
Price:
95,74 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The PZ-831 relay is used to detect the presence of electrically conductive liquids at the levels of installed flood probes. In a dry state (all probes open) all relay contacts are open. Shorting the COM base probe and the next level probe with liquid will close the contact of the relay assigned to the given probe, e.g. when the first level probe R1 is flooded (short circuit of the COM base probe and the R1 level probe) the contact 11-12 will be closed. Similarly for level probes R2 and R3. Lowering the liquid level below the level probe (opening of the COM probe and the level probe) will open the contact assigned to the given probe.

Technical data

  • Length [mm]
    95
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • connection
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.4
  • Power [W]
    1.1
  • Electrode voltage [V]
    6
  • load current [A]
    16
  • Diameter [mm]
    15
  • Package width [mm]
    70
  • Sensitivity [kΩ]
    1-180

Other technical data

  • Type of electric connection
    Screw connection
  • Number of inputs for electrodes
    4
  • Number of contacts as normally open contact
    3
  • Voltage type for actuating
    AC
  • Response value sensitivity adjustable
    yes
  • Physical measurement principle
    Conductive
