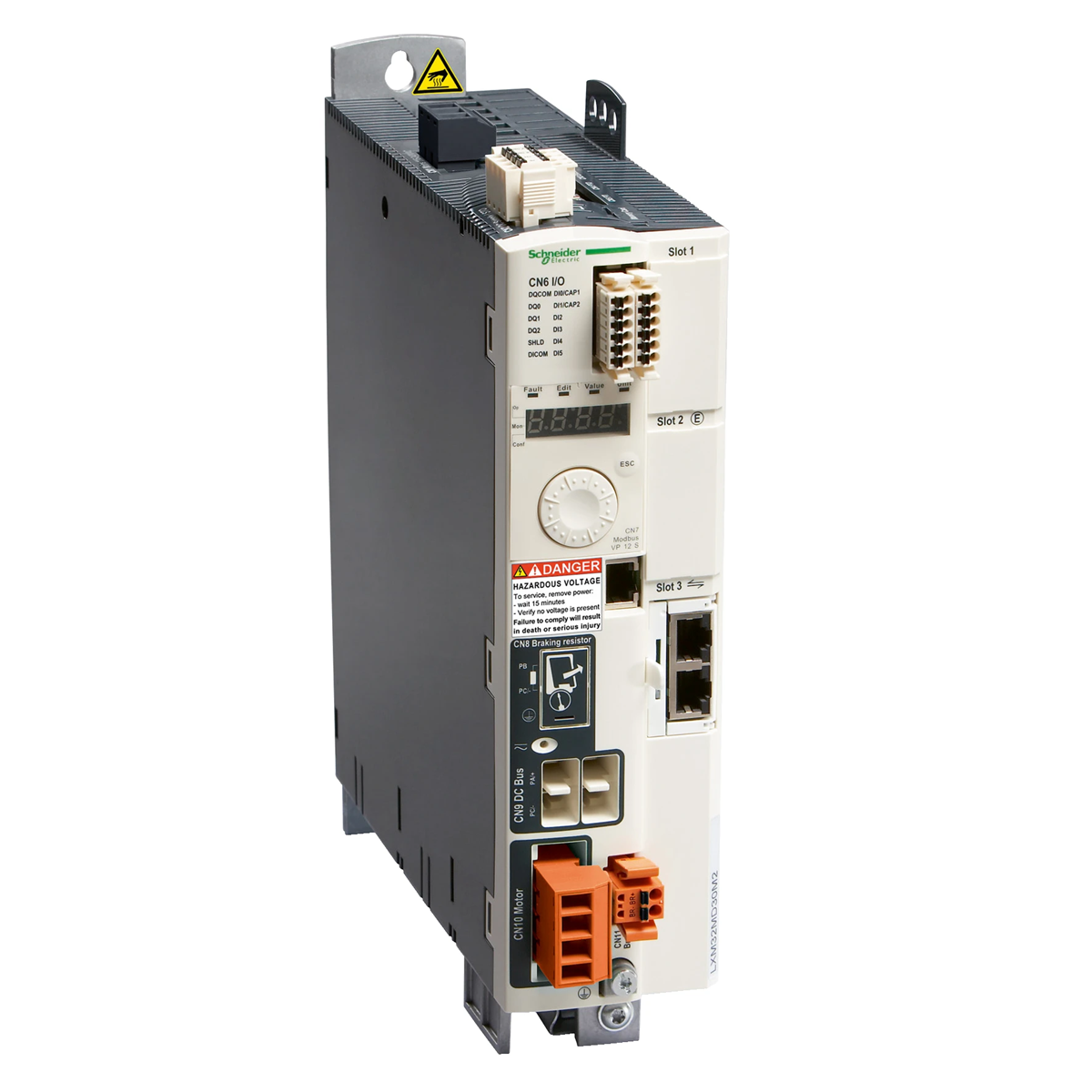

Lexium 32 Modular 18A 1~230V LXM32MD18M2
local index:
API137SCHN
Catalog No:
LXM32MD18M2
EAN code:
3606480076848
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]:
270
See full description
Price:
1335,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Lexium 32 Modular 18A 1~230V
Technical data
Height [mm]
270
PKWIU
27.90.41.0
Other technical data
Mains voltage
115 ... 230 V
Number of phases input
1
Max. output frequency
8 Hz
Nominal output current I2N
6 A
Max. output at linear load at rated output voltage
0.5 kW
Relative symmetric net voltage tolerance
10 %
Number of analogue inputs
3
Number of digital inputs
6
Application in industrial area permitted
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
Yes
Supporting protocol for ASI
No
Supporting protocol for Modbus
Yes
Supporting protocol for DeviceNet
Yes
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Number of interfaces PROFINET
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
With optical interface
No
Integrated breaking resistance
No
Type of converter
Other
Height
270 mm
Depth
237 mm
Mains frequency
50/60 Hz
Number of phases output
Other
Max. output voltage
400 V
Max. output at quadratic load at rated output voltage
0.5 kW
Relative symmetric net frequency tolerance
5 %
Number of analogue outputs
1
Number of digital outputs
2
With control element
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for BACnet
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces USB
0
Number of HW-interfaces other
0
With PC connection
Yes
4-quadrant operation possible
No
Degree of protection (IP)
IP20
Width
68 mm
Files to download
ENVPEP110705EN_V4.pdf
ENVEOLI110605EN_V4.pdf
