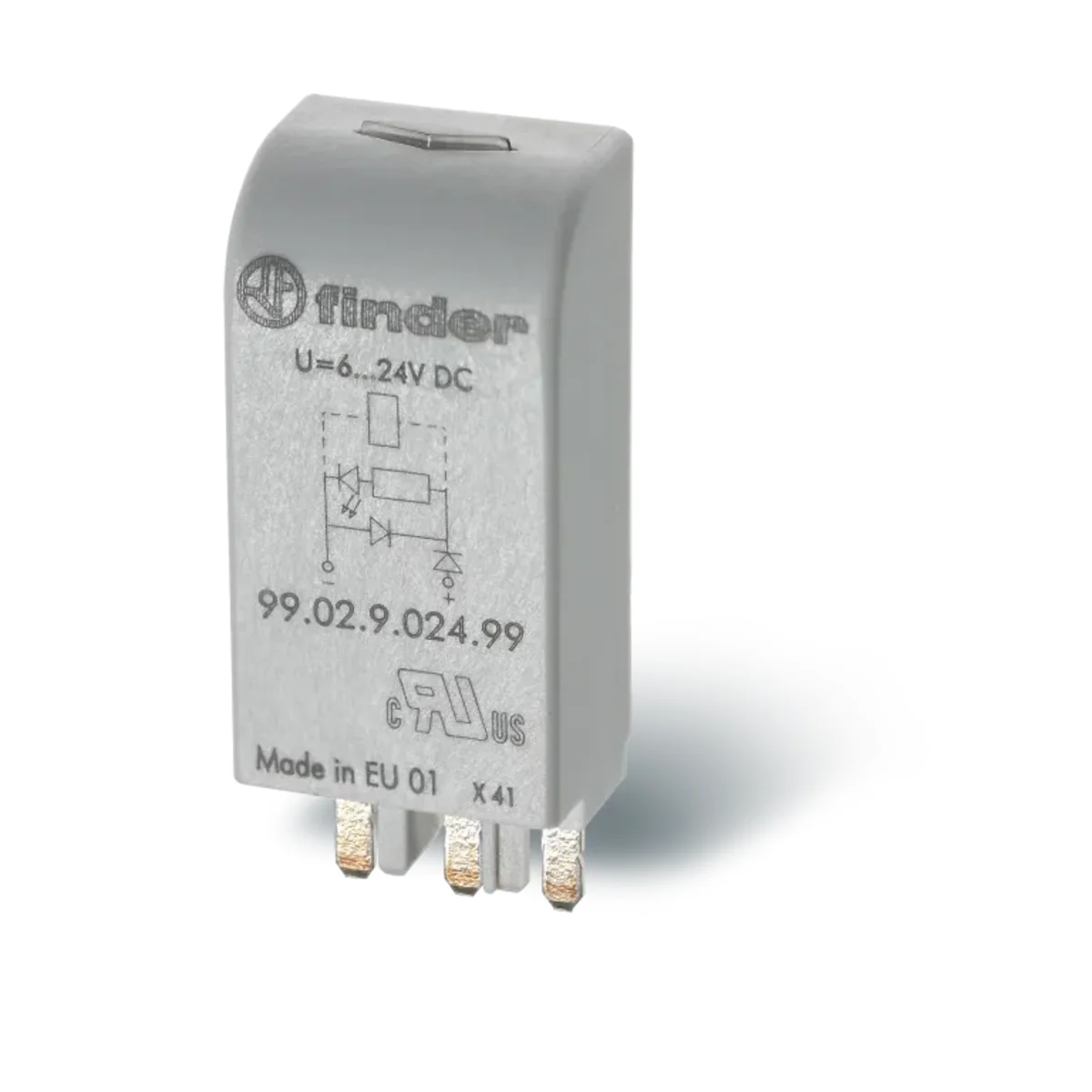

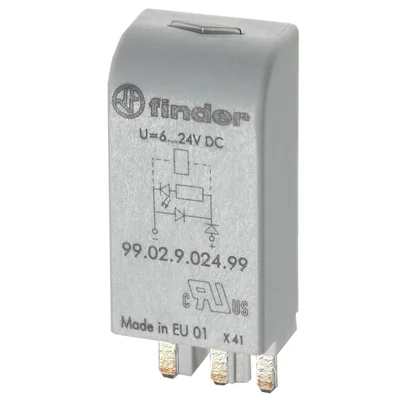

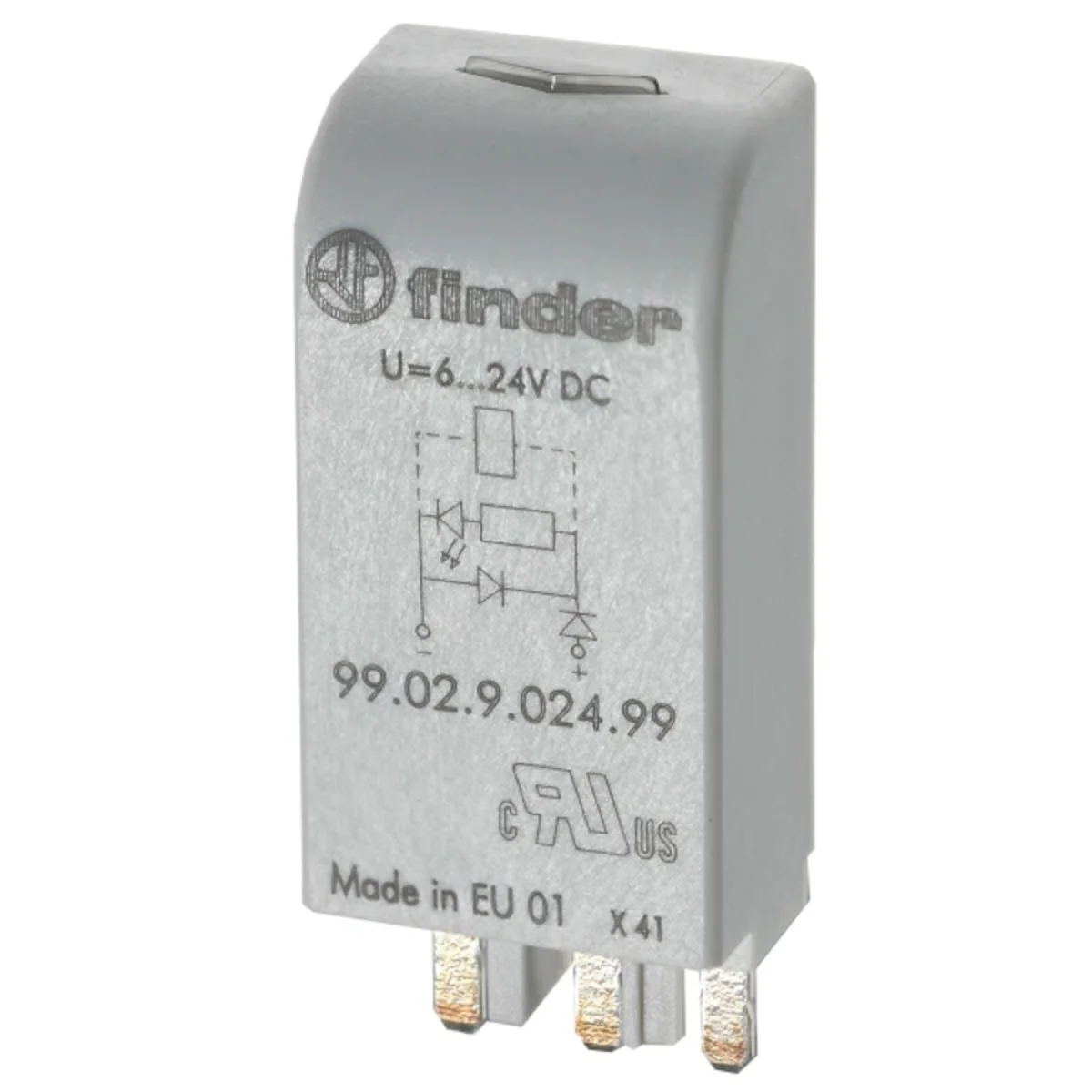

Indication and EMC-overvoltage protection module
The suppression diode and LED modules are used only with DC coils. The voltage peaks of the reverse polarity coil are shorted by the shutdown diode (positive pole to terminal A1). Relay off time increases approximately 3 to 5 times. If an increase in release time is undesirable, use a varistor or RC module. The LED lights up when the coil is energized.
A kind of package | Karton | Torebka | Karton |
Quantity | 1 pcs. | 10 pcs. | 1000 pcs. |
Weight (kg) | 0,006 | 0,034 | 3,840 |
Volume (m3) | 0,000 | 0,000 | 0,025 |
Width (m) | 0,023 | 0,070 | 0,340 |
Length (m) | 0,030 | 0,175 | 0,390 |
Depth (m) | 0,048 | 0,010 | 0,190 |
