HAGER

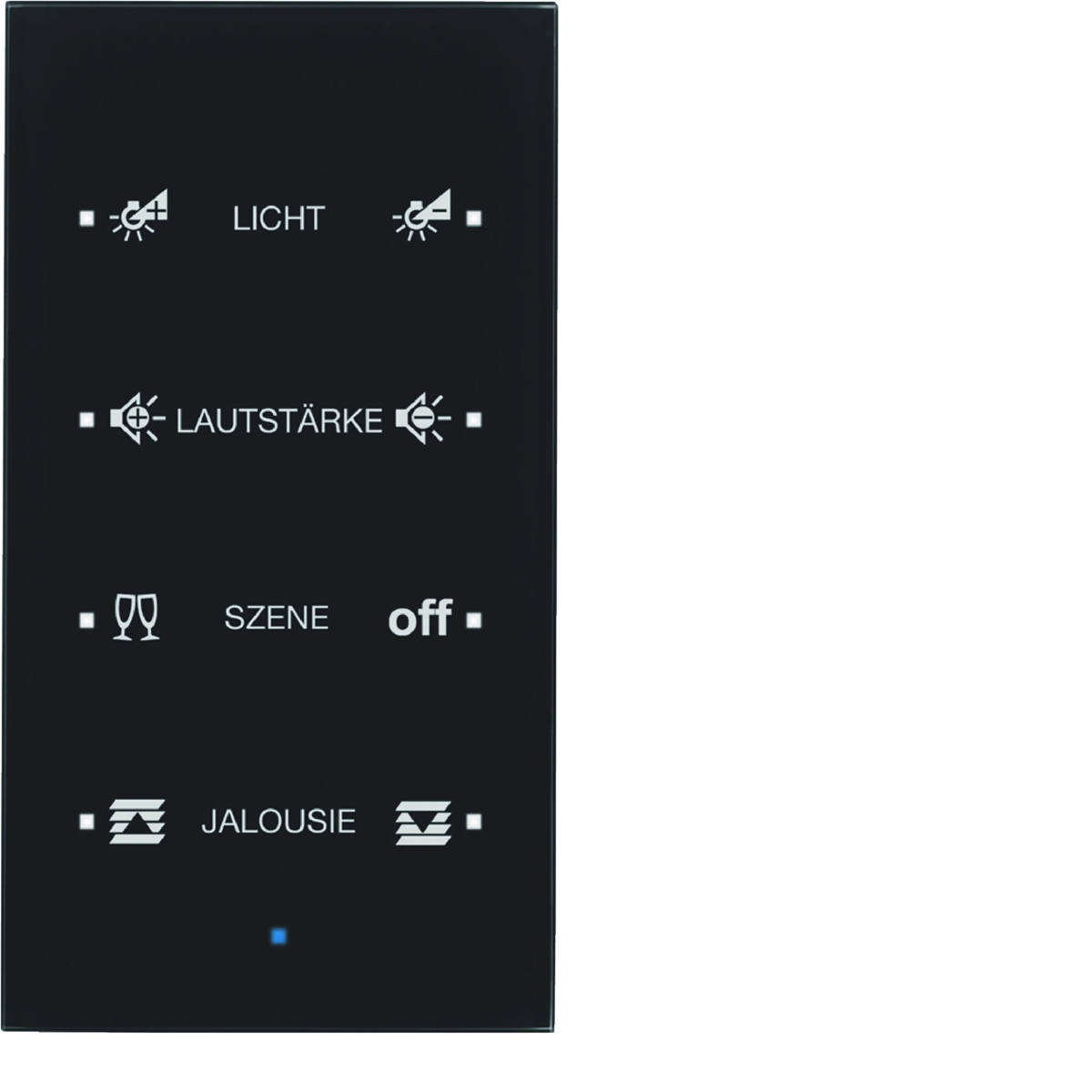

KNX TS Sensor glass touch 4-fold configurable glass black 75144935

local index:
AIK376HAGE
Catalog No:
75144935
EAN code:
4011334383949
Price:
803,79 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Sensor 4-fold glass touch sensor, Berker TS Sensor series. Main design line: KNX - Berker TS Sensor. Configurable - defined by the user: possible symbols, colors and descriptions are selected using the configurator on the website.

Functions

  • functions: switching on/pressing, dimming and controlling blinds
  • function of blocking sensor surfaces, e.g. to clean the glass surface

Measurements

  • function of sending 1 and 2 byte values for dimming, illuminance and temperature

LED control

  • with blue operation LED and 8 white status LEDs

Connection

  • with built-in bus port
  • bus connection via connection terminals

Terms of use

  • temperature measurement via internal temperature sensor or external communication object
  • integrated temperature sensor to work as an extension of the regulator
  • additional connection for an external temperature sensor

Series characteristics:

< p> The BERKER TS SENSOR touch sensor is characterized by the gentleness of touching a perfectly smooth surface, enabling switching on the light, operating blinds, roller blinds, etc. Focusing the operating concept on a completely smooth surface makes it an ideal solution for particularly demanding interiors.

  • designed for bus systems or relay installations
  • thanks to the use of electronics directly under the rear part of the glass plate, high switching reliability is guaranteed
  • the use of a completely flat solution enables a perfectly flat composition on the wall
  • operational readiness and switching states are indicated by LEDs
  • completely smooth surface thanks to screwless fixing

Technical data

  • Halogen free
    NO
  • Color
    Black
  • Installation
    Flush-mounted
  • Family
    TS SENSOR
  • Height [mm]
    160
  • Surface finish
    Overprint
  • Depth [mm]
    37.7
  • Material
    Glass
  • Surface
    Gloss
  • Width [mm]
    86
  • Operating temperature range [°C]
    from -5 to 45
  • DC operating voltage [V]
    21 - 32

Other technical data

  • Bus system KNX
    yes
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Radio frequent bidirectional
    no
  • With anti-theft/dismantling protection
    yes
  • Number of actuation points
    8
  • With LED indication
    yes
  • With display
    no
  • Material quality
    Other
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • With room temperature controller
    yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    yes
  • Number of buttons
    0
  • With label area
    no
  • Material
    Glass
  • Surface protection
    Other
  • Colour
    Black
  • Transparent
    no
  • With IR sensor
    no
  • Min. depth of built-in installation box
    27 mm
