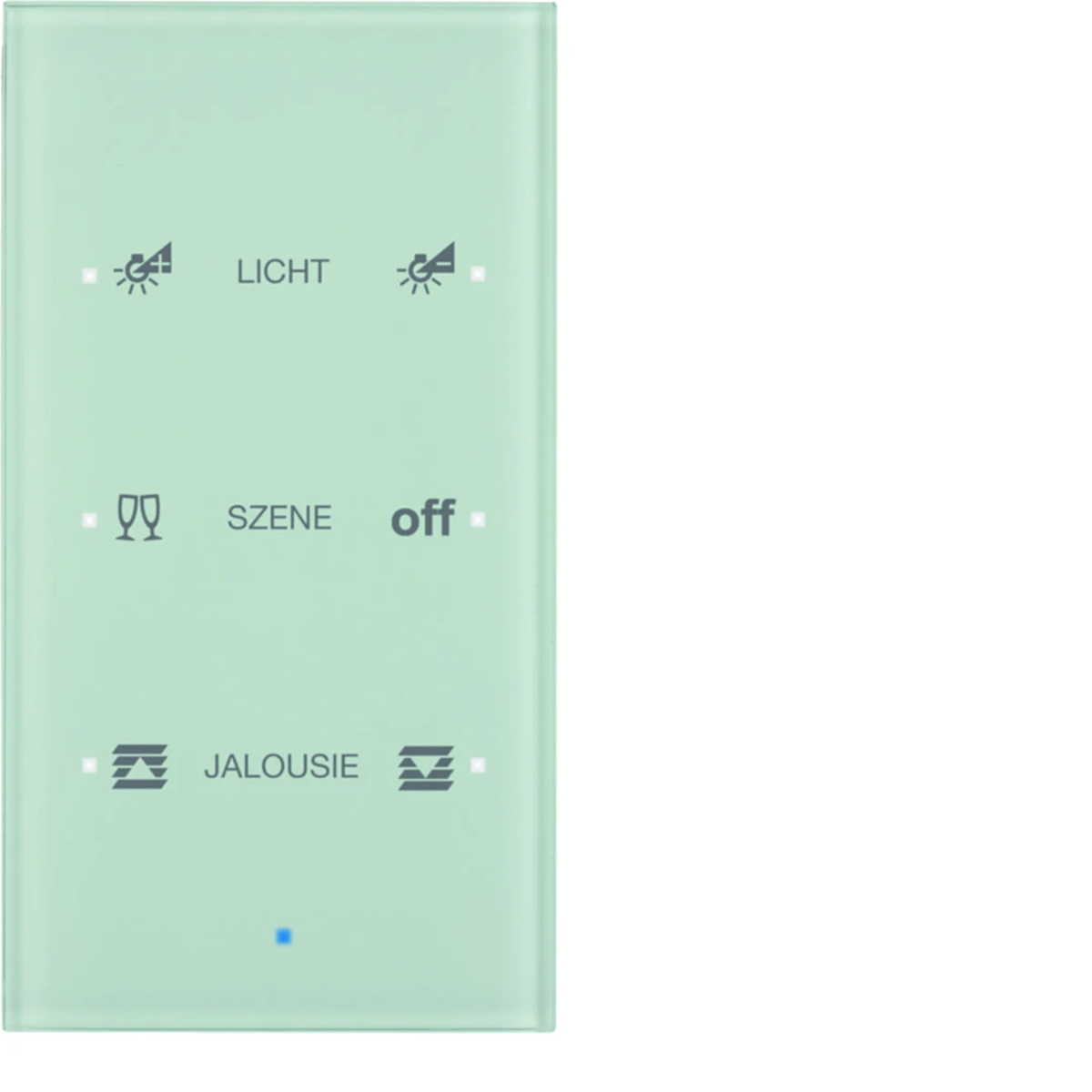

Sensor 3-fold glass touch, Berker TS Sensor series. Main design line: KNX - Berker TS Sensor. Configurable - defined by the user: possible symbols, colors and descriptions are selected using the configurator on the website.

Functions

functions: switching on/pressing, dimming and controlling blinds
function of blocking sensor surfaces, e.g. to clean the glass surface

Measurements

function of sending 1 and 2 byte values for dimming, illuminance and temperature

LED control

with blue operation LED and 6 white status LEDs

Connection

with built-in bus port
bus connection via connection terminals

Terms of use

temperature measurement via internal temperature sensor or external communication object
integrated temperature sensor to work as an extension of the regulator
additional connection for an external temperature sensor

Series characteristics:

< p> The BERKER TS SENSOR touch sensor is characterized by the gentleness of touching a perfectly smooth surface, enabling switching on the light, operating blinds, roller blinds, etc. Focusing the operating concept on a completely smooth surface makes it an ideal solution for particularly demanding interiors.

designed for bus systems or relay installations
thanks to the use of electronics directly under the rear part of the glass plate, high switching reliability is guaranteed
the use of a completely flat solution enables a perfectly flat composition on the wall
operational readiness and switching states are indicated by LEDs
completely smooth surface thanks to screwless fixing

Halogen free

NO
Color

White
Installation

Flush-mounted
Family

TS SENSOR
Height [mm]

160
Surface finish

Overprint
DC operating voltage [V]

21 - 32

Depth [mm]

37.7
Material

Glass
Surface

Gloss
Width [mm]

86
Operating temperature range [°C]

from -5 to 45
Accurate color

Snow white
PKWIU

27.12.31.0

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
With anti-theft/dismantling protection

Yes
Number of actuation points

6
With LED indication

Yes
With display

No
Material quality

Other
Surface finishing

Glossy
RAL-number (similar)

9010
With room temperature controller

Yes
Degree of protection (IP)

IP20

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Mounting method

Flush-mounted
With bus connection

Yes
Number of buttons

0
With label area

No
Material

Glass
Surface protection

Other
Colour

White
Transparent

No
With IR sensor

No
Min. depth of built-in installation box

27 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	368 pcs.
Weight (kg)	0,360	0,430	183,240
Width (m)	0,086	0,124	0,800
Length (m)	0,038	0,090	1,500
Depth (m)	0,160	0,265	1,200
