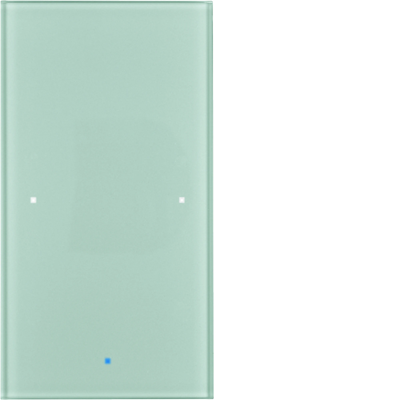

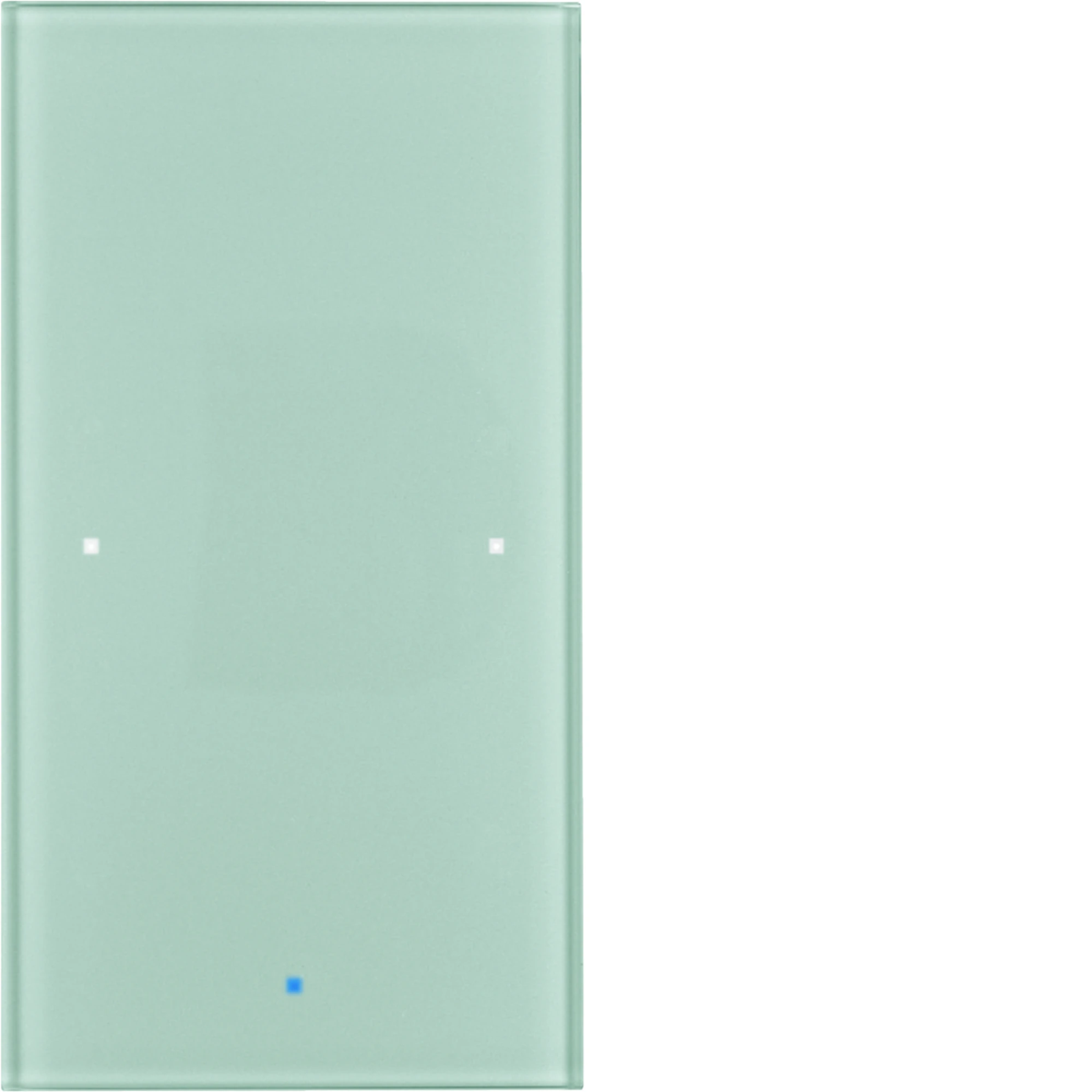

KNX TS Sensor glass touch 1-fold comfort glass aluminum 75141034

Sensor 1-fold glass touch, comfort, Berker TS Sensor series. Main design line: KNX - Berker TS Sensor.

Functions

• functions: switching on/pressing, dimming and blinds control
< li> function of blocking the sensor surfaces, e.g. to clean the glass surface

Measurements

• function of sending 1st and 2nd byte value for dimming, brightness and temperature

LED control

• with blue operation LED and 2 white status LEDs

Connection

• with built-in bus port
• bus connection via connection terminals

Terms of use

• temperature measurement via internal temperature sensor or external communication object
• integrated temperature sensor to work as an extension of the controller
• additional connection for an external temperature sensor

Series characteristics:

The BERKER TS SENSOR touch sensor is gentle when touched on a perfectly smooth surface for switching on lights, operating blinds, roller shutters, etc. The focus of the operating concept on a completely smooth surface makes it an ideal solution for particularly demanding interiors.

• designed for bus systems or relay installation
• thanks to the use of electronics directly under the rear part of the glass plate, high reliability of switching is guaranteed
• the use of a completely flat solution enables a perfectly flat composition on the wall
• operational readiness and switching states are signaled by with LEDs
• completely smooth surface thanks to screwless fixing
