el12 Automation Relays and drivers KNX/EIB controllers and relays
el12 sale El12 and HAGER

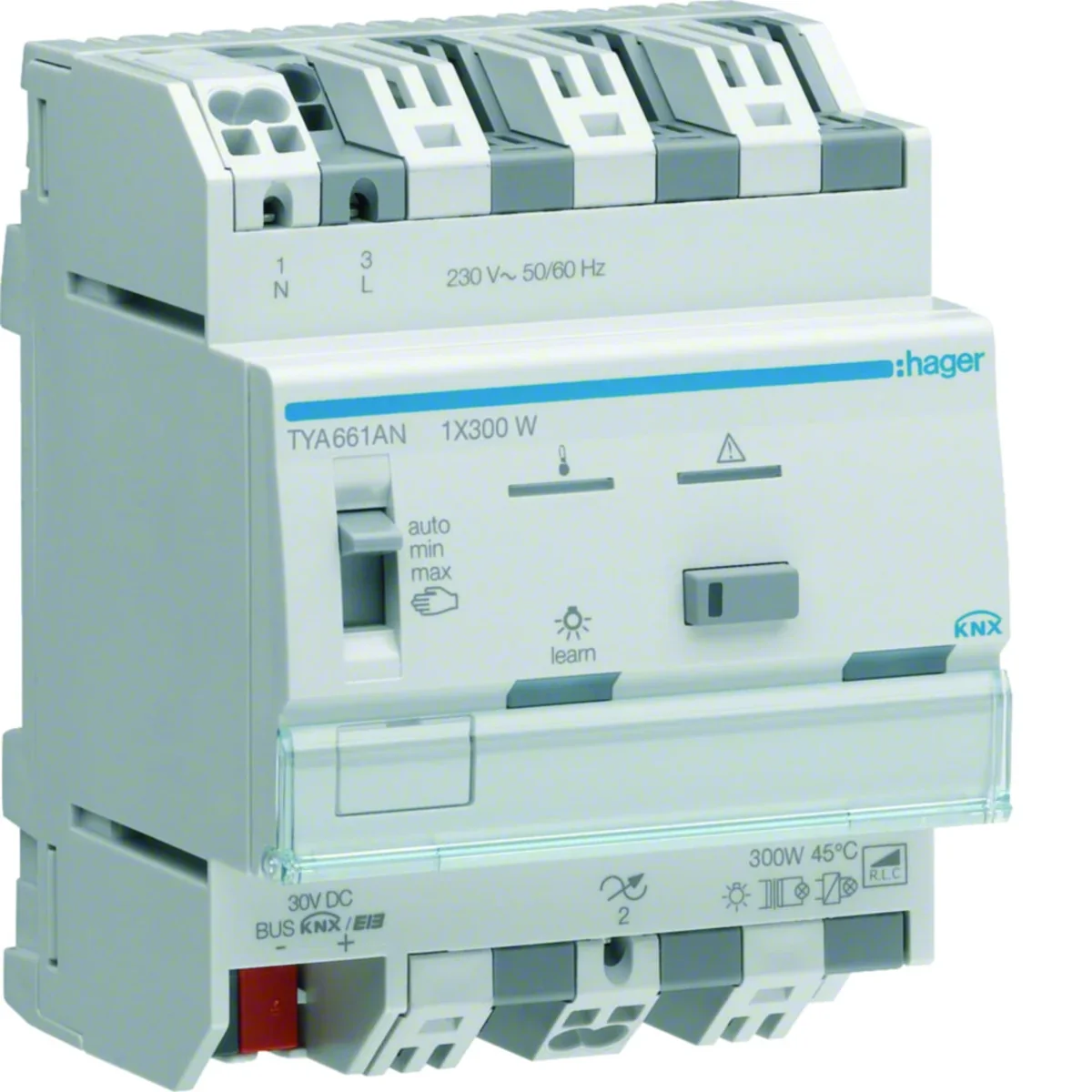

KNX system Universal dimmer 1-channel 300W, 4 mod TYA661AN

local index:
AIK205HAGE
Catalog No:
TYA661AN
EAN code:
3250616059375
KNX system Universal dimmer 1-channel 300W, 4 mod
KNX system Universal dimmer 1-channel 300W, 4 mod

Click on the photo to enlarge

Manufacturer: HAGER
Halogen free: NO
Rated frequency [Hz]: 60
Level of security: IP20
See full description
Price:
297,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

KNX system Universal dimmer 1-channel 300W, 4 mod

Technical data

  • Halogen free
    NO
  • Level of security
    IP20
  • Connection type
    Quick Connect
  • Number of modules
    4
  • Maximum operating current [A]
    0.004
  • Operating voltage via DC bus [V]
    21 - 32
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Number of outputs
    1
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Rated frequency [Hz]
    60
  • power loss [W]
    0.32
  • Operating temperature range [°C]
    from 5 to 45
  • Maximum bulb power [W]
    300
  • AC supply voltage [V]
    230
  • Bus current consumption (data transmission) [mA]
    < 2.3
  • Beacon
    Yes
  • Electronic transformers [W]
    300
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Substation input
    Yes
  • With LED indication
    Yes
  • Output power
    300 ... 300 W
  • Type of load
    Universal
  • Voltage
    30 ... 30 V
  • Frequency
    50 ... 60 Hz
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Control module
  • Width in number of modular spacings
    4
  • Bus module detachable
    No
  • Local operation/hand operation
    Yes
  • Number of outputs
    1
  • Power boost suitable
    No
  • Max. control current
    4 mA
  • Parallel-service possible
    No
  • Degree of protection (IP)
    IP20

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,198 0,242 6,200 171,800
Width (m) 0,069 0,095 0,215 0,800
Length (m) 0,090 0,080 0,230 1,070
Depth (m) 0,071 0,120 0,360 1,200
