el12 Automation Relays and drivers KNX/EIB controllers and relays
el12 sale El12 and HAGER

KNX system Universal 3-channel dimmer 300W, 6 mod TYA663AN

local index:
AIK207HAGE
Catalog No:
TYA663AN
EAN code:
3250616059351

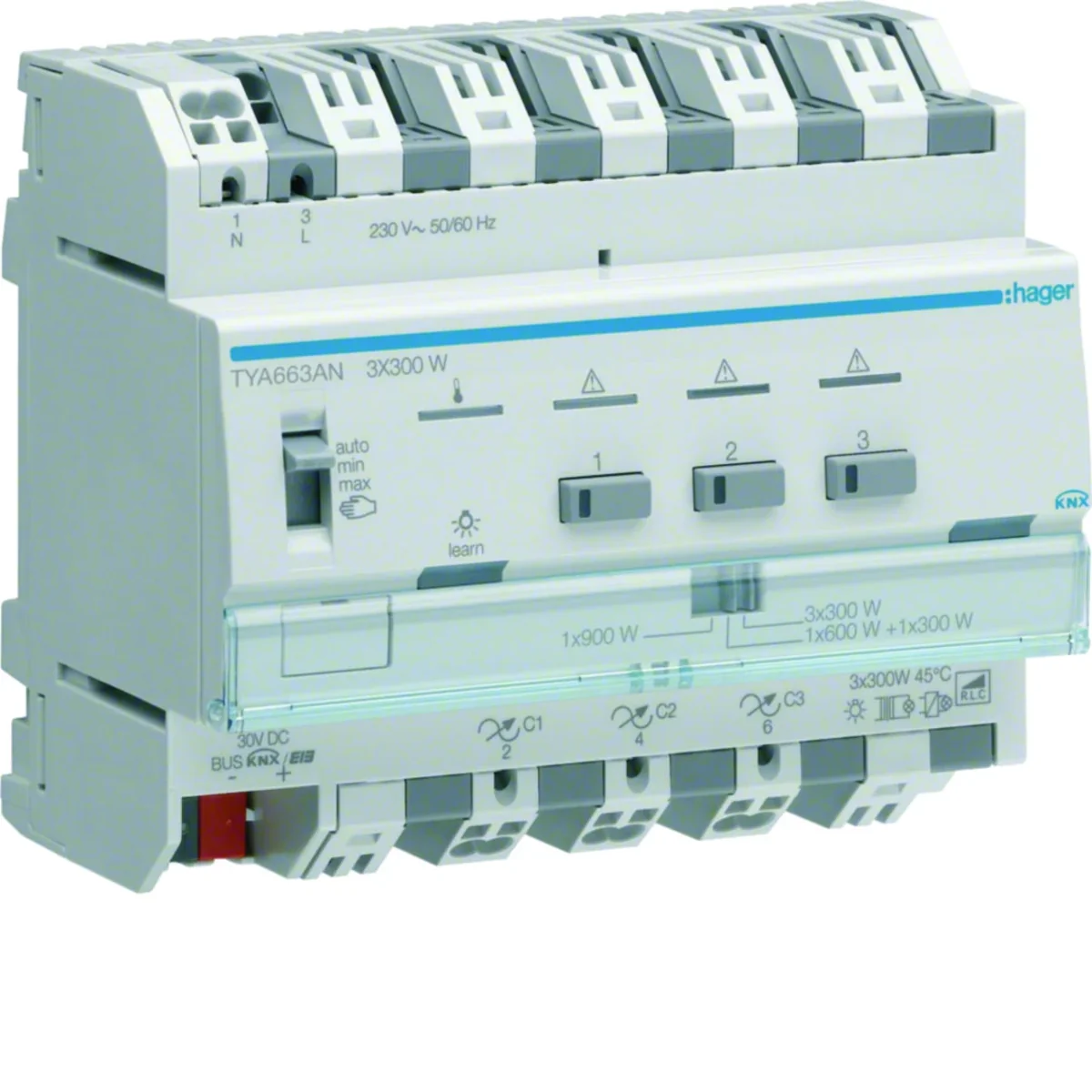

KNX system Universal 3-channel dimmer 300W, 6 mod
KNX system Universal 3-channel dimmer 300W, 6 mod

Click on the photo to enlarge

Manufacturer: HAGER
Halogen free: NO
Rated frequency [Hz]: 60
Level of security: IP20
See full description
Price:
613,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

KNX system Universal 3-channel dimmer 300W, 6 mod

Technical data

  • Halogen free
    NO
  • Level of security
    IP20
  • Operating temperature range [°C]
    from 5 to 45
  • Maximum bulb power [W]
    300 per channel
  • AC supply voltage [V]
    230
  • Bus current consumption (data transmission) [mA]
    < 2.3
  • Beacon
    Yes
  • Electronic transformers [W]
    300 per channel
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0
  • Rated frequency [Hz]
    60
  • Connection type
    Quick Connect
  • Number of modules
    6
  • Maximum operating current [A]
    0.004
  • Operating voltage via DC bus [V]
    21 - 32
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Number of outputs
    3
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Substation input
    Yes
  • With LED indication
    Yes
  • Output power
    900 ... 900 W
  • Type of load
    Universal
  • Voltage
    30 ... 30 V
  • Frequency
    50 ... 60 Hz
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Dimming actuator
  • Width in number of modular spacings
    6
  • Bus module detachable
    No
  • Local operation/hand operation
    Yes
  • Number of outputs
    3
  • Power boost suitable
    No
  • Max. control current
    4 mA
  • Parallel-service possible
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 576 pcs.
Weight (kg) 0,372 0,405 5,240 251,520
Width (m) 0,100 0,100 0,315 0,080
Length (m) 0,082 0,080 0,210 0,120
Depth (m) 0,152 0,155 0,360 0,120
