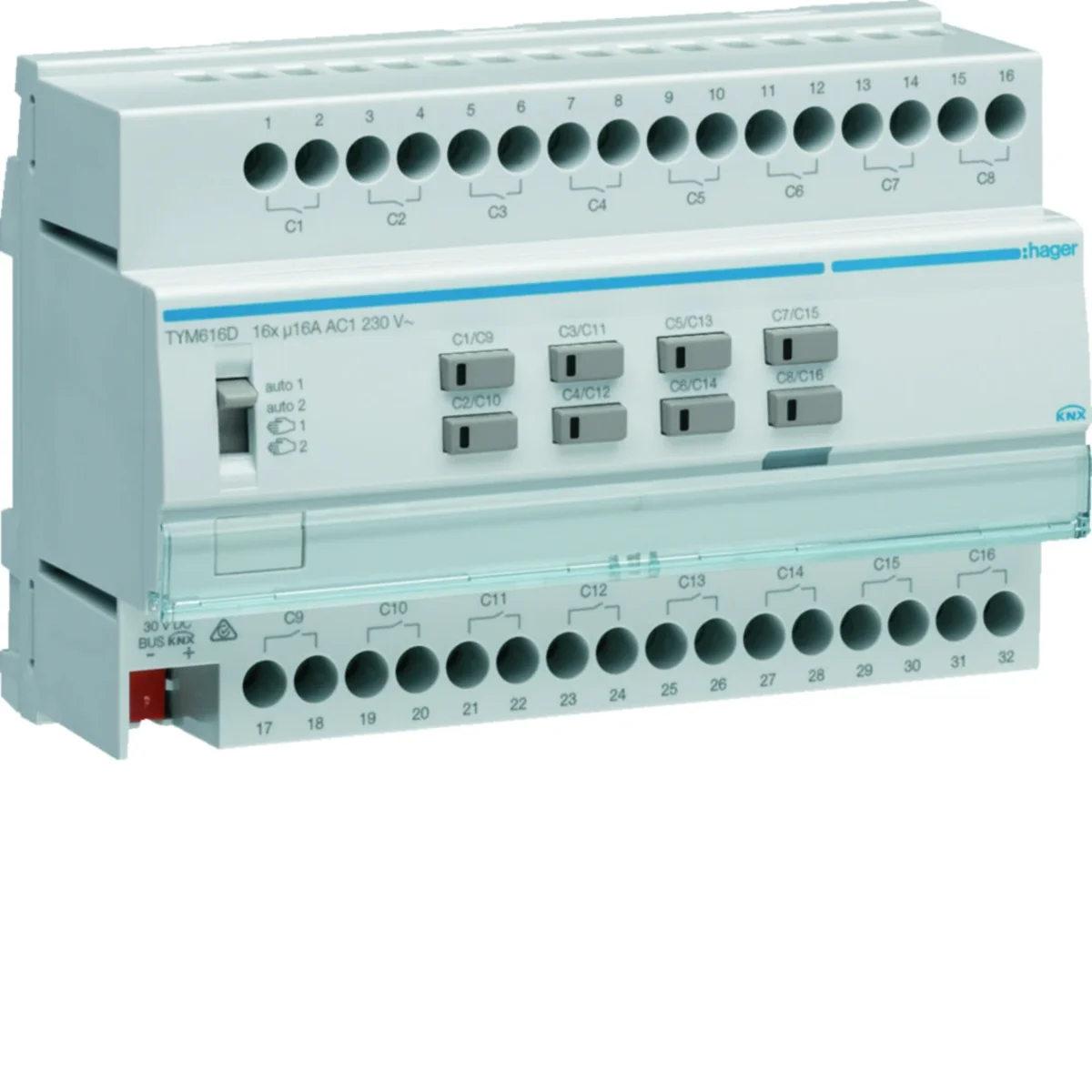

KNX system Switch/blind controller 16-/8-gang 16A C-load, 8 mod TYM616D
local index:
AIK102HAGE
Catalog No:
TYM616D
EAN code:
3250616059504
Price:
965,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX system Switch/blind controller 16-/8-gang 16A C-load, 8 mod
Technical data
-
Depth [mm]65
-
Rated current [A]16
-
Level of securityIP20
-
Width [mm]140
-
Height [mm]90
-
Rated switching voltage [V]230
-
Number of modules8
-
DC supply voltage [V]thirty
-
Maximum operating current [A]16
-
Bus current consumption (data transmission) [mA]5
-
BeaconYes
-
Electronic transformers [W]1500
-
Number of outputs16
-
Conductor cross-section (wire) [mm²]0.5 - 6
-
ColorGray
-
Contact type16F
-
power loss [W]1.3
-
Connection typeWith a screw
-
Operating temperature range [°C]from -5 to 45
-
Rated output voltage [V]230
-
Accurate colorlight gray
-
Maximum bulb power [W]2300
-
Operating voltage via DC bus [V]21 - 32
-
Manual controlYes
-
storage temperature [°C]from -20 to 70
-
Conventional transformers [VA]1500
-
Wire cross-section (cord) [mm²]0.5 - 4
-
PKWIU27.33.11.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Width in number of modular spacings8
-
With LED indicationYes
-
Output power2300 W
-
Max. number of switching contacts16
-
Rated current16 A
-
Different phases connectableYes
-
Bus module detachableNo
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodDRA (DIN-rail adapter)
-
Local operation/hand operationYes
-
Max. switching power25300 W
-
Suitable for C-loadYes
-
Max. switching current16 A
-
Rated operating voltage230 ... 230 V
-
With bus connectionYes
-
Modular expandabilityNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 288 pcs. |
| Weight (kg) | 0,506 | 0,610 | 7,760 | 209,240 |
| Width (m) | 0,142 | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,090 | 0,080 | 0,210 | 1,050 |
| Depth (m) | 0,071 | 0,190 | 0,360 | 1,200 |
