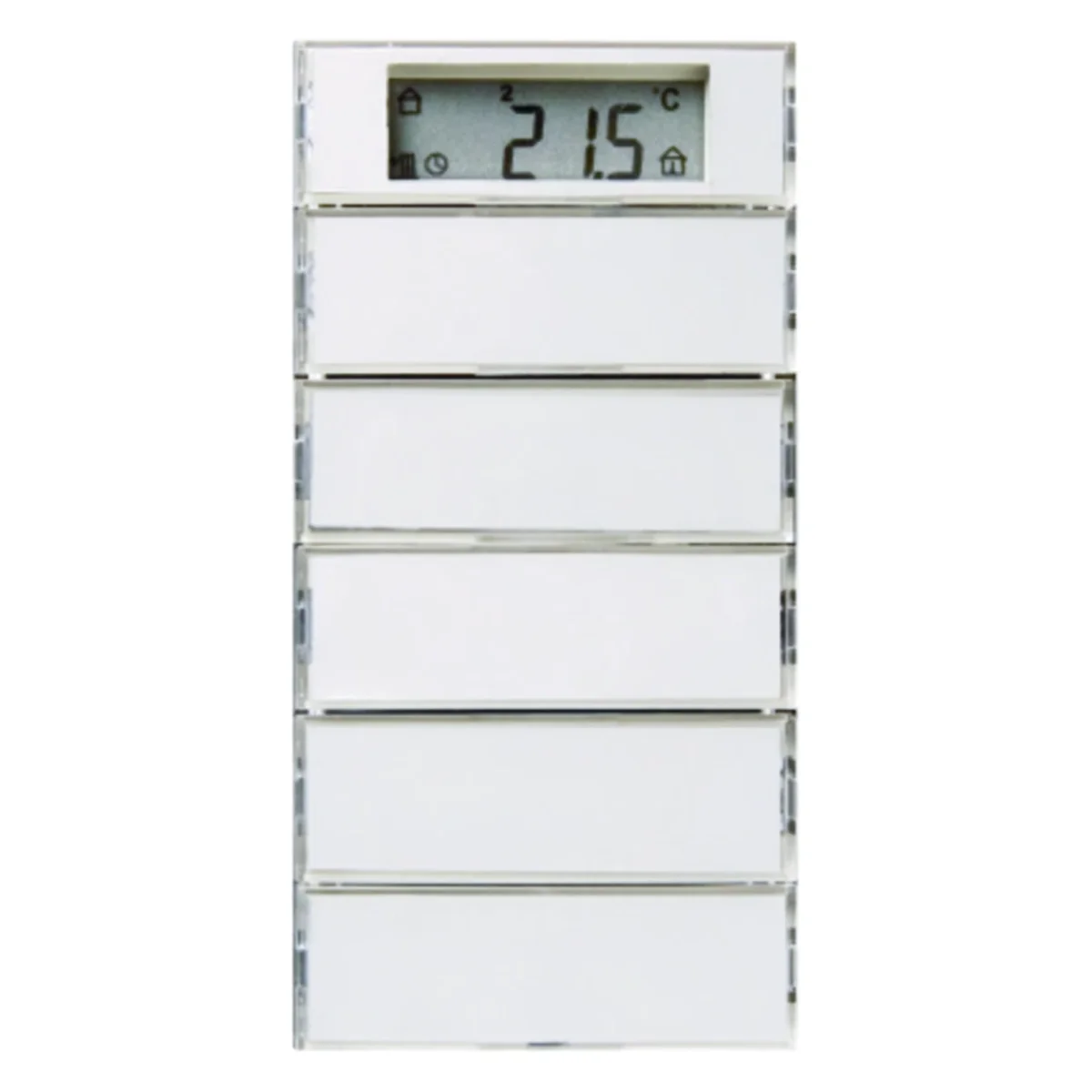

KNX SYSTEM S.1/B.3/B.7 5-gang button with temperature regulator and display for white and cream frames 75665780

local index:
AIK245HAGE
Catalog No:
75665780
EAN code:
4011334283492
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 5
Material: Thermoplastic
Price:
773,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

5-fold button with temperature regulator and display, KNX system series. Main design line: KNX - Berker S.1/B.3/B.7.

Functions

  • regulator operating modes: comfort, standby, night and freeze/overheat protection
  • for switching, touch, dimming, shutter and temperature controls
  • with valve protection
  • for timer control room temperature

Controls and indicators

  • Micro-SDHC/SDXC Class 10 or UHS-1
  • < li> blind control configurable as short-long-short or long-short
  • LCD display with symbols
  • display of operating mode, regulator lock, indoor/outdoor temp., time (clock required)

Connections

  • with key lock function

Measurements

  • function to send 1 and 2 byte values for dimming, illuminance and temperature

LED control

  • with white operation LED and 10 red status LEDs

Settings

  • configurable presence button to extend the comfort mode
  • configurable function display for the customer
  • for plasterboard walls

Accessories

  • for heating and/or cooling with/without an additional auxiliary source
  • for continuous (PI) or bi-state control of up to 2 control circuits
  • for individual single room temperature control
  • with preset parameters for heating / cooling

Security

  • telegram alarm after removal from bus port, 1 bit, 1 byte

Terms of use

  • temperature measurement by internal sensor and/or external with value specification

Series characteristics:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Material
    Thermoplastic
  • Surface
    Gloss
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • PKWIU
    27.12.31.0
  • Number of buttons
    5
  • Installation
    Flush-mounted
  • Family
    KNX SYSTEM
  • Width [mm]
    55.8
  • Surface finish
    Natural

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    12
  • With LED indication
    Yes
  • With display
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    5
  • With label area
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 32 pcs. 1024 pcs.
Weight (kg) 0,185 0,218 7,482 259,424
Width (m) 0,071 0,077 0,300 0,800
Length (m) 0,035 0,050 0,225 1,050
Depth (m) 0,071 0,154 0,400 1,200
