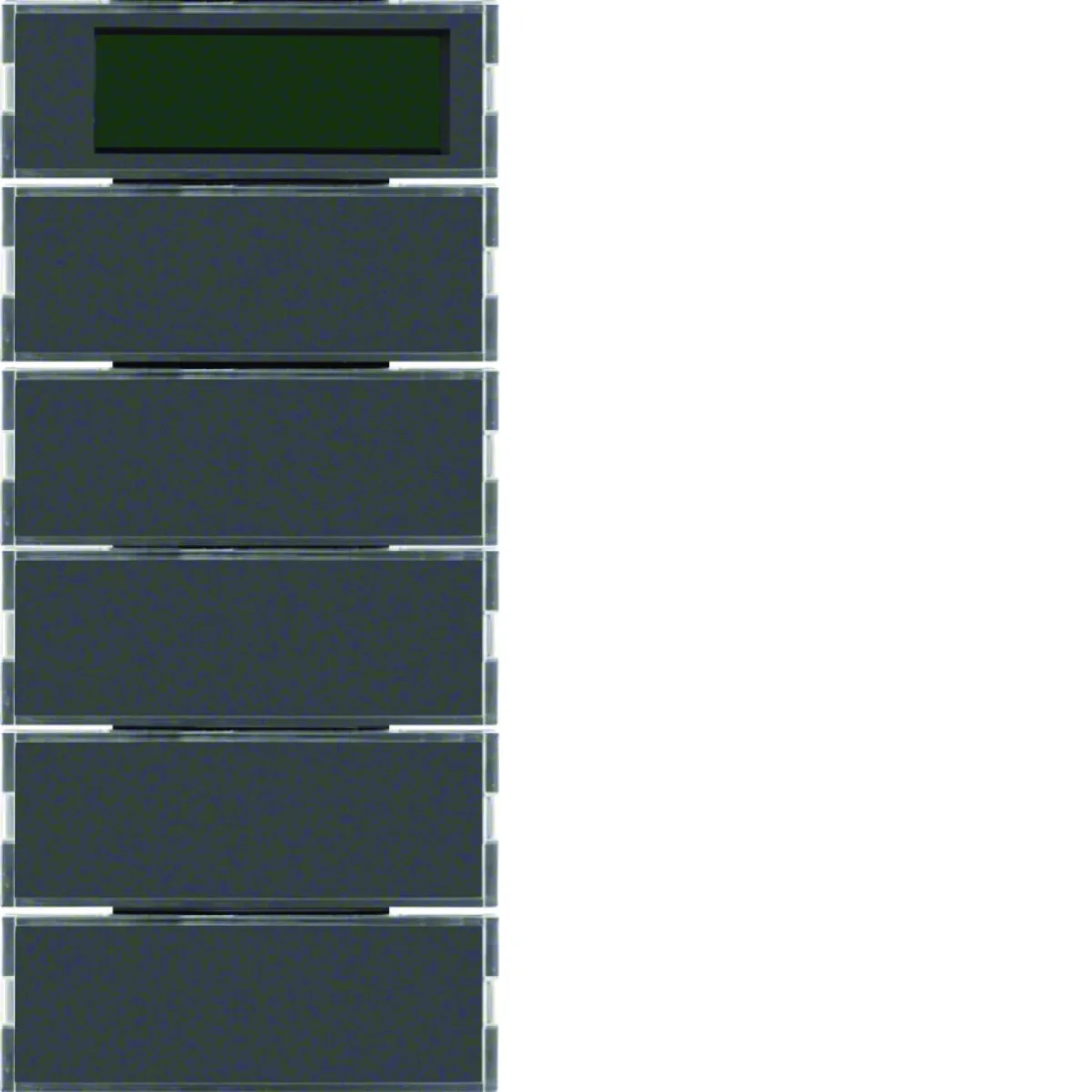

KNX SYSTEM S.1/B.3/B.7 5-gang button with temperature regulator and display for aluminum and anthracite frames 75665785

5-fold button with temperature regulator and display, KNX system series. Main design line: KNX - Berker S.1/B.3/B.7.

Functions

• regulator operating modes: comfort, standby, night and freeze/overheat protection
• for switching, touch, dimming, shutter and temperature controls
• with valve protection
• for timer control room temperature

Controls and indicators

• Micro-SDHC/SDXC Class 10 or UHS-1
< li> blind control configurable as short-long-short or long-short
• LCD display with symbols
• display of operating mode, regulator lock, indoor/outdoor temp., time (clock required)

Connections

• with key lock function

Measurements

• function to send 1 and 2 byte values for dimming, illuminance and temperature

LED control

• with white operation LED and 10 red status LEDs

Settings

• configurable presence button to extend the comfort mode
• configurable function display for the customer
• for plasterboard walls

Accessories

• for heating and/or cooling with/without an additional auxiliary source
• for continuous (PI) or bi-state control of up to 2 control circuits
• for individual single room temperature control
• with preset parameters for heating / cooling

Security

• telegram alarm after removal from bus port, 1 bit, 1 byte

Terms of use

• temperature measurement by internal sensor and/or external with value specification

Series characteristics:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.
