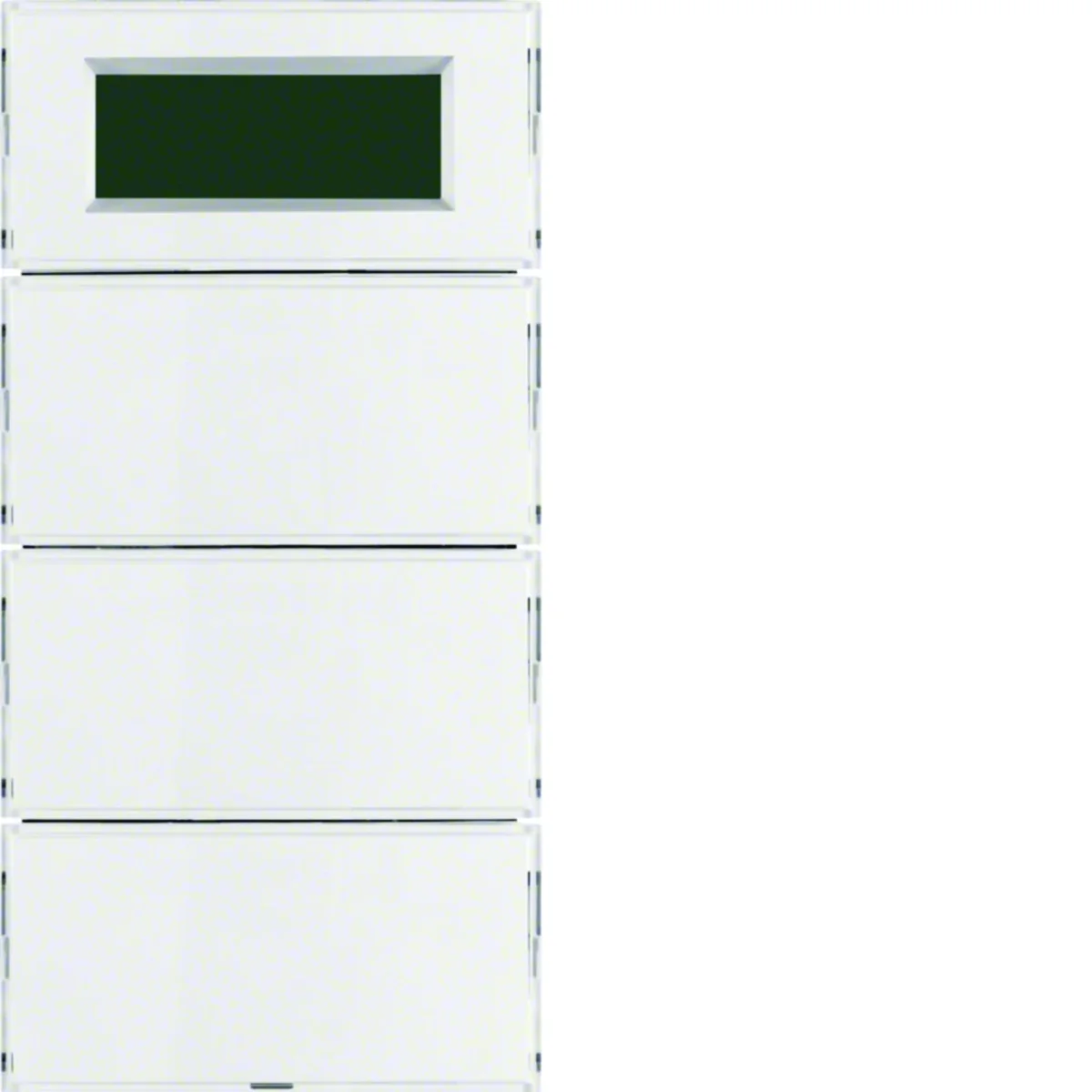

Triple button with temperature regulator and display, KNX system series. Main design line: KNX - Berker S.1/B.3/B.7.

Functions

regulator operating modes: comfort, standby, night and freeze/overheat protection
for switching, touch, dimming, shutter and temperature controls
with valve protection
for timer control room temperature

Controls and indicators

Micro-SDHC/SDXC Class 10 or UHS-1
LCD display with symbols
display of operating mode, regulator lock, indoor/outdoor temp., time (clock required)
with 2 extra display buttons

Calls

with key lock function< /li>

Measurements

function to send 1 and 2 byte values for dimming, illuminance and temperature

LED control

with white operation LED and 6 red status LEDs

Settings

configurable presence button to extend the comfort mode

configurable function display for the customer

for plasterboard walls

Accessories

for heating and/or cooling with/without additional additional source

for continuous (PI) or two-state control of max. 2 control circuits

for individual temperature control in a single room

with preset parameters for heating / cooling

Safety

alarm telegram after removal from the bus port, 1 bit, 1 byte

Terms of use

temperature measurement by internal and/or external sensor with value determination

Series characteristics:

The economic use of buildings is becoming more and more important especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Halogen free

NO
Material

Thermoplastic
Surface

Gloss
Level of security

IP20
Operating temperature range [°C]

from -5 to 45
PKWIU

27.12.31.0

Number of buttons

3
Installation

Flush-mounted
Family

KNX SYSTEM
Width [mm]

55.8
Surface finish

Natural

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
With anti-theft/dismantling protection

Yes
Number of actuation points

8
With LED indication

Yes
With display

Yes
Material quality

Thermoplastic
Surface finishing

Glossy
RAL-number (similar)

1013
With room temperature controller

Yes
Degree of protection (IP)

IP20

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Mounting method

Flush-mounted
With bus connection

No
Number of buttons

3
With label area

Yes
Material

Plastic
Surface protection

Untreated
Colour

White
Transparent

No
With IR sensor

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	32 pcs.	1024 pcs.
Weight (kg)	0,179	0,214	7,290	253,280
Width (m)	0,056	0,077	0,300	0,800
Length (m)	0,024	0,050	0,225	1,050
Depth (m)	0,111	0,154	0,400	1,200
