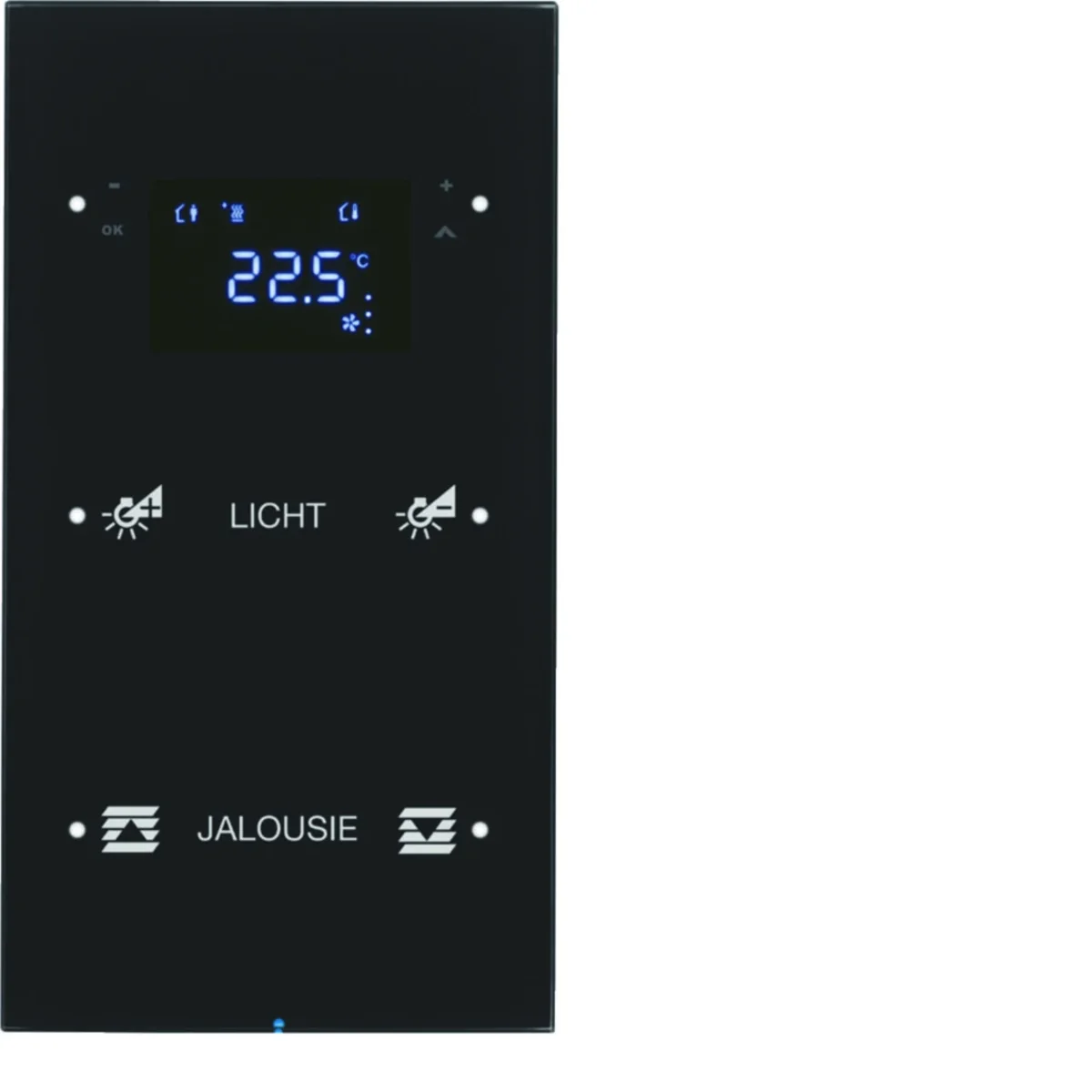

Touch sensor2-fold, with temperature regulator, configurable, KNX system series. Main design line: Berker R.3.

Functions

regulator operating modes: comfort, standby, night and protection against freezing/overheating< /li>
with valve protection
for switching, touch, dimming, blinds and temperature controls

Controls and indicators

multiple interface

LED display with symbols

Measurements
< ul>
function of sending 1 and 2 byte values for dimming, illuminance and temperature

LED control

z blue operation LED and 4 white status LEDs

Connection

with built-in bus port

bus connection via connection terminals

Equipment

for heating and/or cooling with/without additional auxiliary source

for individual temperature control in a single room

with pre-set parameters for heating / cooling

for continuous or two-stage control

Terms of use

additional connection for external temperature sensor

temperature measurement via internal temperature sensor or external communication object

Characteristics of the series:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Halogen free

NO
Color

Black
Installation

Flush-mounted
Family

KNX SYSTEM
Width [mm]

81
Operating temperature range [°C]

from -5 to 45
DC operating voltage [V]

21 - 32

Depth [mm]

23
Material

Glass
Surface

Gloss
Level of security

IP20
Height [mm]

152
Surface finish

Overprint
PKWIU

27.12.31.0

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
With anti-theft/dismantling protection

Yes
Number of actuation points

6
With LED indication

Yes
With display

Yes
Material quality

Other
Surface finishing

Glossy
RAL-number (similar)

9005
With room temperature controller

Yes
Degree of protection (IP)

IP20

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Mounting method

Flush-mounted
With bus connection

Yes
Number of buttons

0
With label area

No
Material

Glass
Surface protection

Other
Colour

Black
Transparent

No
With IR sensor

No
Min. depth of built-in installation box

16 mm

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	368 pcs.
Weight (kg)	0,341	0,411	176,248
Width (m)	0,081	0,125	0,800
Length (m)	0,023	0,090	1,500
Depth (m)	0,152	0,265	1,200
