KNX SYSTEM R.1 3-fold touch sensor configurable glass white 75143160

local index:
AIK353HAGE
Catalog No:
75143160
EAN code:
4011334383499
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 23
Color: White
Price:
817,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

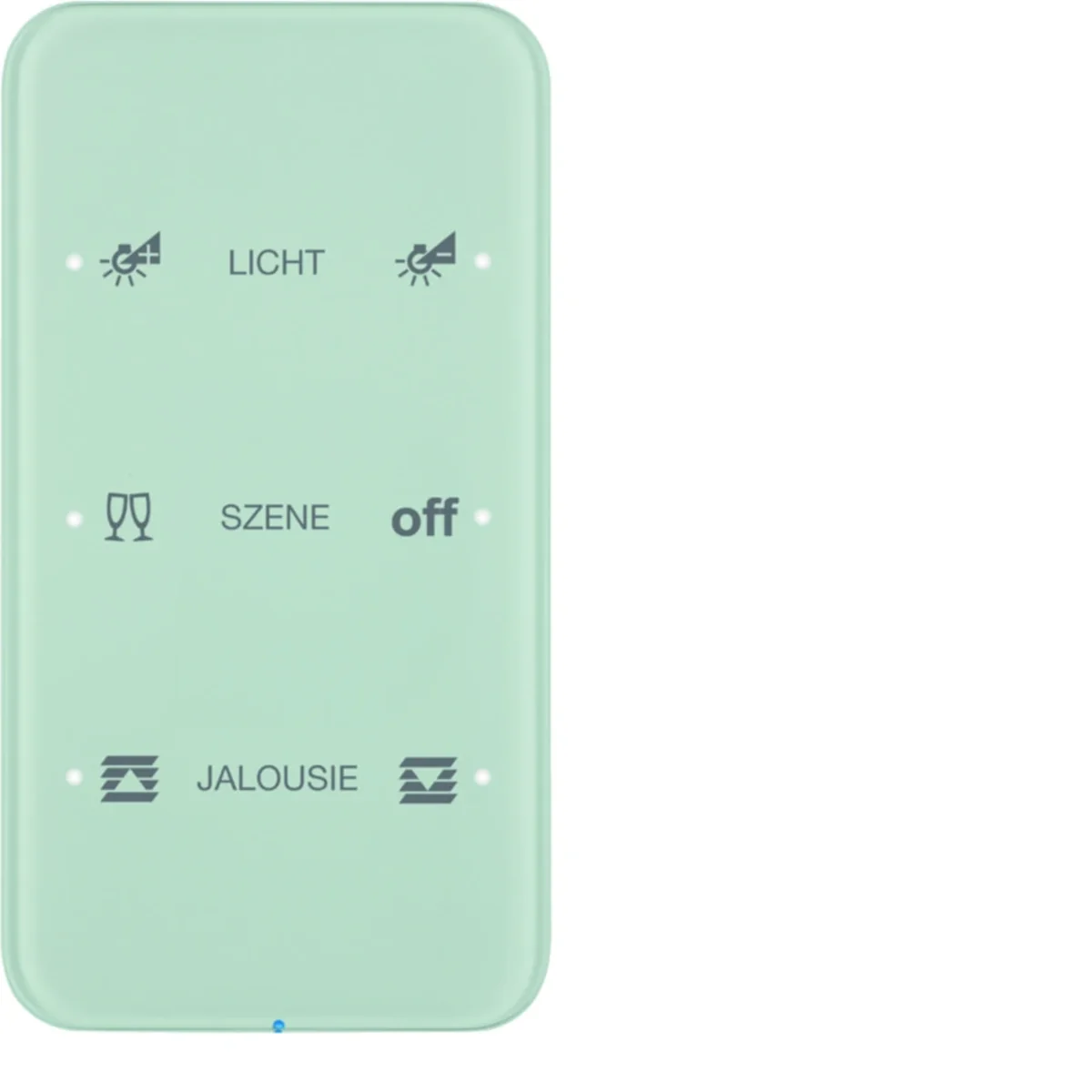

Touch sensor3-fold configurable, KNX system series. Main design line: Berker R.1.

Functions

  • functions: on/press, dimming and blinds control
  • the function of blocking the sensor surfaces, e.g. to clean the glass surface

Measurements

  • function of sending 1st and 2nd byte values for dimming, illuminance and temperature

LED control

  • with blue operation LED and 6 white status LEDs

Connection

  • with built-in bus port
  • bus connection via connection terminals

Terms of use

  • temperature measurement via internal temperature sensor or external communication object
  • integrated temperature sensor to work as an extension of the controller
  • additional connection for an external temperature sensor

Series characteristics:

The economic use of buildings is becoming increasingly important, especially in terms of functionality and energy efficiency . When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Color
    White
  • Installation
    Flush-mounted
  • Family
    KNX SYSTEM
  • Width [mm]
    81
  • Operating temperature range [°C]
    from -5 to 45
  • DC operating voltage [V]
    21 - 32
  • Depth [mm]
    23
  • Material
    Glass
  • Surface
    Gloss
  • Level of security
    IP20
  • Height [mm]
    152
  • Surface finish
    Lacquered
  • PKWIU
    27.12.31.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    6
  • With LED indication
    Yes
  • With display
    Yes
  • Material quality
    Other
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    Yes
  • Number of buttons
    0
  • With label area
    No
  • Material
    Glass
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    No
  • With IR sensor
    No
  • Min. depth of built-in installation box
    16 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 368 pcs.
Weight (kg) 0,303 0,373 162,264
Width (m) 0,081 0,124 0,800
Length (m) 0,023 0,090 1,500
Depth (m) 0,152 0,265 1,200
