el12 Automation Relays and drivers Temperature sensors and controllers KNX system Q.x Temperature controller without manual control with universal interface, with integrated BCU, anthracite, velvet

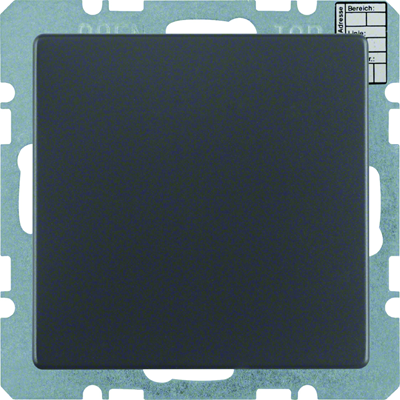

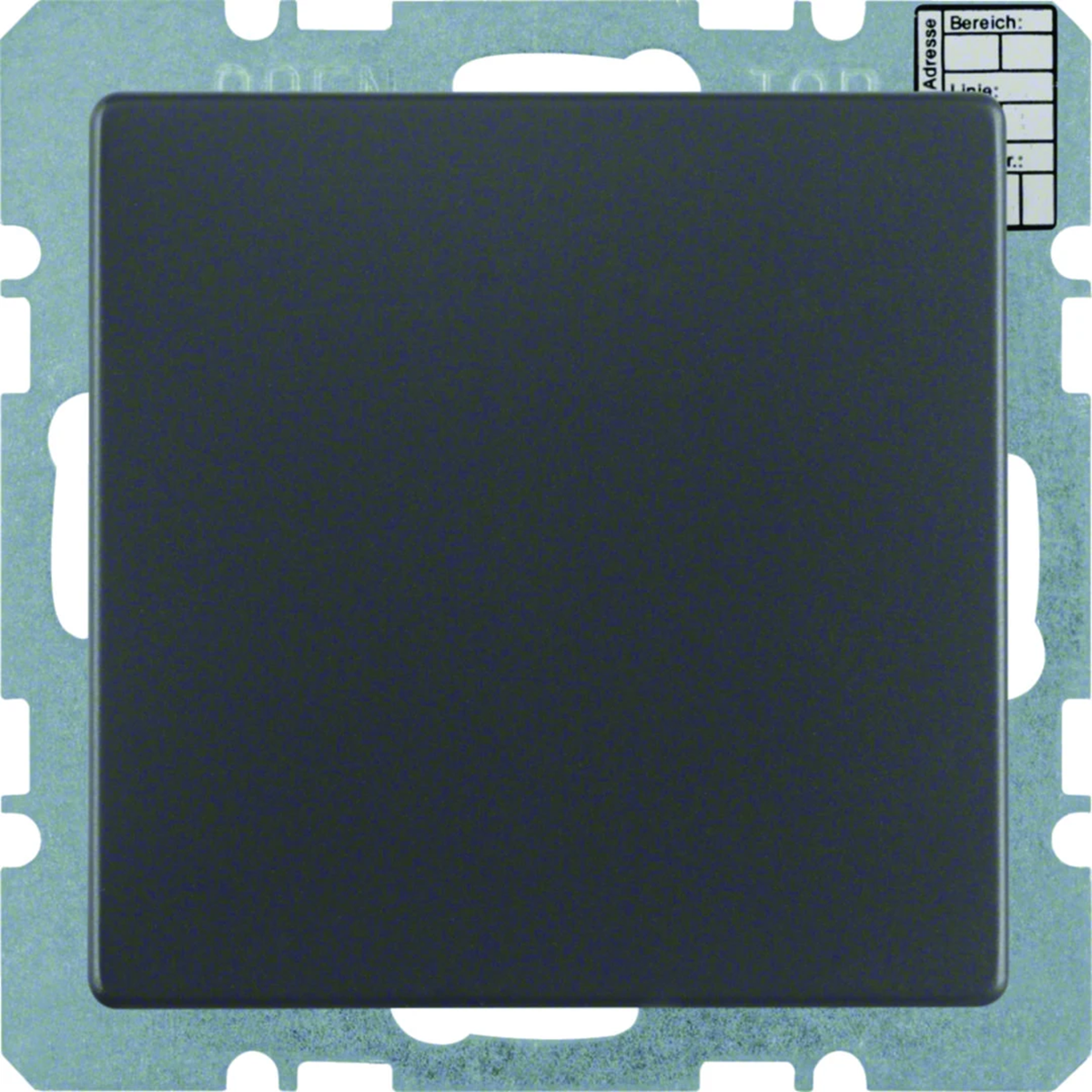

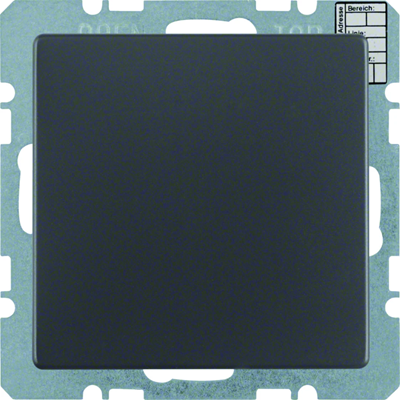

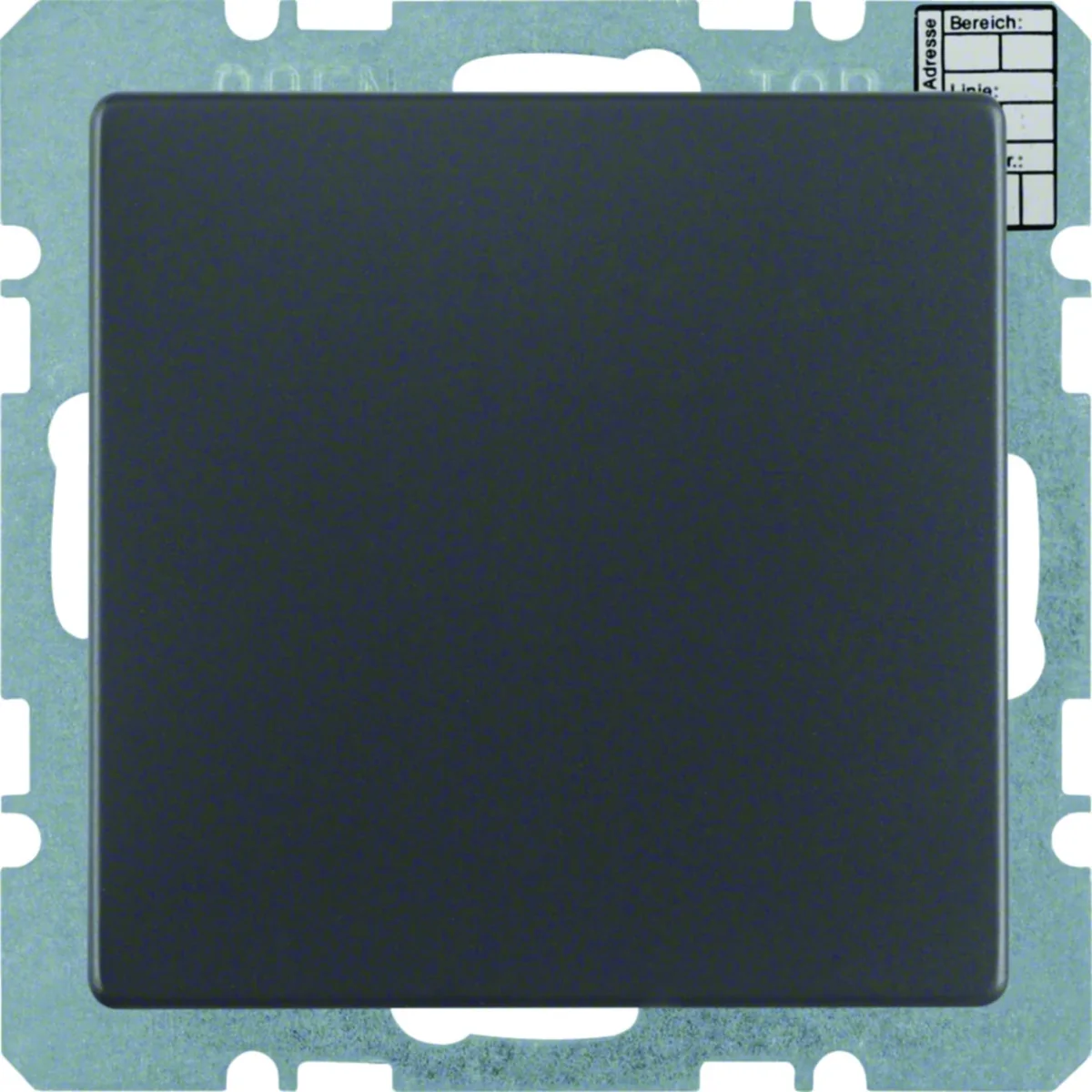

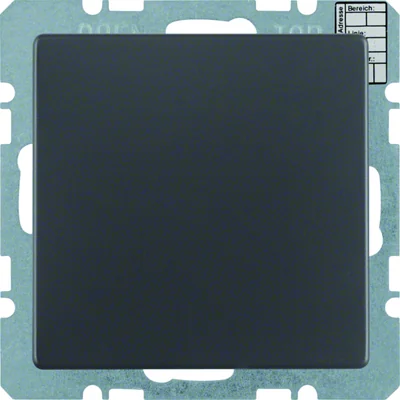

KNX system Q.x Temperature controller without manual control with universal interface, with integrated BCU, anthracite, velvet

Click on the photo to enlarge

KNX system Q.x Temperature controller without manual control with universal interface, with integrated BCU, anthracite, velvet
HAGER

KNX system Q.x Temperature controller without manual control with universal interface, with integrated BCU, anthracite, velvet 75441226

local index:
APT005HAGE
Catalog No:
75441226
EAN code:
4011334384441
Price:
459,84 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

KNX system Q.x Temperature controller without manual control with universal interface, with integrated BCU, anthracite, velvet
Print the product sheet Report an error

Technical data

  • Halogen free
    NO
  • Surface
    Velvet
  • Surface finish
    Lacquered
  • Wire cross-section (cord) [mm²]
    0.3 - 1
  • Material
    Plastic Metal
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • Conductor cross-section (wire) [mm²]
    1.5

Other technical data

  • Bus system KNX
    yes
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Radio frequent bidirectional
    no
  • Mounting method
    Flush-mounted
  • With anti-theft/dismantling protection
    yes
  • With display
    no
  • Material
    Other
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    no
  • Manual set point setting
    no
  • Parallel-service possible
    no
  • With bus connection
    yes
  • Min. depth of built-in installation box
    26 mm
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    None
  • Assembly arrangement
    Basic element with central cover plate
  • With local operation
    no
  • With LED indication
    no
  • Liczba wejść binarnych
    4
  • Material quality
    Other
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Czujnik zewnętrzny
    no
  • Presence button
    no
  • Degree of protection (IP)
    IP20
  • Class of the temperature control
    IV
