KNX SYSTEM K.1/K.5 Double button with temperature regulator and display for white and cream frames 75662770

local index:
AIK210HAGE
Catalog No:
75662770
EAN code:
4011334283447
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 2
Color: White
Price:
492,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

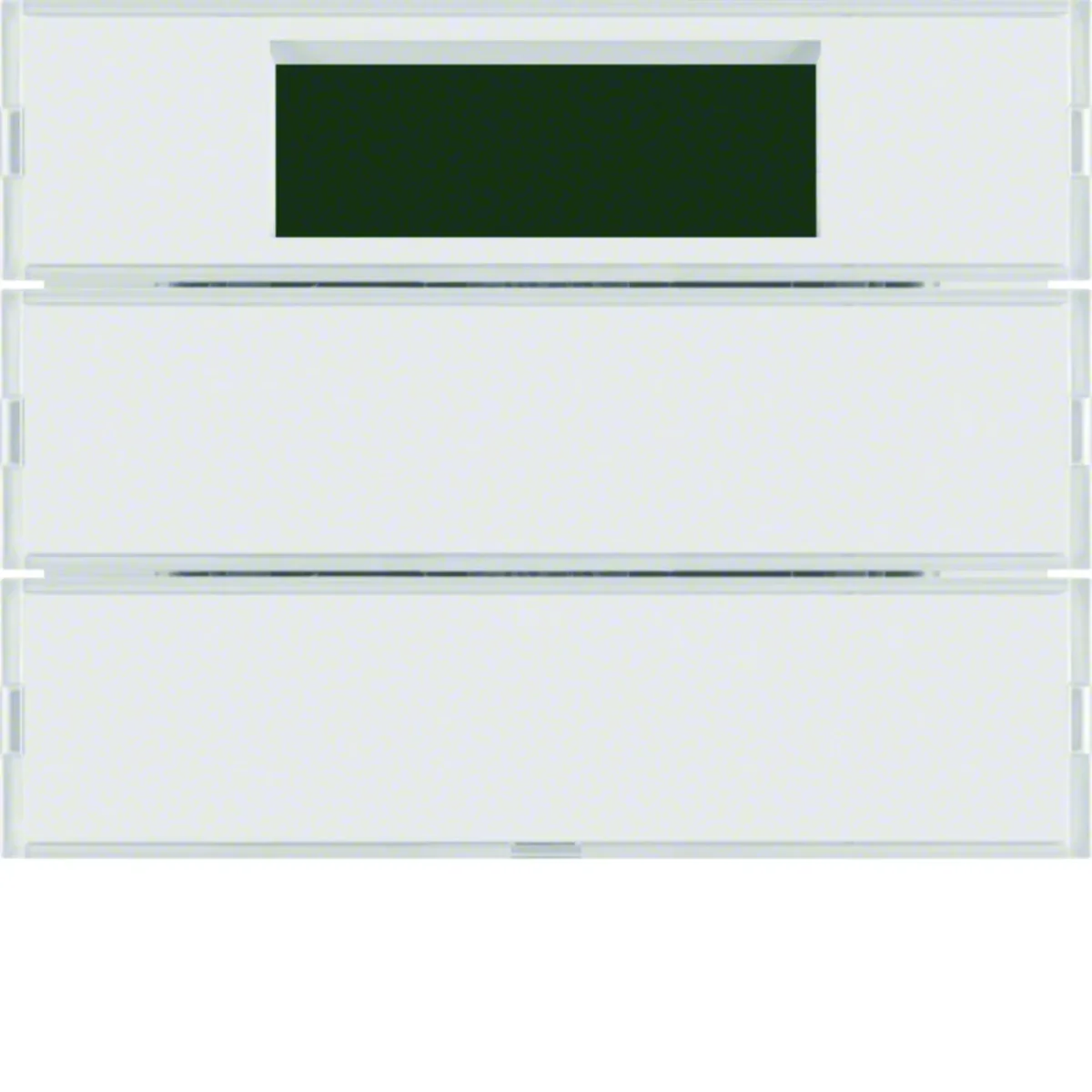

Double button with temperature regulator and display, for white frames, KNX system series. Main design line: Berker K.1/K.5.

Functions

  • regulator operating modes: comfort, standby, night and protection against freeze/overheat
  • for switching, touch, dimming, blinds and temperature controls
  • for room temperature timer control

Components controls and indicators

  • Micro-SDHC/SDXC Class 10 or UHS-1
  • blind control configurable as short-long-short or long-short
  • LCD display with symbols
  • display of operating mode, regulator lock, indoor/outdoor temperature, time (clock required)

Settings

  • configurable presence button to extend the comfort mode
  • configurable function display for the customer

Characteristics of the series:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Color
    White
  • Installation
    Flush-mounted
  • Family
    KNX SYSTEM
  • Width [mm]
    70.9
  • Surface finish
    Natural
  • PKWIU
    27.12.31.0
  • Number of buttons
    2
  • Material
    Thermoplastic
  • Surface
    Gloss
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    Snow white

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    6
  • With LED indication
    Yes
  • With display
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    2
  • With label area
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 32 pcs. 1024 pcs.
Weight (kg) 0,038 0,198 6,682 233,824
Width (m) 0,071 0,077 0,300 0,800
Length (m) 0,035 0,050 0,225 1,050
Depth (m) 0,071 0,154 0,400 1,200
