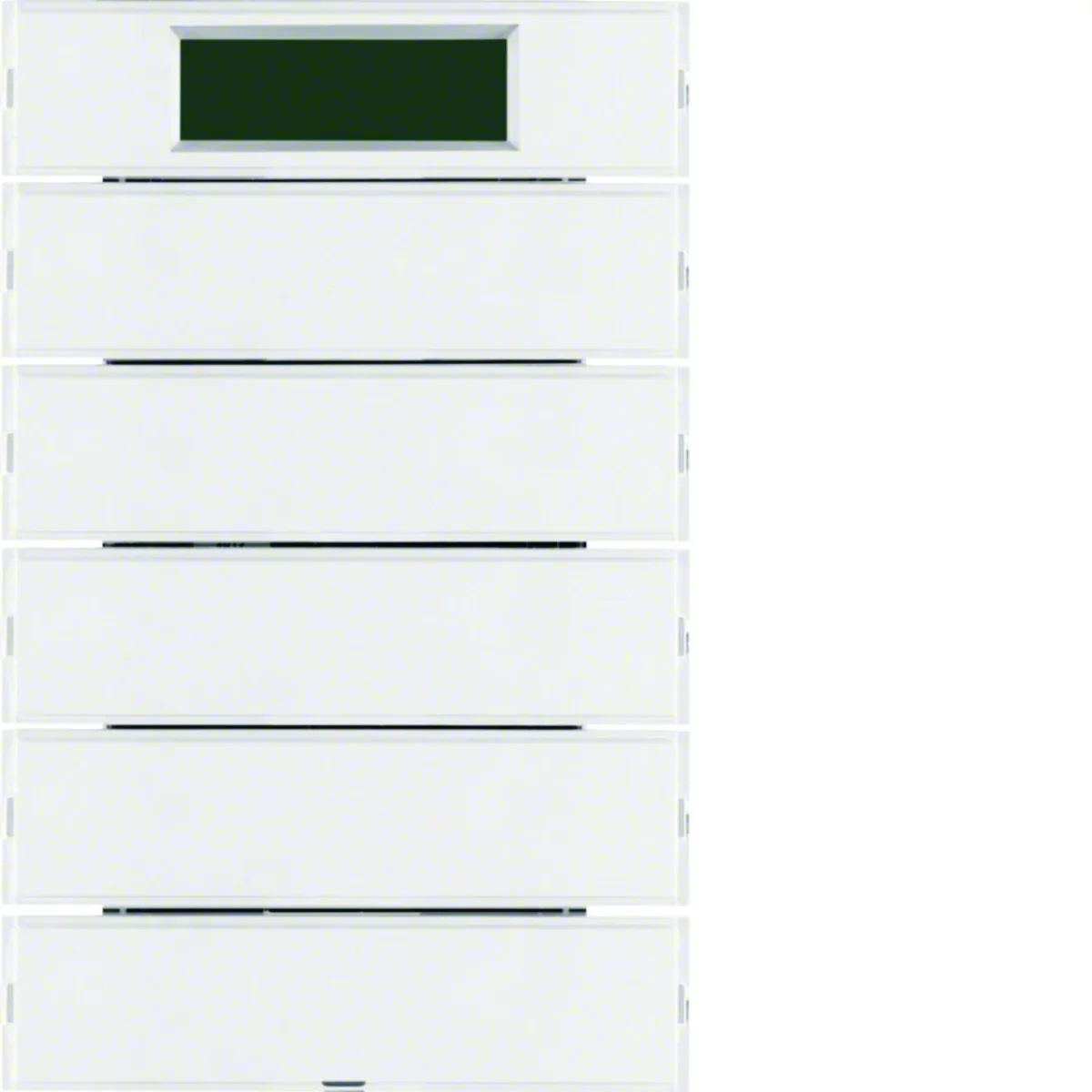

KNX SYSTEM K.1 5-gang button with temperature regulator and display for white and cream frames 75665770

5-fold button with temperature regulator and display, KNX system series. Main design line: KNX - Berker K.1.

Functions

• regulator operating modes: comfort, standby, night and frost protection/ overheating
• for switching, touch, dimming, blinds and temperature controls
• with valve protection
• for room temperature timer control

Controls and Indicators

• Micro-SDHC/SDXC Class 10 or UHS-1
• configurable blind control as short- long-short or long-short
• LCD display with symbols
• display of operating mode, controller lockout, indoor/outdoor temperature, time (clock required)

Connections

• with key lock function

Measurement

• function of sending 1 and 2 byte values for dimming, illuminance and temperature

LED control

< li> with white operation LED and 10 red status LEDs

Settings

• configurable presence button to extend comfort mode< /li>
• configurable display of functions for the customer
• for plasterboard walls

Equipment

< li> for heating and/or cooling with/without an additional additional source
• for continuous (PI) or bi-state control of up to 2 control circuits
• for individual temperature control in a single room
• with pre-set parameters for heating / cooling

Security

• alarm telegram after removal from bus port, 1 bit, 1 byte

Terms of use

• temperature measurement by internal and/or external sensor with value determination

Characteristics of the series:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.
