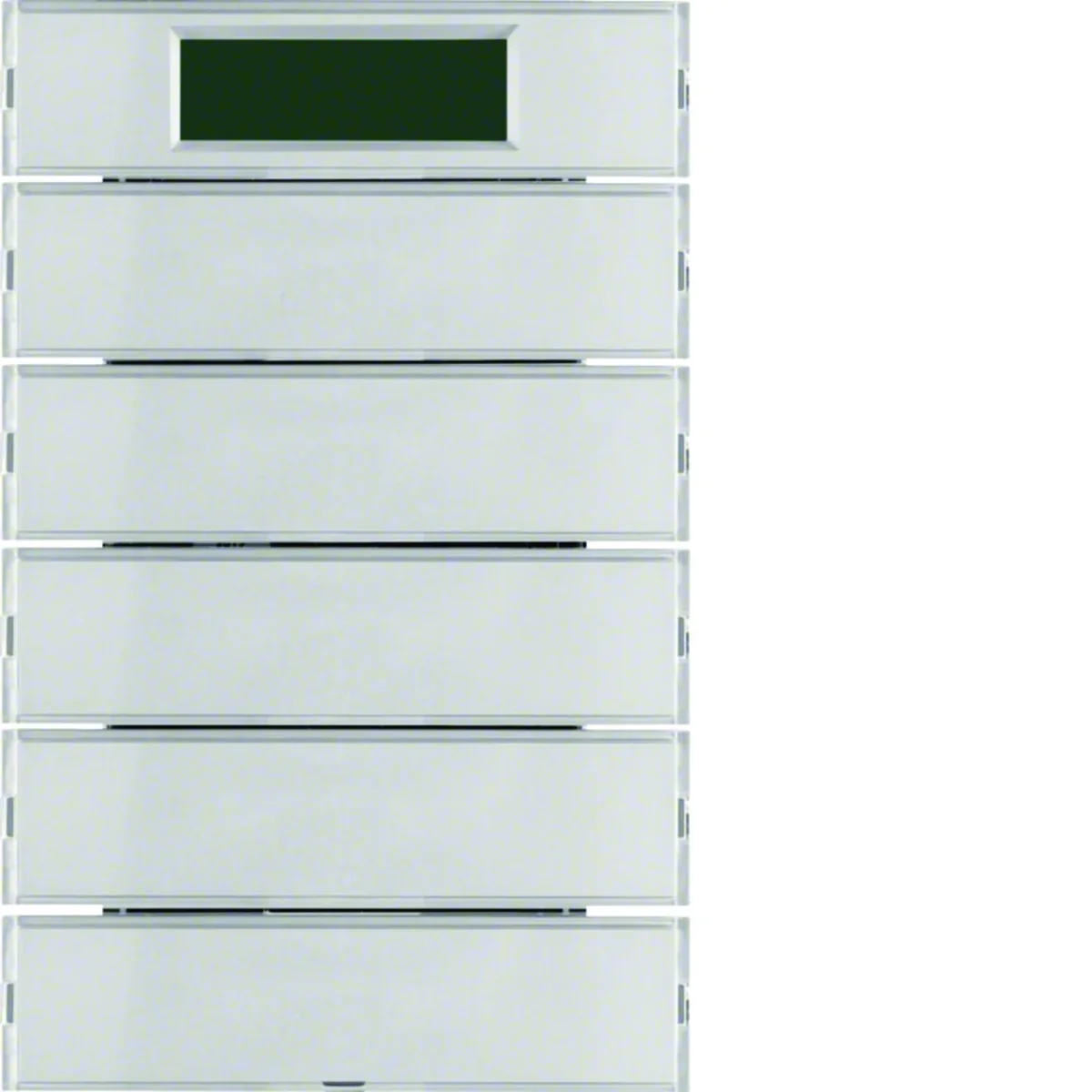

KNX SYSTEM K.1 5-gang button with temperature regulator and aluminum display 75665774

local index:
AIK243HAGE
Catalog No:
75665774
EAN code:
4011334303619
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 5
Color: Silver
Price:
773,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

5-fold button with temperature regulator and display, KNX system series. Main design line: KNX - Berker K.1.

Functions

  • regulator operating modes: comfort, standby, night and frost protection/ overheating
  • for switching, touch, dimming, blinds and temperature controls
  • with valve protection
  • for room temperature timer control
  • Controls and Indicators

    • Micro-SDHC/SDXC Class 10 or UHS-1
    • configurable blind control as short- long-short or long-short
    • LCD display with symbols
    • display of operating mode, controller lockout, indoor/outdoor temperature, time (clock required)

    Connections

    • with key lock function

    Measurement

    • function of sending 1 and 2 byte values for dimming, illuminance and temperature

    LED control

      < li> with white operation LED and 10 red status LEDs

    Settings

    • configurable presence button to extend comfort mode< /li>
    • configurable display of functions for the customer
    • for plasterboard walls

    Equipment

      < li> for heating and/or cooling with/without an additional additional source
    • for continuous (PI) or bi-state control of up to 2 control circuits
    • for individual temperature control in a single room
    • with pre-set parameters for heating / cooling

    Security

    • alarm telegram after removal from bus port, 1 bit, 1 byte

    Terms of use

    • temperature measurement by internal and/or external sensor with value determination

    Characteristics of the series:

    The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Color
    Silver
  • Installation
    Flush-mounted
  • Family
    KNX SYSTEM
  • Width [mm]
    70.9
  • Surface finish
    Natural
  • PKWIU
    27.12.31.0
  • Number of buttons
    5
  • Material
    Thermoplastic
  • Surface
    Matt
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    Aluminum

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    12
  • With LED indication
    Yes
  • With display
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    5
  • With label area
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Aluminium
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 32 pcs. 1024 pcs.
Weight (kg) 0,196 0,229 7,834 270,688
Width (m) 0,071 0,077 0,300 0,800
Length (m) 0,035 0,050 0,225 1,050
Depth (m) 0,071 0,154 0,400 1,200
