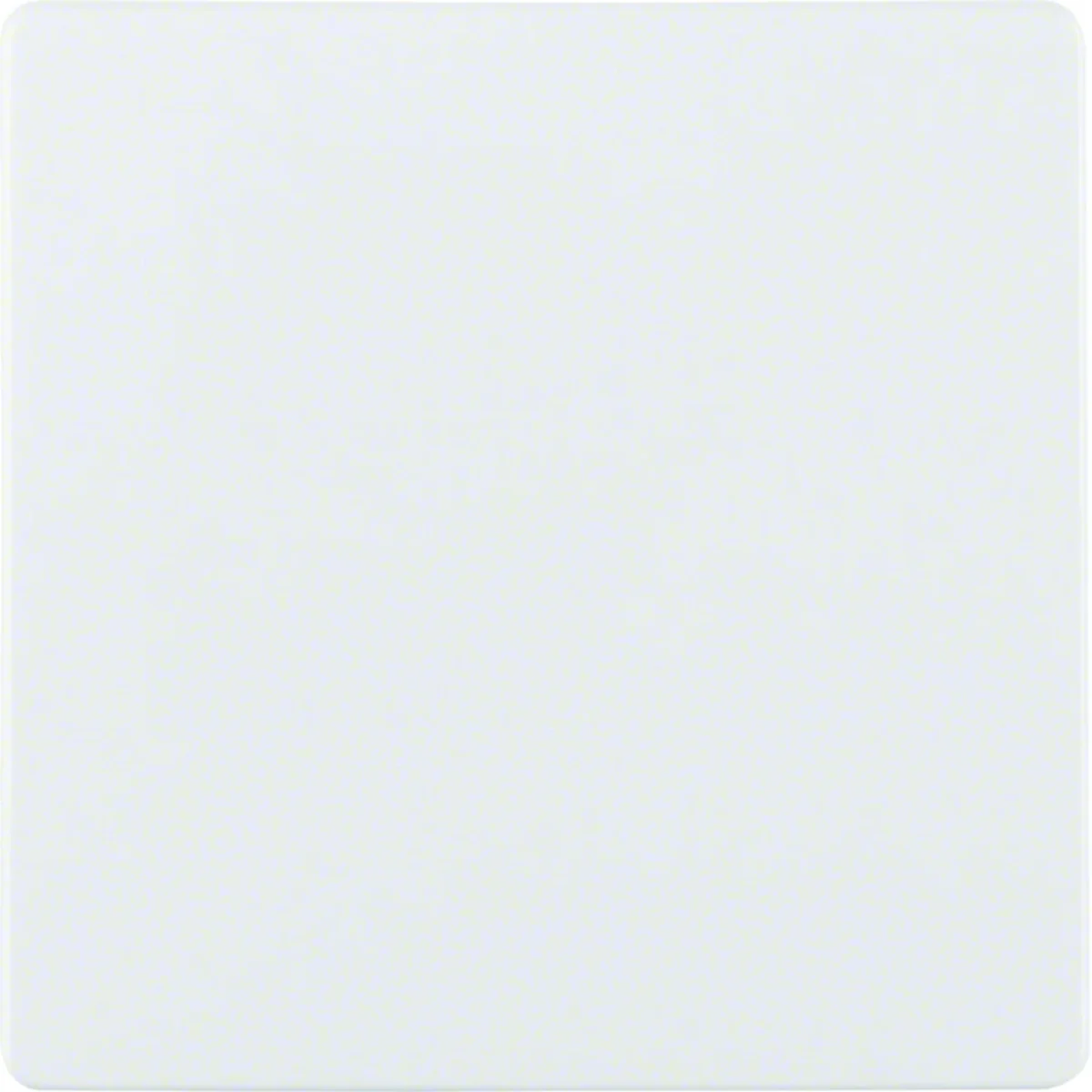

Central plate for connecting sensors, KNX system series.

e.g. for PT100 temperature sensor

Characteristics of the series:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Material

Thermoplastic
PKWIU

27.12.40.0

Family

KNX SYSTEM

Other technical data

Model

Other
Scannable symbol/barrier free

No
Suitable for touch sensor connector for bus system

No
Monitoring window/light outlet

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
With label area

No
Suitable for degree of protection (IP)

IP20

Imprint/indication

Bez nadruku
Utilization

Other
Type of fastening

Clamp mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9010
With exchangeable lens/symbol

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	86 pcs.	2752 pcs.
Weight (kg)	0,011	0,022	2,287	93,185
Width (m)	0,051	0,083	0,300	0,800
Length (m)	0,024	0,033	0,225	1,050
Depth (m)	0,051	0,083	0,400	1,200
